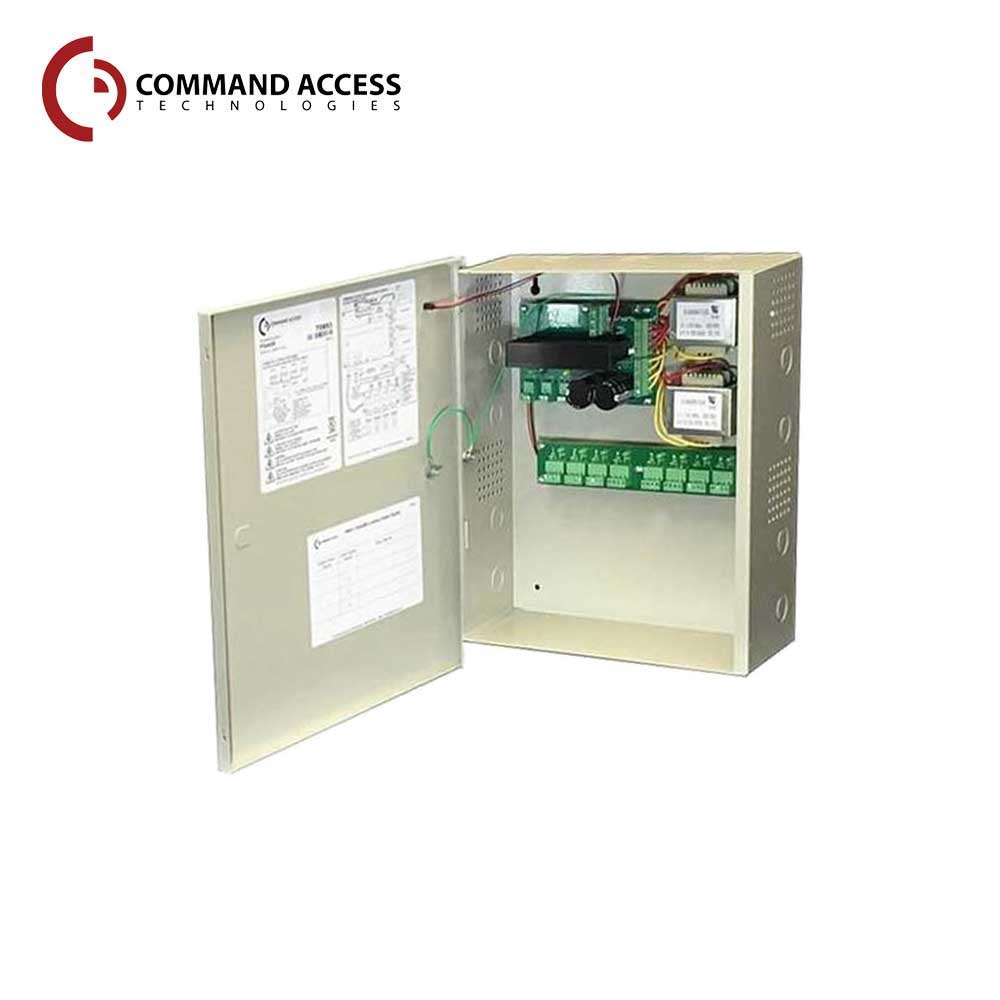

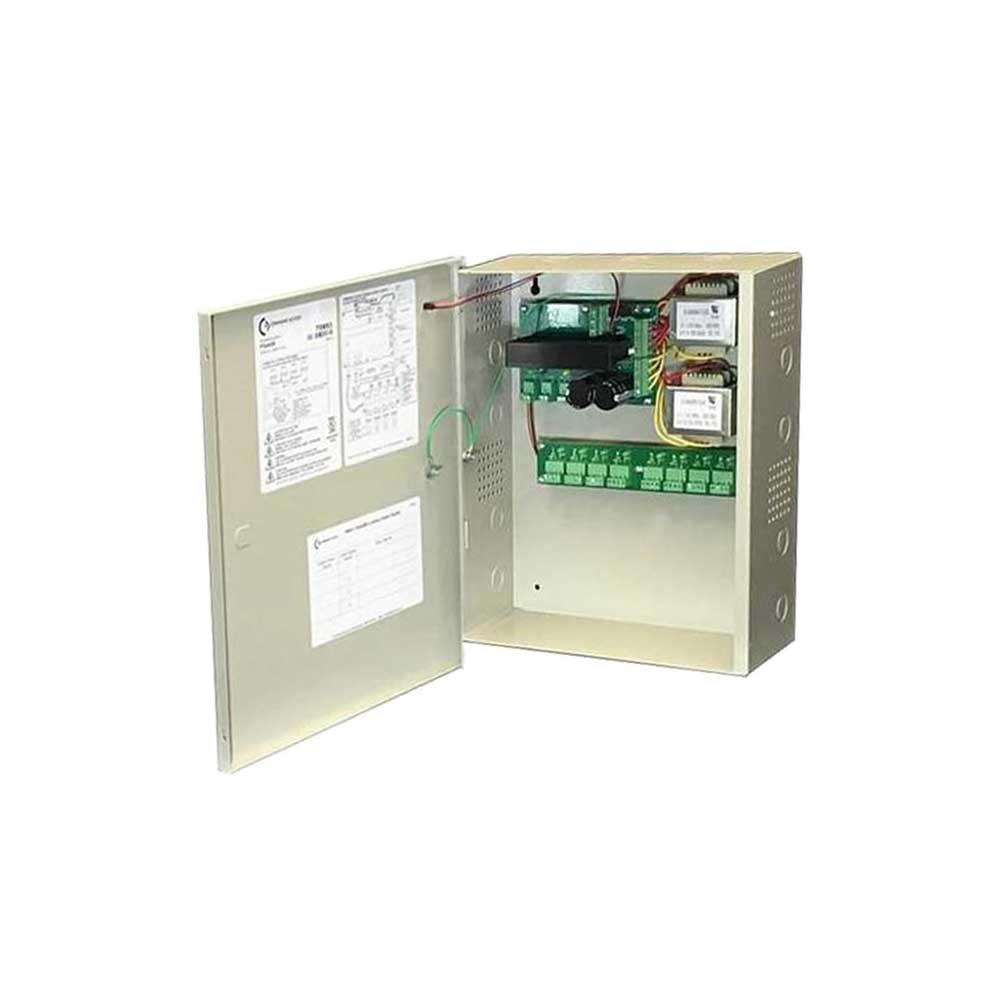

PS480 - 110-120VAC input power supplies that deliver (4) amps @ 24VDC to (4) or (8) PTC fused outputs. (4) or (8) solid-state input triggers, protects system relays from shorts, grounds and surges. Its linear design makes it a perfect match for solenoid & motor driven exit devices, electric locks, electric strikes, and mag locks.

• Built to run up to 4 or 8 locks, exit trim & lp motor / solenoid kits
• Robust solid-state outputs - Protects system relays
• Interruption free battery back-up
• Built to last in the usa

LED���s:

• Red = A/C Power indicator
• Green = D/C Output indicator
• Orange = Battery Output Indicator

Features & Benefits:

• Linear design insures ample inrush/ hold current for latch retraction
• Door mounted LED Power Indicator
• Easy to remove euro connectors

Listings:

• UL294 6th Edition

Mechanical Details:

• Enclosure dimensions: PS440B (13��� W x 15.5��� Hx 5��� D); PS480B (13��� W x 15.5��� H x 5��� D).
• 1/2��� & 3/4��� knockouts on all sides
• Hinge-less removable cover; Cam lock not provided
• PS440/480B accommodates (2) 12VDC 7AH batteries
• Product Weight: PS440/480B - 14 lbs
• Shipment Weight: PS440/480B - 15 lbs

Specifications:

Download:

• Installation Instruction
