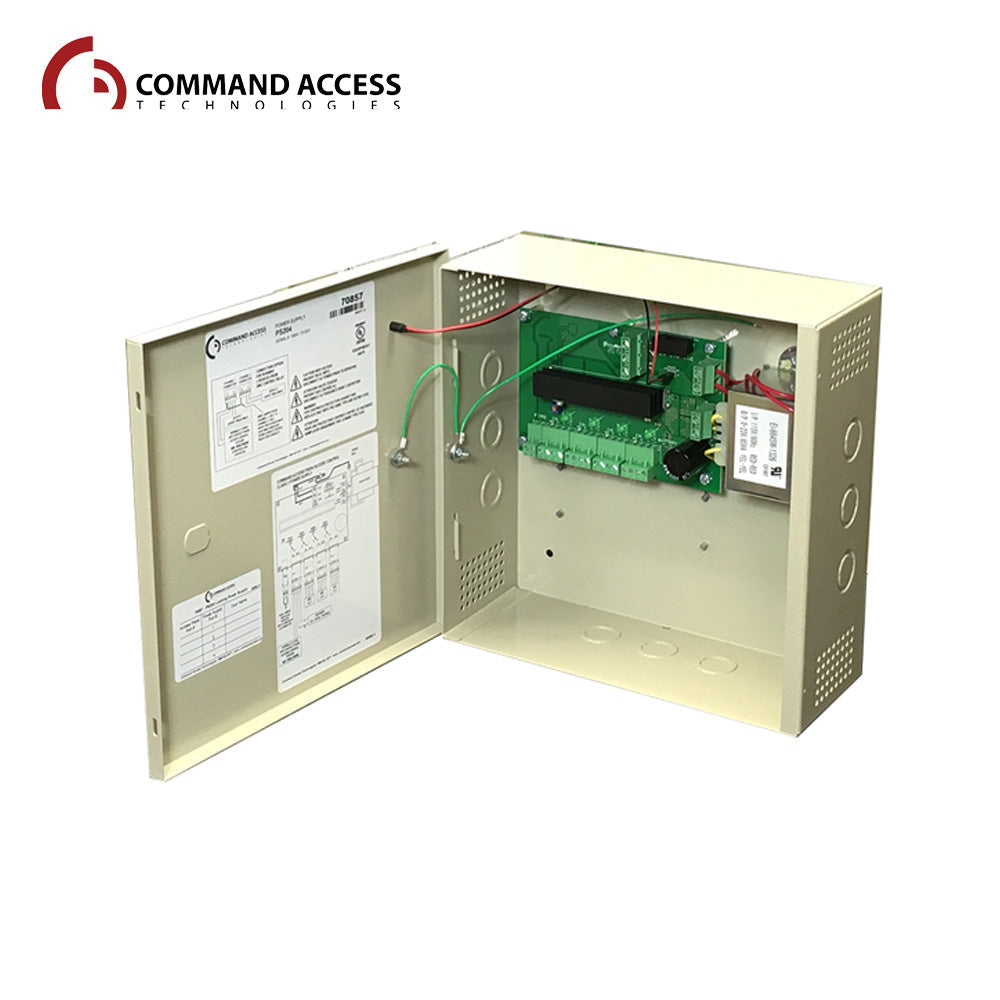

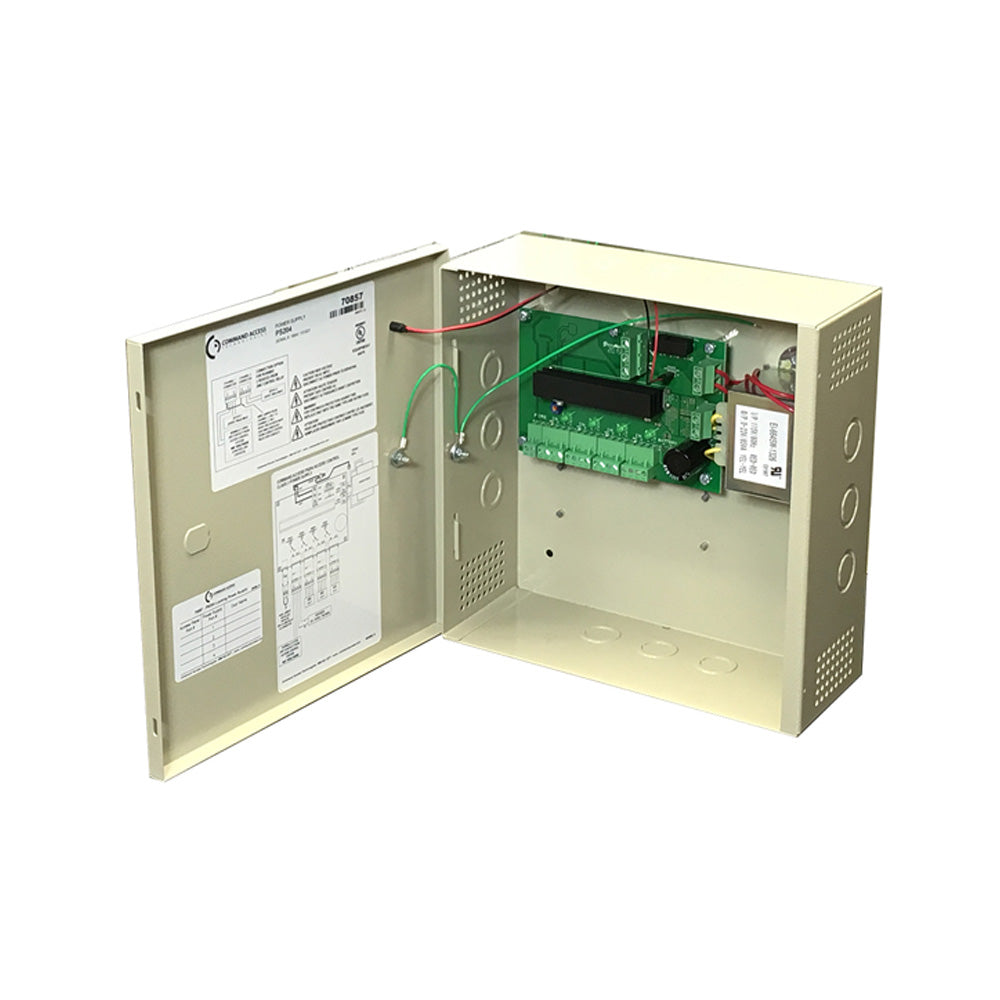

Command Access - PS204 - UL 6E/CSA Linear with 4-I/0 Power Supply without Battery Backup

Command Access - PS204 - UL 6E/CSA Linear with 4-I/0 Power Supply without Battery Backup

PS204 - 110-120VAC input power supplies that deliver (2) amps @ 24VDC to (4) PTC fused outputs. (4) solid-state input triggers, protects system relays from shorts, grounds and surges. Its linear design makes it a perfect match for electric locks, motor driven exit devices, electric strikes, and mag locks.

• Built to run up to 4 locks, exit trim & lp motor kits
• Robust solid-state outputs - Protects system relays
• Interruption free battery back-up
• Built to last in the usa

LED���s:

• Red = A/C Power indicator
• Green = D/C Output indicator
• Orange = Battery Output Indicator

Features & Benefits:

• Linear design insures ample inrush/ hold current for latch retraction
• Door mounted LED Power Indicator
• Easy to remove euro connectors
• Intelligent short circuit detection

Listings:

• UL294 6th Edition

Mechanical Details:

• Enclosure dimensions: PS204 (11��� W x 11��� H x 4��� D). PS204B (13��� W x 15.5��� H x 5��� D)..
• 1/2��� & 3/4��� knockouts on all sides
• Hinge-less removable cover; Cam lock not provided
• PS204B accommodates (2) 12VDC 7AH batteries
• Product Weight: PS204 - 10lbs; PS204B - 14 lbs
• Shipment Weight: PS204 - 11lbs; PS204B - 15 lbs

Specifications:

Download:

• Installation Instruction
