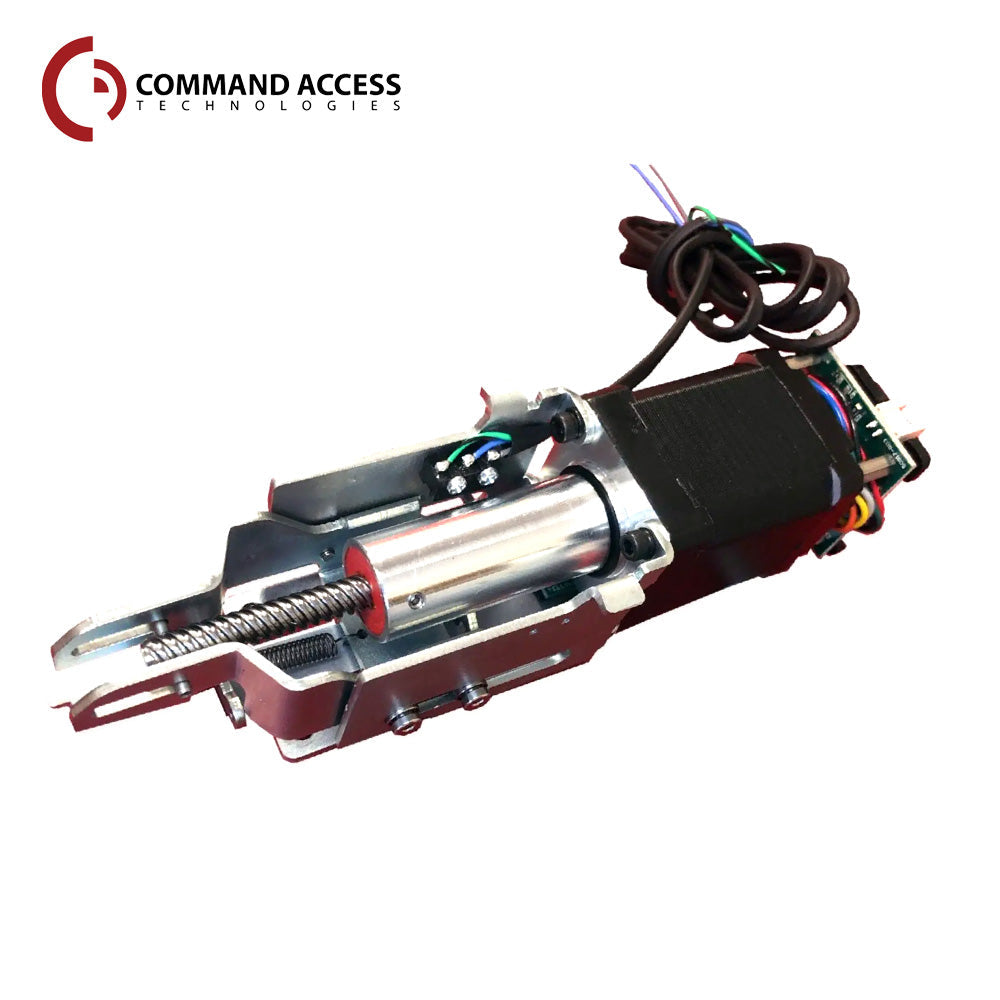

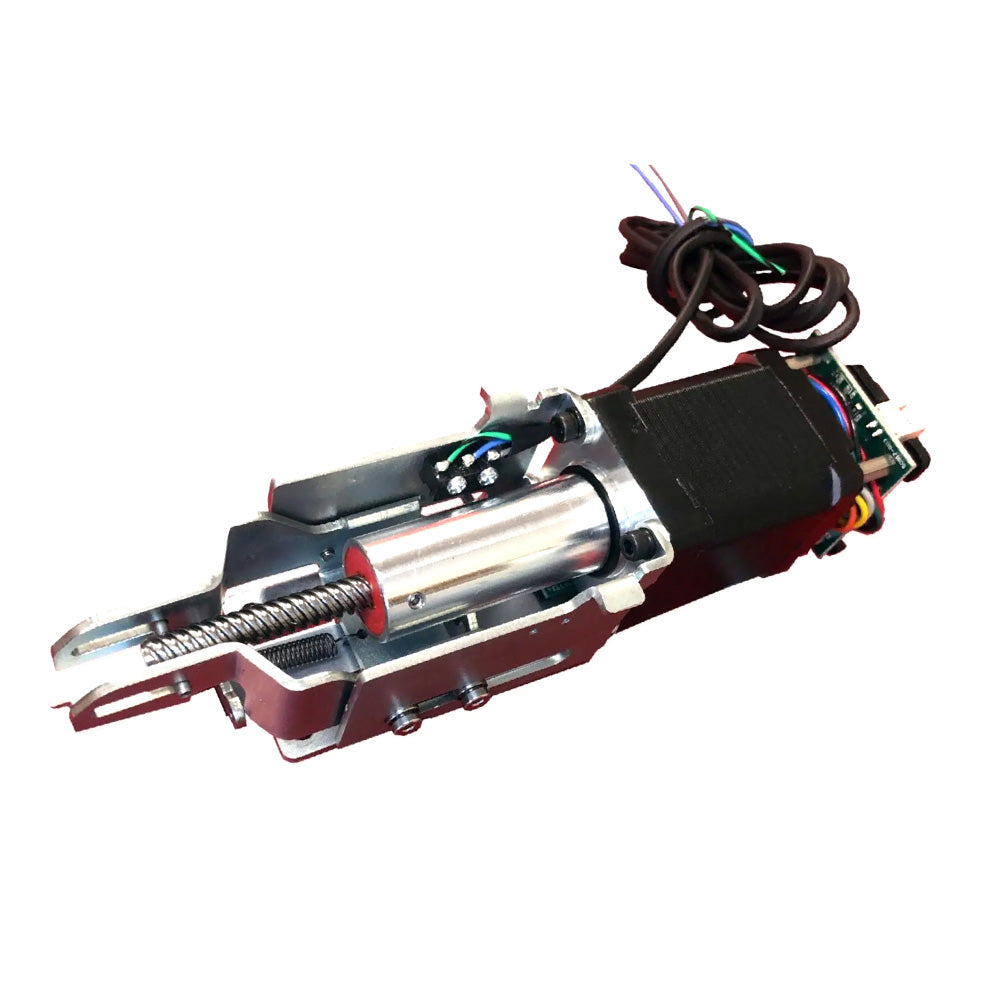

The MLRK1-VD is a practical and cost-effective way to convert a mechanical Von Duprin series device to a motorized latch retraction device, while maintaining the listing. Our easy-to-install motor-driven kit installs in moments & includes a built-in request to exit (US ONLY). It is equipped with push-to-set (PTS) technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, the VD features an updated MM5 module, energy conscious while still being capable of getting tough jobs done

• Works On All Von Duprin 99/98 & 35/33 Series Devices
• Fast, Quite, Smooth &Amp; Strong!
• Includes Built-In Request To Exit On Board
• Patent Pending Push To Set (Pts) Technology
• Ul Listed
• 3 Year ���No Hassle��� Warranty

Features:

• Next Generation MM5 Smart Module: On board diagnostics
• with audible feedback for adjustment and power issues
• ���PTS���: 2 second electronic adjustment for easy post installation adjustment. Simplified further with a push button to engage programming & shorter program sequence.
• Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
• Electric dogging rated for continuous duty - Auto reengage if push pad is pulled from dogged position
• Up to 300��� wire run with 2-18ga wire - Long wire runs
• provides installer with convenience of placing the Command locking hardware power supply in a centralized location;i.e. the same closet as the access control panel
• 6��� cable with robust Quick Molex Connector for MM5 module to 6��� Power lead to easily connect to power supply lead.

Voltage:

• Voltage range ��� 24 to 25.3 VDC
• System protection ��� unit shutdown when voltage exceeds 28VDC
• Standard - Average Current Peak: 1.3A, Average Current Hold: 215mA
• High Torque - Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment ��� approx. 1/4���

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• 36���/ 48��� - 6.5��� Filler Plate Needed

Accessories:

• Request to Exit (VDREXKIT-ED) - Built-in to all Units or order an additional for double REX applications
• Latchbolt Monitor (VDLBMKIT-ED) - Field or Factory install
• Low Current versions of REX or LBM available, add LC to part #

Download:

• Installation Instruction
