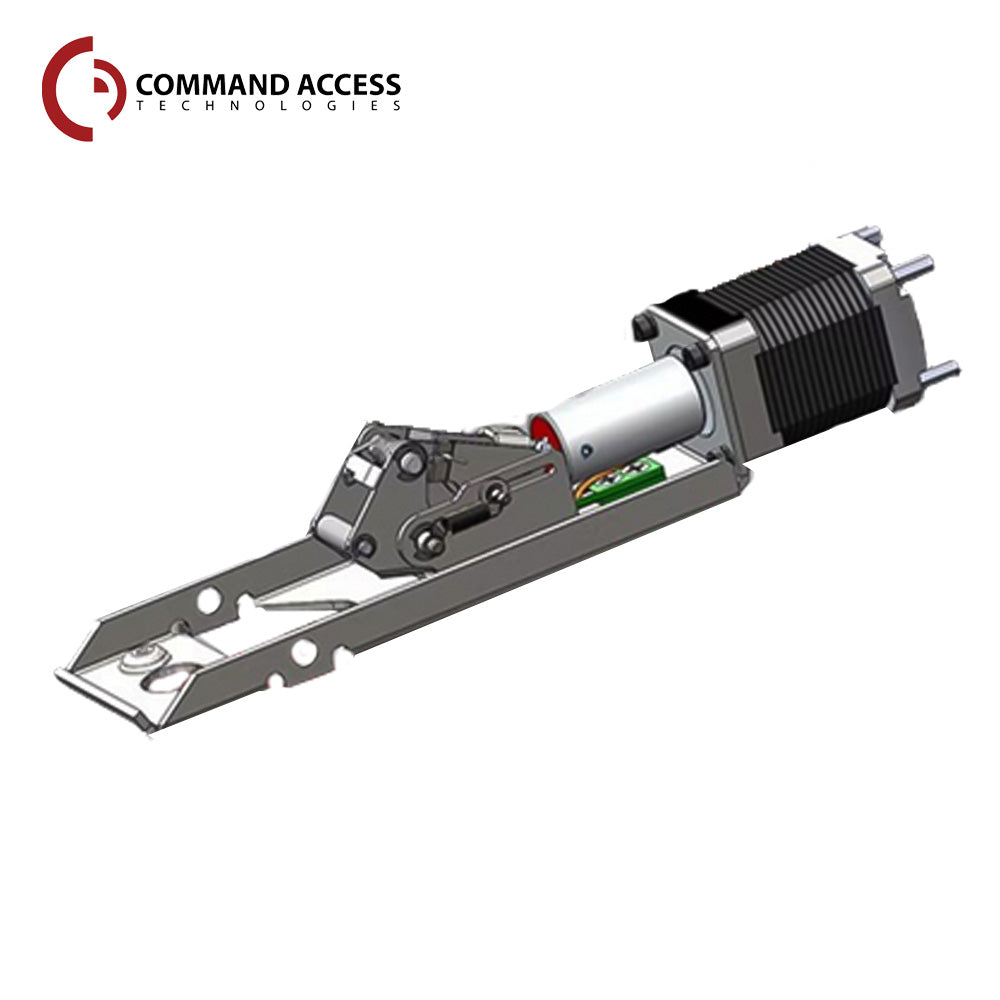

The MLRK1-DOR is a practical and cost-effective way to convert a mechanical Dorma series device to an electrified latch pullback device, while maintaining the UL listing. Our easy-to-install motordriven kit installs in moments. It is equipped with PTS technology allowing for an easy postinstallation adjustment of the latch/latches. Last but not least, it features an updated motor module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done!

• ���PTS��� Push to set technology
• Powerfully Built & Easy to Install!
• Fast, quiet, smooth
• True Electronic Dogging - Full push pad retraction
• UL Listed
• Retrofits Dorex 9500 series exit devices

Features:

• MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• ���PTS���: 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to ���High Torque��� mode
• Up to 300��� wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8��� cable with Quick Connect for MM4S module to easily connect to power supply lead
• Optional Request-to-exit can be added
• 3-year ���no hassle��� warranty

Voltage:

• Voltage range ��� 24 to 28 VDC
• System protection ��� unit shutdown when voltage exceeds 28VDC
• Standard - Average Current Peak: 900A, Average Current Hold: 215mA
• High Torque - Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment ��� approx. 1/4���

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• 36��� - All the way to pushpad
• 48��� - All the way to pushpad

DOREX Kit:

• Mechanical Device
• CAT Modified Motor

Download:

• Installation Instruction
