Camden - CX-247-24 - Programmable Electronic Timer 7 Day - 24V AC/DC

Camden - CX-247-24 - Programmable Electronic Timer 7 Day - 24V AC/DC

$52.00 USD
$62.40 USD $52.00 USD
Sale Sold out

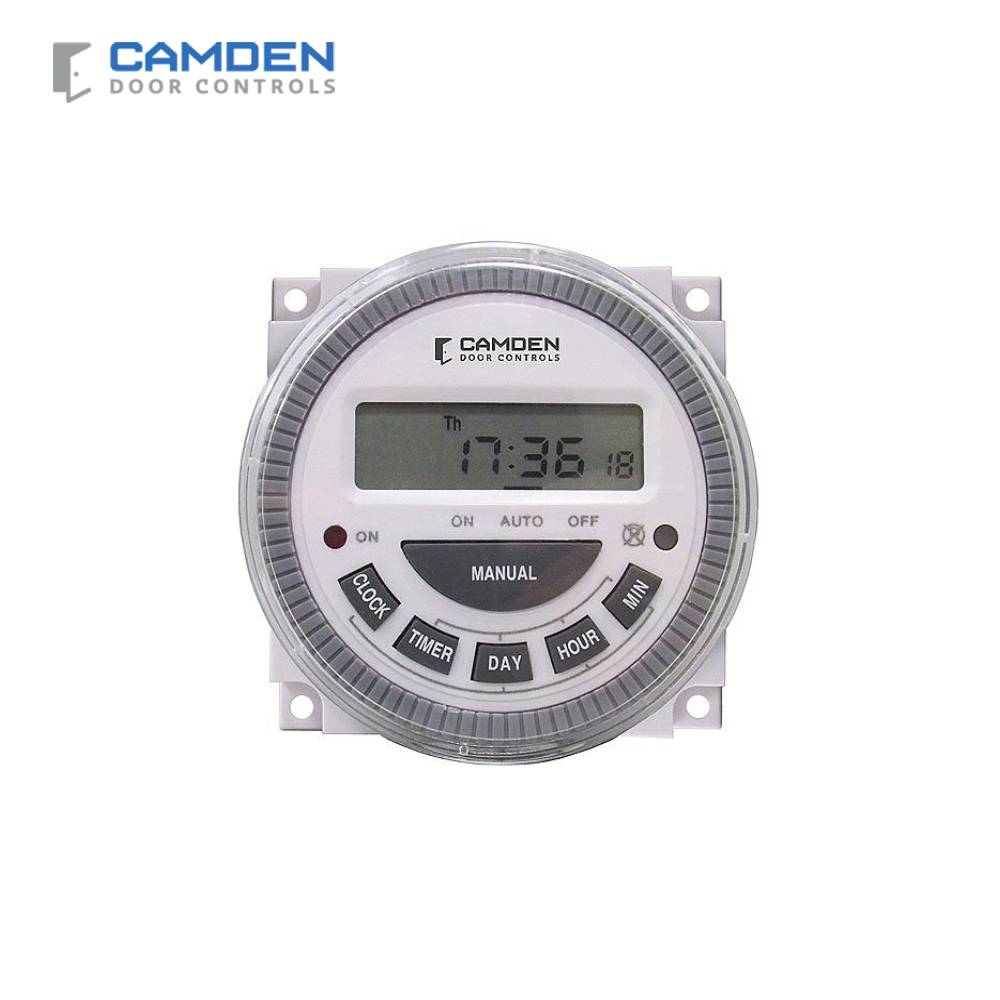

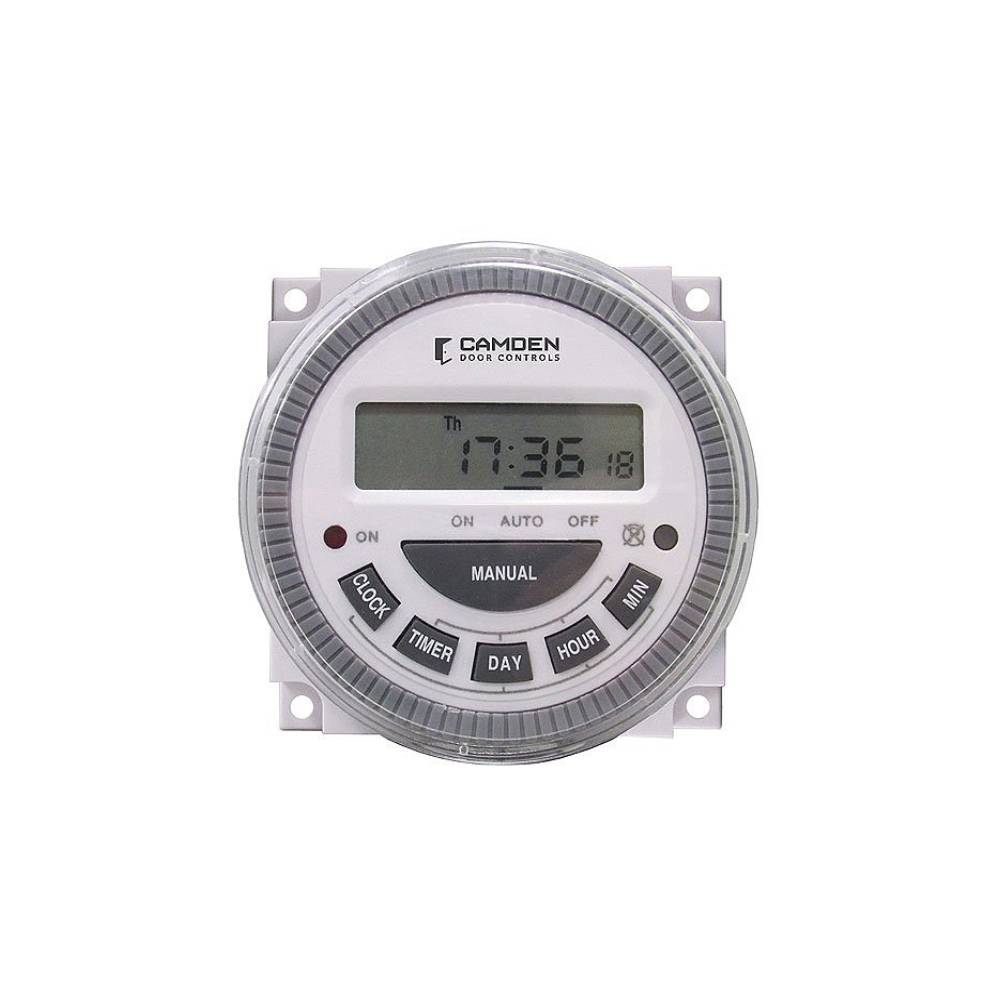

Camden - CX-247-24 - Programmable Electronic Timer 7 Day - 24V AC/DC

Camden's CX-247 is an affordable, compact and easy to program 7 day electronic timer that is designed for use in a wide range of control applications. The unit supports up to 16 'on/off' scheduled times per day and is available in 12 or 24 Volt models.

Features:
  • 15 daily or weekly schedules
  • Internal memory back-up
  • Easy to program/setup
  • Extremely compact size
  • 12 and 24V AC/DC models
  • SPDT contacts rated 16 amps @ 30 VDC
  • Dimensions: 2-3/8" x 2-3/8" x 1-1/4"
  • 'H' models feature 'First Man In' function (for holiday/snow days)
Specifications:
Voltage 12V AC/DC or 24V AC/DC
Current Draw 0.1 mA Idle, 10 mA Operating
Response Time 0.3 Seconds
Backup Internal Permacell
Programs 16
Output Form 'C' (SPDT)
Contact Rating 16 A @ 30 VDC
Electrical Life 250,000 @ Rated Capacity
Dimensions 2-3/8" x 2-3/8" x 1-1/4"
(60mm x 60mm x 32mm)
Installation Instruction:
