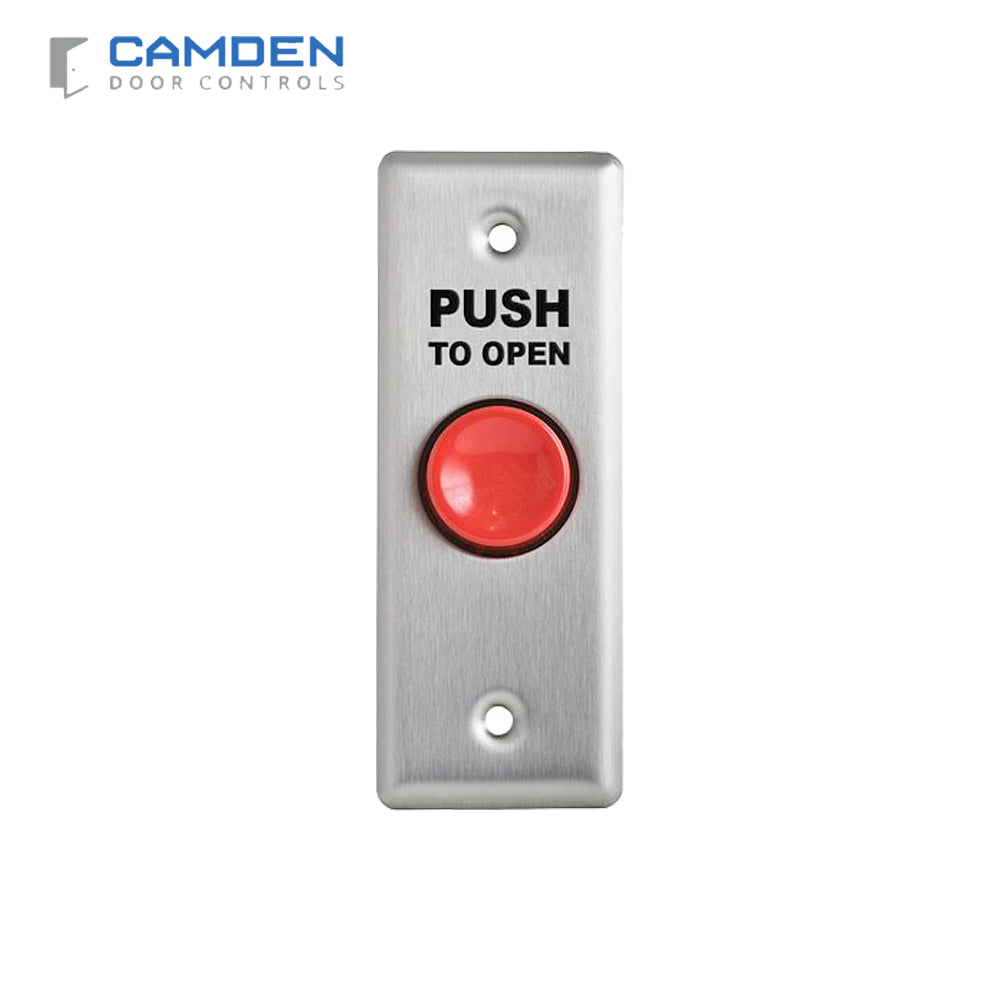

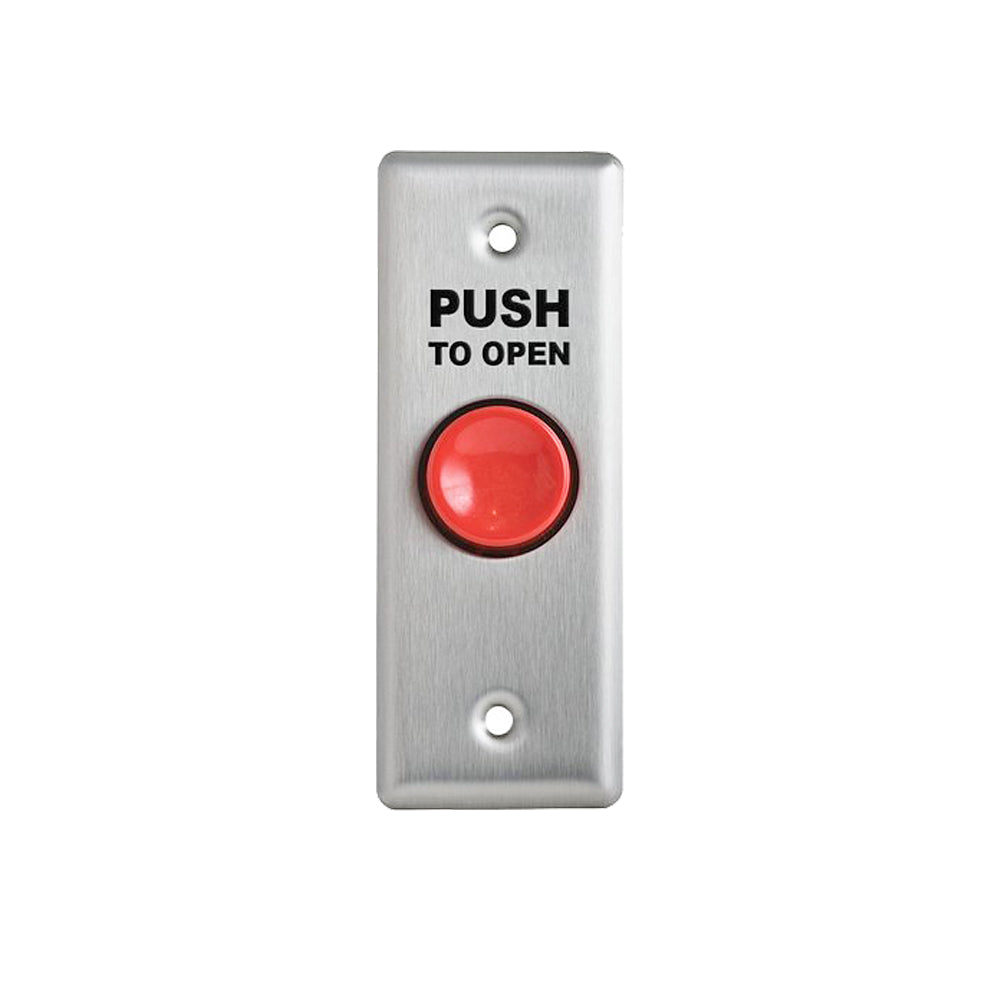

Camden CM-250-3 PUSH TO OPEN Switch with Narrow Faceplate
Camden CM-250-3 PUSH TO OPEN Switch with Narrow Faceplate
Regular price
$39.35 USD
Regular price
$47.22 USD
Sale price
$39.35 USD
Unit price
per
Couldn't load pickup availability
Camden CM-250-3 PUSH TO OPEN Switch with Narrow Faceplate
CM-250 (narrow) series push switches are light-duty, ADA-compliant door controls. Designed to control electric locks, strikes, magnetic locks, automatic pedestrian and overhead doors, the switches feature a stainless steel faceplate and the assembly is designed for easy installation. The SPDT switches are rated 15 amps @ 30 VDC.
Features:
- 1" red button - requires minimal actuation force
- Stainless steel faceplate available in single gang or narrow jamb width
- Available in a variety of faceplate messages and logos
- 3 year warranty with '2 for 1' replacement
Specifications:
| Voltage: | 12/24 VDC |
| Contact Type: | SPDT Form 'C' |
| Contact Rating: | 15 Amps @ 30 VDC |
| Switch Type: | Momentary |
| Dimensions: | CM-250: 1-5/8" x 4-1/2" x 1-11/32" (41mm x 114mm x 32mm) CM-280: 2-3/4" x 4-1/2" x 1-11/32" (70mm x 114mm x 32mm) |
| Std. Finish: | US32 / 32D |
