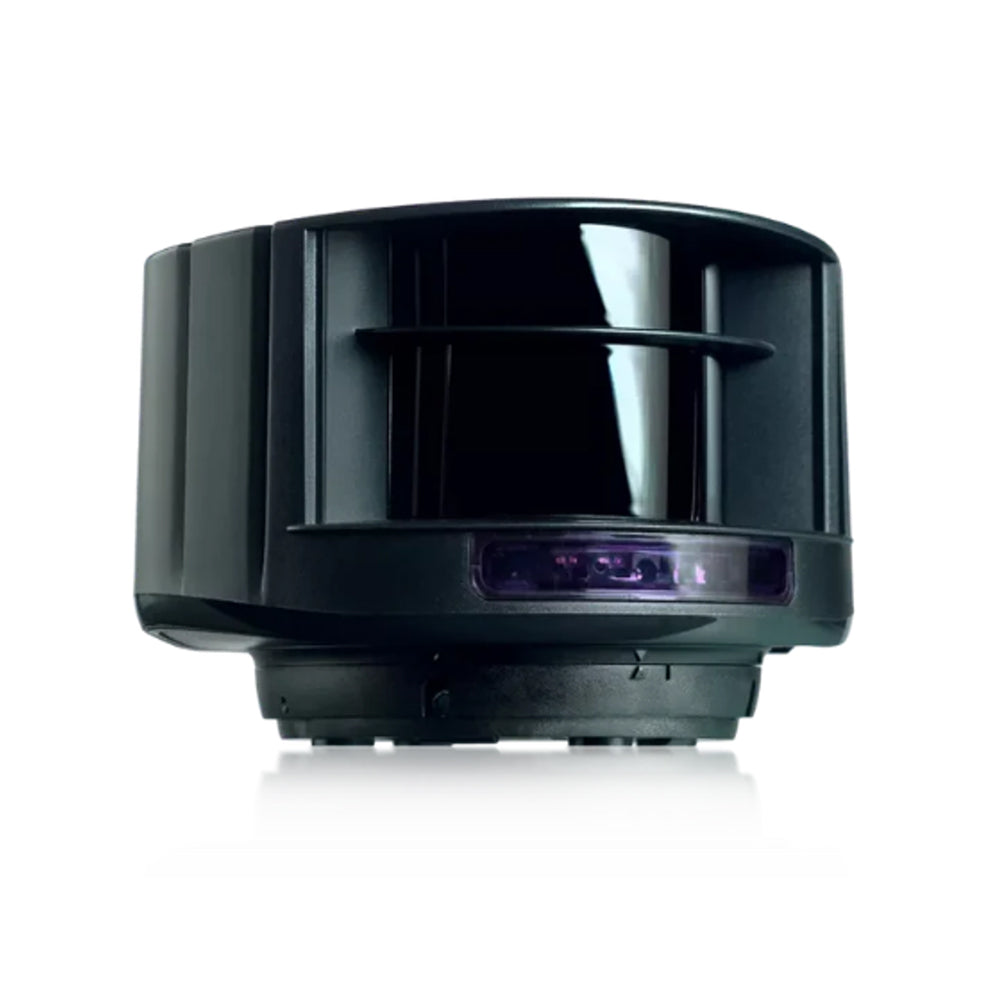

BEA - LZR-I30 - Laser Scanner for Industrial Automation - 35VDC and 24VAC

BEA - LZR-I30 - Laser Scanner for Industrial Automation - 35VDC and 24VAC

$1,448.40 USD
$1,738.08 USD $1,448.40 USD
Sale Sold out

BEA - LZR-I30 - Laser Scanner for Industrial Automation - 35VDC and 24VAC

Features:
  • 3-Dimensional Safety ZoneFour curtains of detection each capable of 360 in by 360 in (30 ft by 30 ft).
  • Highly Accurate Detections Detects objects as small as 2 inches at 30 feet away, depending on application.
  • Energy Savings Has the ability to ignore dynamic ground conditions and extreme weather.
  • Easily Adjustable Three visible LEDs for pattern alignment
Specifications:
Technology LASER scanner, Time-of-Flight measurement
Detection Mode Motion and presence (EN 12453 Typ. E)
Max. Detection Range 30��� �� 30���
Remission Factor > 2%
Emission Characteristics
IR LASER

Red Visible LASER
Wavelength 905 nm;
output power 0.10mW (CLASS 1)
Wavelength 635 nm;
output power 0.95mW (CLASS 2)
Supply Voltage 10 ��� 35 VDC at sensor terminal (to be operated from SELV compatible power supplies only)
Peak Current at Power-On 1.8 A (max. 80 ms at 35 V)
Power Consumption < 5 W
Response Time Typ. 20 ms; max. 80 ms (+ output activation delay)
Output 2 electronic relays (galvanic isolated ��� polarity free)
Max. Switching Voltage- 35 VDC / 24 VAC
Max. Switching Current- 80 mA (resistive)
LED Activity Blue- Power���on
Orange- Error status
Red/Green (x2) - Detection / Output Status
(green = no detection, red = detection)
Dimensions Housing- 5��� (W) �� 2 3/4���(H) �� 3 2���3 (D)
10LBA- Adds 11���20���
Cable Length 30���
Materials PC, ASA
Rotation Angle on Bracket ��5�� (lockable)
Tilt Angle on Bracket ��3��
Degree of Protection NEMA 4 / IP65
Temperature Range -22 ��� 140 ��F if powered
14 ��� 140 ��F if unpowered
Humidity 0 ��� 95% non-condensing
Vibrations < 2 G
