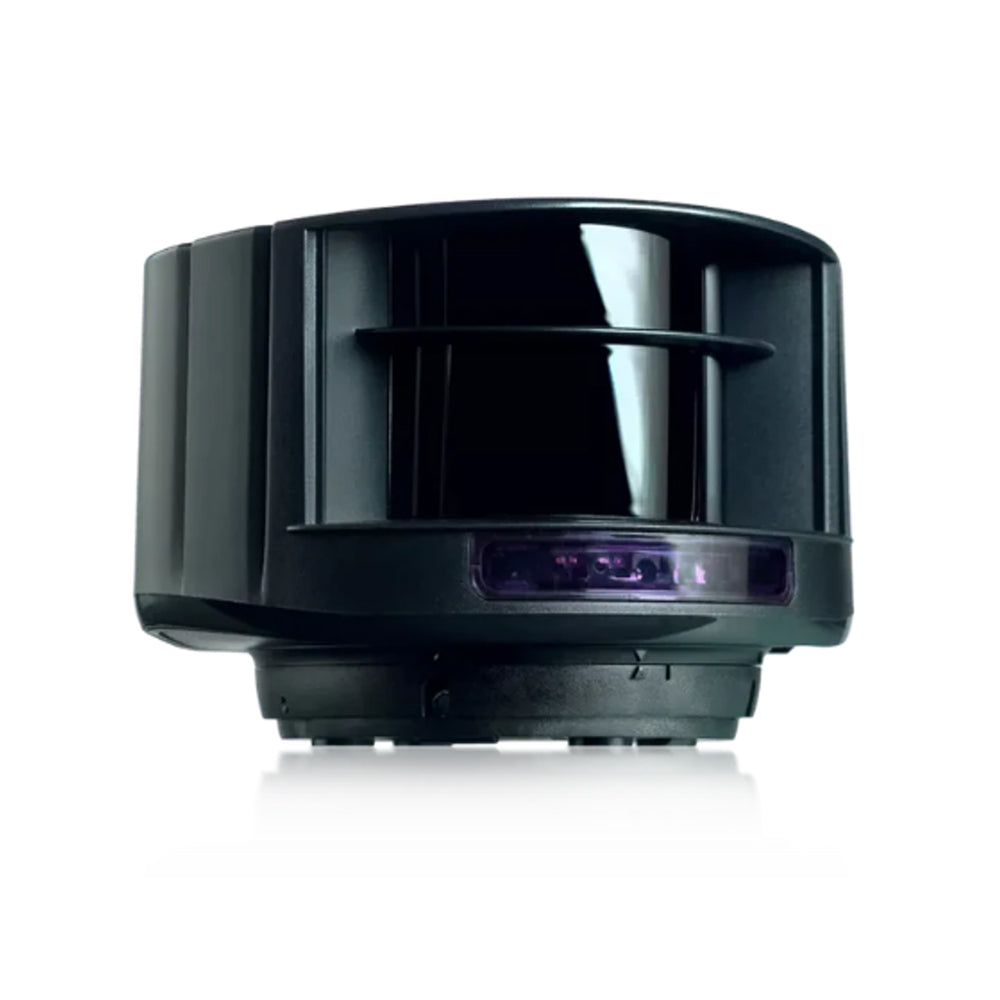

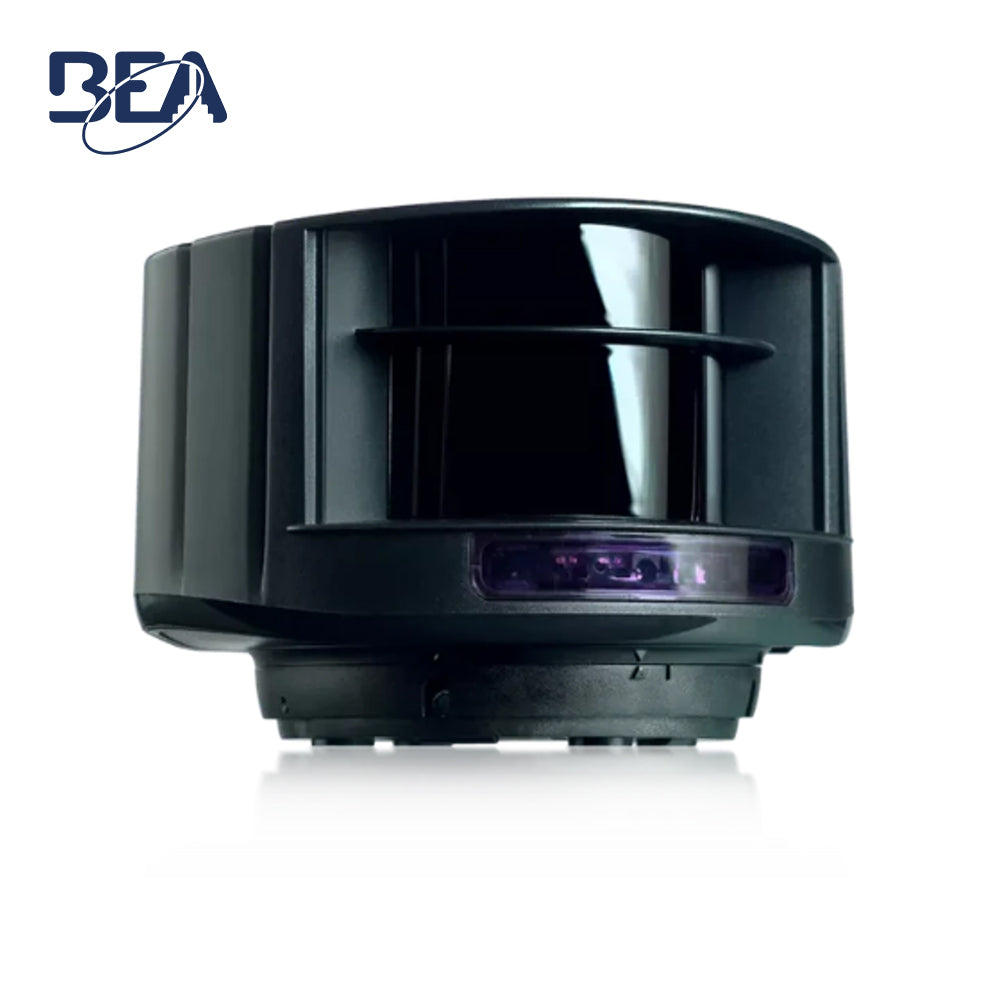

BEA - 10LZRS600 - Presence Sensor - Laser Scanner for Building Automation and Security

BEA - 10LZRS600 - Presence Sensor - Laser Scanner for Building Automation and Security

$1,627.10 USD
$1,952.52 USD $1,627.10 USD
Sale Sold out

BEA - 10LZRS600 - Presence Sensor - Laser Scanner for Building Automation and Security

Features:
  • Largest Detection Field Maximum detection range of 82 ft by 82 ft.
  • Safe and Reliable External, entrapment protection device capable of monitoring with interfaces building management systems.
  • Reduce False Detections High immunity to environmental interferences
  • Eliminates False Detections Has the ability to ignore dynamic ground conditions and extreme weather
Specifications:
Technology LASER scanner, Time-of-Flight measurement
Detection Mode Motion and presence
Detection Range Default: 33��� x 33��� at 2% remission factor (max. 82' x 82')
Angular Resolution 0.3516��
Min. Detected Object Size (typ.) 0.8 in at 10'
1.4 in at 16'
2.8 in at 33'
6.9 in at 82'
Emission Characteristics IR LASER - Wavelength 905 nm; output power 0.10mW (CLASS 1)
Red visible LASER - wavelength 635 nm; output power 0.95mW (CLASS 2)
Supply Voltage 10 ��� 35 VDC at sensor side
Power Consumption < 5 W
Peak Current at Power-on 1.8 A (max. 80 ms at 35 V)
Cable Length 33'
Response Time typ. 20 ms (max. 80 ms)+ output activation delay
Output 2 electronic relays (galvanic-isolated ��� polarity-free)
Max. switching voltage - 35 VDC / 24 VAC
Max. switching current - 80 mA (resistive)
Switching time - tON = 5 ms; tOFF = 5 ms
Output resistance - typ 30 ��
Voltage drop on output - < 0.7 V at 20 mA
Leakage current - < 10 ��A
Input 2 optocouplers (galvanic-isolated ��� polarity-free)
Max. contact voltage - 30 VDC (over-voltage protected)
Voltage threshold - Voltage threshold.
Response Time Monitoring Input - < 5 ms
LED Activity Blue - Power���on
Orange - Error status
Red/Green (x2) - Detection / Output Status (green = no detection, red = detection)
Material PC/ASA
Color Black
Mounting Angles on Bracket -45��, 0��, 45��
Rotation Angles on Bracket -5 ��� 5�� (lockable)
Tilt Angles on Bracket -3 ��� 3��
Protection Degree NEMA 4 / IP65
Temperature Range powered: -22 ��� 140 ��F (-30 ��� 60 ��C)
unpowered: 14 ��� 140 ��F (-10 ��� 60 ��C)
Humidity 0 ��� 95% non-condensing
Vibrations < 2G
Pollution on Front Screen Max. 30%, homogenous
Norm Conformity 2006/95/EC: LVD; 2002/95/EC: RoHS; 2004/108/EC: EMC; IEC 60529:2001; IEC 60825-1:2007; IEC 60950-1:2005; IEC 61000-6-2:2005; IEC 61000-6-3:2006
Dimensions 3 5���8����� 2 3���4����� 5��� (W �� H �� D)
mounting bracket: + 1���2���
