BEA - 10IS40 - Dual Technology Industrial Sensor Utilizing Microwave Motion and Active Infrared Presence Detection

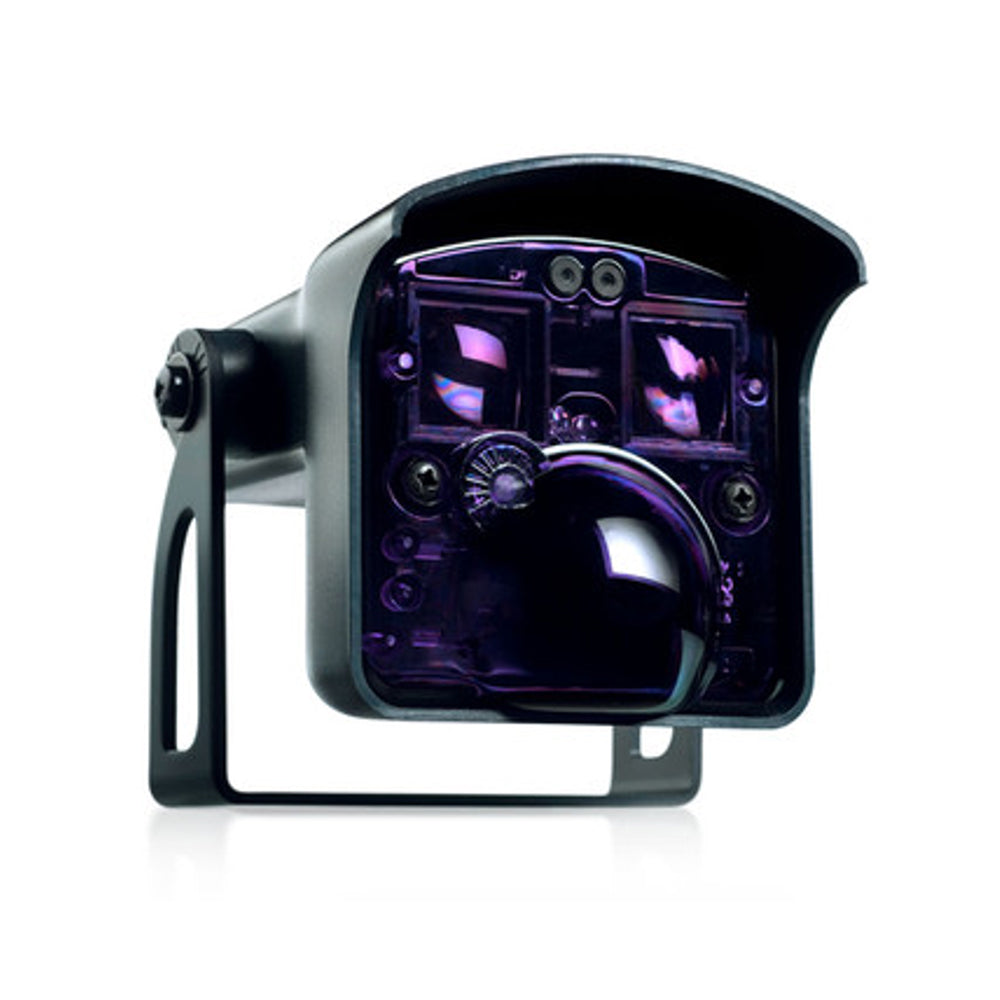

BEA���s IS40 / IS40XL are dual technology sensors designed to provide motion and presence detection in industrial applications. The standard IS40 can be mounted from 8 feet to 16 feet to fit any industrial application. For lower mounting heights, BEA���s IS40XL can be mounted from 6 �� feet to 11 �� feet. Housed in a rugged IP65-rated enclosure, the IS40 / IS40XL will operate in harsh environments, capable of withstanding damage caused by wind-blown dust and rain and hose-directed water.
| Technology | Microwave Doppler Radar | Active Infrared |
|---|---|---|
| Detection Mode | Motion | Presence |
| Led Signal | Green (Activation Relay) | Red (Presence Relay) |
| Transmitter | 24.150 GHz | 875 nm |
| Transmitter Power Density | < 5 mW / cm2 | < 250 mW/m2 |
| MAX. Detection Fietection Field |
|
|
| Output Hold Time | 0.5 s ��� 9 s | 0.5 s |
| MIN. Detection Speed | 2 in / s | 0 in / s to activate detection |
| Tilt Angle | -8 ��� 22�� and 15 ��� 45�� | 15�� ��� 45�� |
| Mains Frequency | 50 ��� 60 Hz | |
| Power Consumption | < 3.5 W | |
| Relay Output | 2 relays (free of potential change-over contact) | |
| Installation Height |
| |
| Temperature Range | ���22 ��F ��� 140 ��F | |

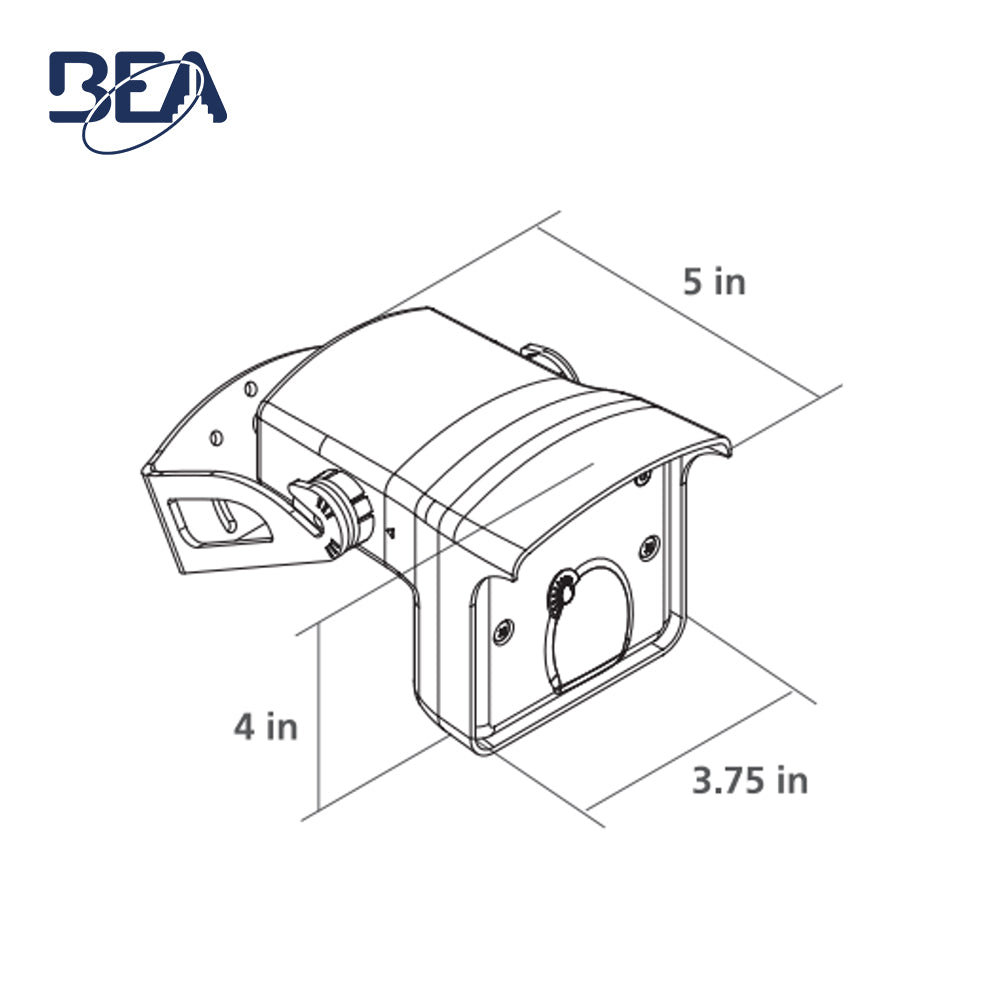

| Dimentions | 3 3���4��� (W) �� 4��� (H) �� 5��� (L) | |
| Materials | ABS & Polycarbonate | |
| Cable Length | 32��� | |
| Degree of Protection | NEMA 4 / IP65 | |
| Norm Conformance | R&TTE: 1999/5/EC; |
