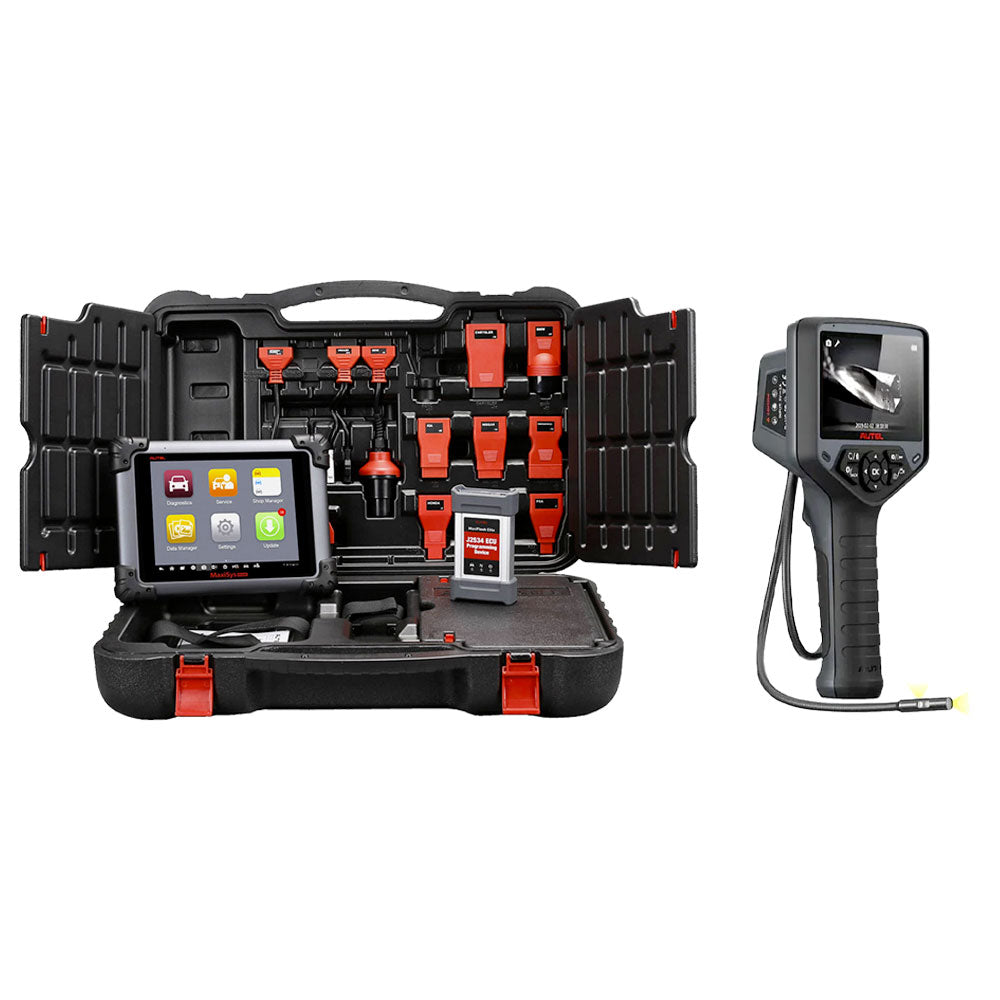

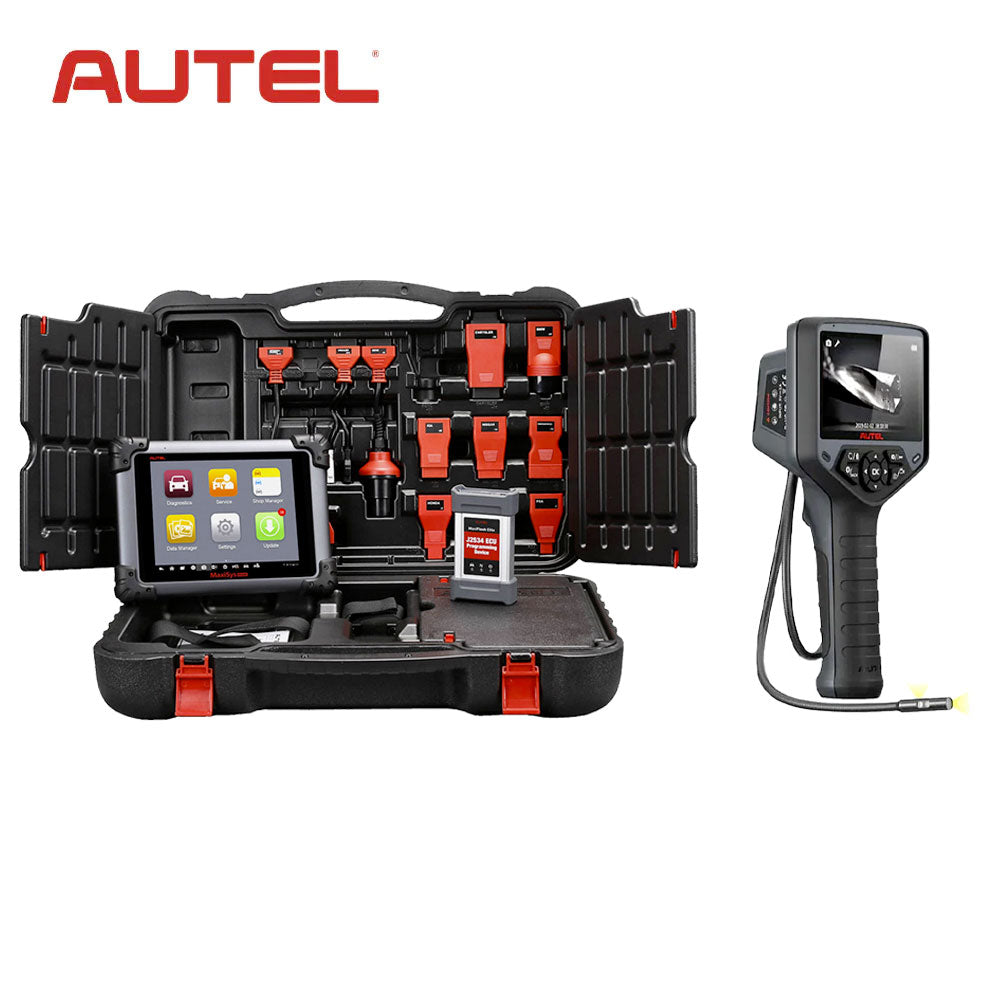

Autel MaxiSys MS908S Pro Diagnostic System with J2534 Pass-Thru Programming Device and MV480 Digital Videoscope

Autel MaxiSys MS908S Pro Diagnostic System with J2534 Pass-Thru Programming Device and MV480 Digital Videoscope

Includes:

• MaxiSys MS908S Pro Diagnostic System
• MaxiVideo MV480 Digital Videoscope

Autel MaxiSys MS908S Pro Diagnostic System w/J2534 Pass-Thru Programmer Device

One of the MaxiSys series devices, the MS908S Pro Diagnostic Platform bases on the revolutionary Android multitasking operating system, utilizes the powerful Cortex A7+A15 six-core processor, and equips with 9.7-inch LED capacitive touch screen. Supporting J2534 ECU Programming Device is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues. MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.

Description:

• Extraordinarily powerful Cortex A7+A15 six-core processor
• 9.7” 2048x1536 LED-backlit glossy Multi-Touch capacitive display with IPS technology
• Internal reliable 64GB On-board Memory for better performance
• Built-in 8-megapixel rear camera with autofocus and flashlight
• The VCI connects to the main unit wirelessly with up to 70 meters working range
• 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
• Unique ergonomic design with rubberized outer protection and a rugged internal housing
• Open source Android Operating System for fast boot-up and multitasking
• Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
• Exceptional OE-Level system coverage for all electronic systems
• Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
• Built-in rechargeable lithium-polymer battery for up to 7.5 hours of continuous operation
• Equip with J2534 ECU Programming Device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues

Specification:

MaxiSYS Comparison:

Download:

• User Manual
• Specifications
• Accesories

Autel MaxiVideo Dual-Camera Digital Videoscope Inspection Camera Endoscope MV480

The MaxiVideo MV480, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features dual front and side cameras with 1920×1080 high resolution, a 4.1" 1200×720 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.

Features:

• High resolution images and videos (1920 x 1080)
• Dual front and side cameras for wider viewing angle
• 4.1-inch full color LCD display (1200 x 720)
• 1-button quick image capture and video recording
• 70-degree field of view for expanded viewing angle
• Adds audio annotation for detailed review
• Micro HDMI-output enables streaming to larger monitors
• Freeze-frame camera stills or video recording
• On-screen horizontal/vertical reverse
• Records and plays back images and video clips
• 7X digital zoom for increased viewing
• 8GB Micro SD card (included), supports up to 128GB
• Mini-USB cable (included) for uploading images and videos
• More than 10,000 lux, adjustable 10-level LED illumination
• Flashlight for higher visibility in low-light environment
• Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
• 1m (39.4") semi-rigid, flexible watertight cable
• Includes magnet and hook cable accessories
• 8.5mm (0.33’’) probe fits most spark plug holes
• Compatible with 5.5mm (0.22’’) camera head (not included)

Specifications:

• Recommended use: Indoor
• Optimal viewing Distance: 0.79" to 2" (2 cm to 5 cm)
• Image capture: JPG images (1920 x 1080 pixels)
• MP4: videos (1920 x 1080 pixels)
• Screen type: display 4.1" TFT LCD
• Display resolution: 1200 x 720 pixels
• Power supply Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)
• Tested battery life: Approximately 4 hours of continuous use
• Dimensions: 243 x 116 x 122mm (9.6" x 4.6" x 4.8")
• Weight : 0.422 kg (0.93lbs)
• Recording medium: Micro SD card (8GB Standard/128GB Max)
• Image controls: Zoom, low light vision
• Lighting: Fully adjustable LED, Flashlight
• Cable reach: 1m (39.4")
• Imager heads: 8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)
• Waterproof: To a depth of 1m (39.4") (Imager heads and cable only)
• Additional ports: TF, Mini USB, Micro HDMI
• Operating temp: Main unit: 14°F to 122°F (-10°C to 50°C)
• Cable: 14°F to 140°F (-10°C to 60°C)
• Storage temp: -4°F to 158°F (-20°C to 70°C)
• Operating humidity 5% 95% non-condensing
