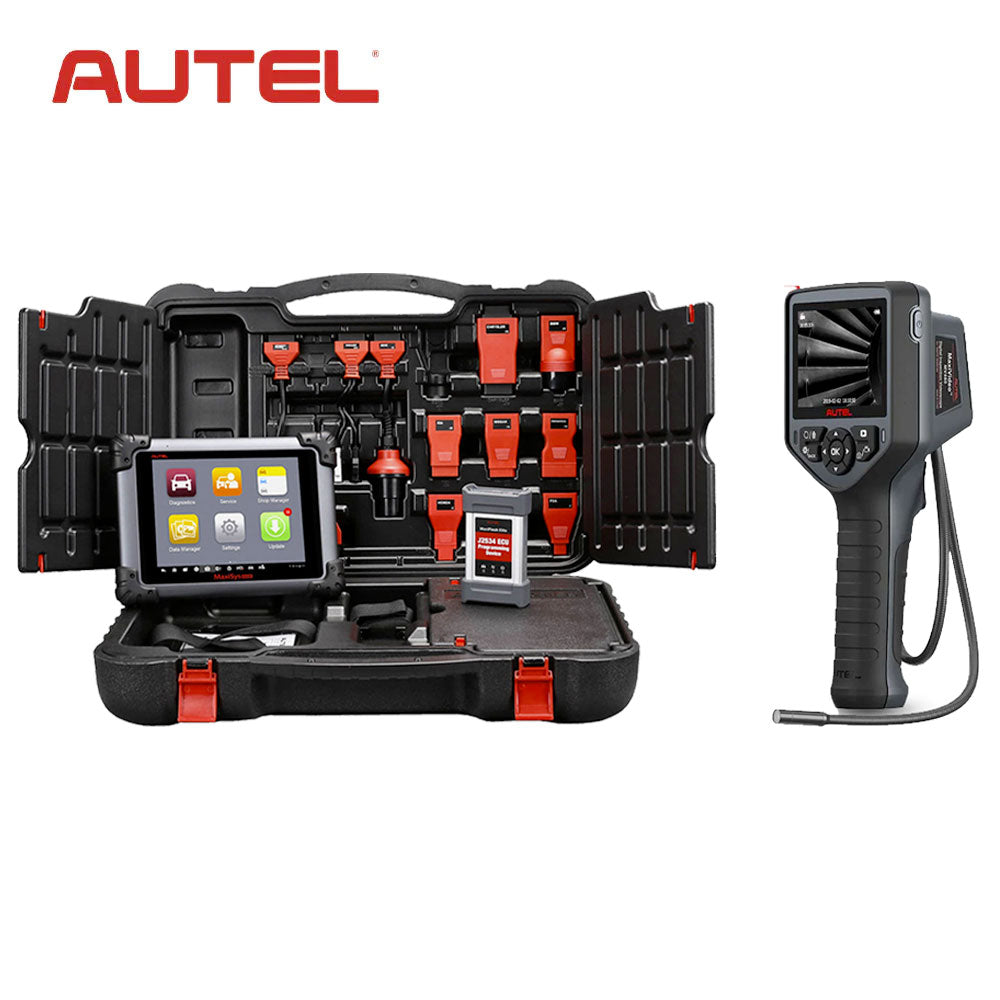

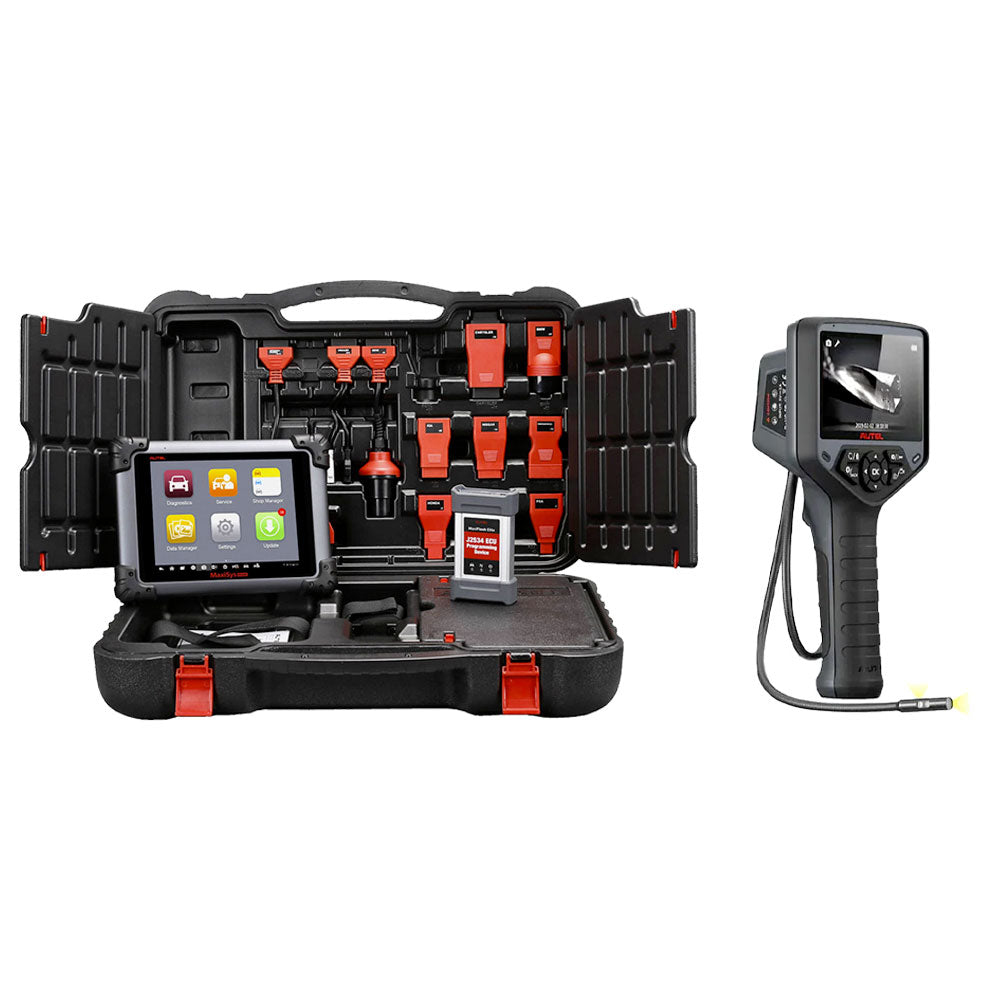

Autel MaxiSys MS908S Pro Diagnostic System with J2534 Pass-Thru Programming Device and MV460 Digital Videoscope
Autel MaxiSys MS908S Pro Diagnostic System with J2534 Pass-Thru Programming Device and MV460 Digital Videoscope
Couldn't load pickup availability
Autel MaxiSys MS908S Pro Diagnostic System with J2534 Pass-Thru Programming Device and MV460 Digital Videoscope
Includes:
Autel MaxiSys MS908S Pro Diagnostic System w/J2534 Pass-Thru Programmer Device
One of the MaxiSys series devices, the MS908S Pro Diagnostic Platform bases on the revolutionary Android multitasking operating system, utilizes the powerful Cortex A7+A15 six-core processor, and equips with 9.7-inch LED capacitive touch screen. Supporting J2534 ECU Programming Device is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues. MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.
Features:
- Extraordinarily powerful Cortex A7+A15 six-core processor
- 9.7” 2048x1536 LED-backlit glossy Multi-Touch capacitive display with IPS technology
- Internal reliable 64GB On-board Memory for better performance
- Built-in 8-megapixel rear camera with autofocus and flashlight
- The VCI connects to the main unit wirelessly with up to 70 meters working range
- 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
- Unique ergonomic design with rubberized outer protection and a rugged internal housing
- Open source Android Operating System for fast boot-up and multitasking
- Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
- Exceptional OE-Level system coverage for all electronic systems
- Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
- Built-in rechargeable lithium-polymer battery for up to 7.5 hours of continuous operation
- Equip with J2534 ECU Programming Device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues
Specification:
| Operating System | Android™ 4.4.2, KitKat |
| Processor | Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) |
| Memory | 2GB RAM & 64GB On-board Memory |
| Display | 9.7 inch LED capacitive touch screen with 2048x1536 resolution |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI |
| Camera (rear) | 8.0 Megapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
| Input Voltage | 12 V (9-24 V) |
| Power Consumption | 6.5 W |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Dimensions(WXHX D) | 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
| Weight | NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.) |
| Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |
MaxiSYS Comparison:
Download:
Autel MaxiVideo MV460 Next Generation of Digital Videoscope
The MaxiVideo MV460, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features a 1920 x 1080 high resolution camera, a 3.5-inch 640 x 480 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours of continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.
Features:
- High resolution images and videos (1920 x 1080)
- 3.5-inch full color LCD display (640 x 480)
- 1-button quick image capture and video recording
- 70-degree field of view for expanded viewing angle
- Micro HDMI-output enables streaming to larger monitors
- Freeze-frame camera stills or video recording
- On-screen horizontal/vertical reverse
- Records and plays back images and video clips
- 7X digital zoom for increased viewing
- 8GB Micro SD card (included), supports up to 128GB
- Mini-USB cable (included) for uploading images and videos
- More than 10,000 lux, adjustable 10-level LED illumination
- Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
- 1m (39.4") semi-rigid, flexible watertight cable
- Includes magnet, hook, and mirror cable accessories
- 8.5mm (0.33’’) probe fits most spark plug holes
- Compatible with 5.5mm (0.22’’) camera head (not included)
Specifications:
| Recommended Use | Indoor |
| Optimal Viewing Distance | 0.79" to 2" (2 cm to 5 cm) |
| Image Capture | JPG images (1920 x 1080 pixels) MP4 videos (1920 x 1080 pixels) |
| Display | 3.5" TFT LCD |
| Display Resolution | 640 x 480 pixels |
| Power Supply | Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh) |
| Tested Battery Life | Approximately 4 hours of continuous use |
| Dimensions | 235 x 97 x 125mm (9.3" x 3.8" x 4.9" ) |
| Weight |
0.393kg (0.87lbs) |
| Recording Medium | Micro SD card (8GB Standard/128GB Max) |
| Image Controls | Zoom, low light vision |
| Lighting | Fully adjustable LED |
| Cable Reach | 1m (39.4") |
| Imager Head | 8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels) |
| Waterproof | To a depth of 1m (39.4") (Imager heads and cable only) |
| Additional Ports | TF, Mini USB, Micro HDMI |
| Operating Temp | Main unit: 14°F to 122°F (-10°C to 50°C); Cable: 14°F to 140°F (-10°C to 60°C) |
| Storage Temp | -4°F to 158°F (-20°C to 70°C) |
| Operating Humidity | 5% - 95% non-condensing |
