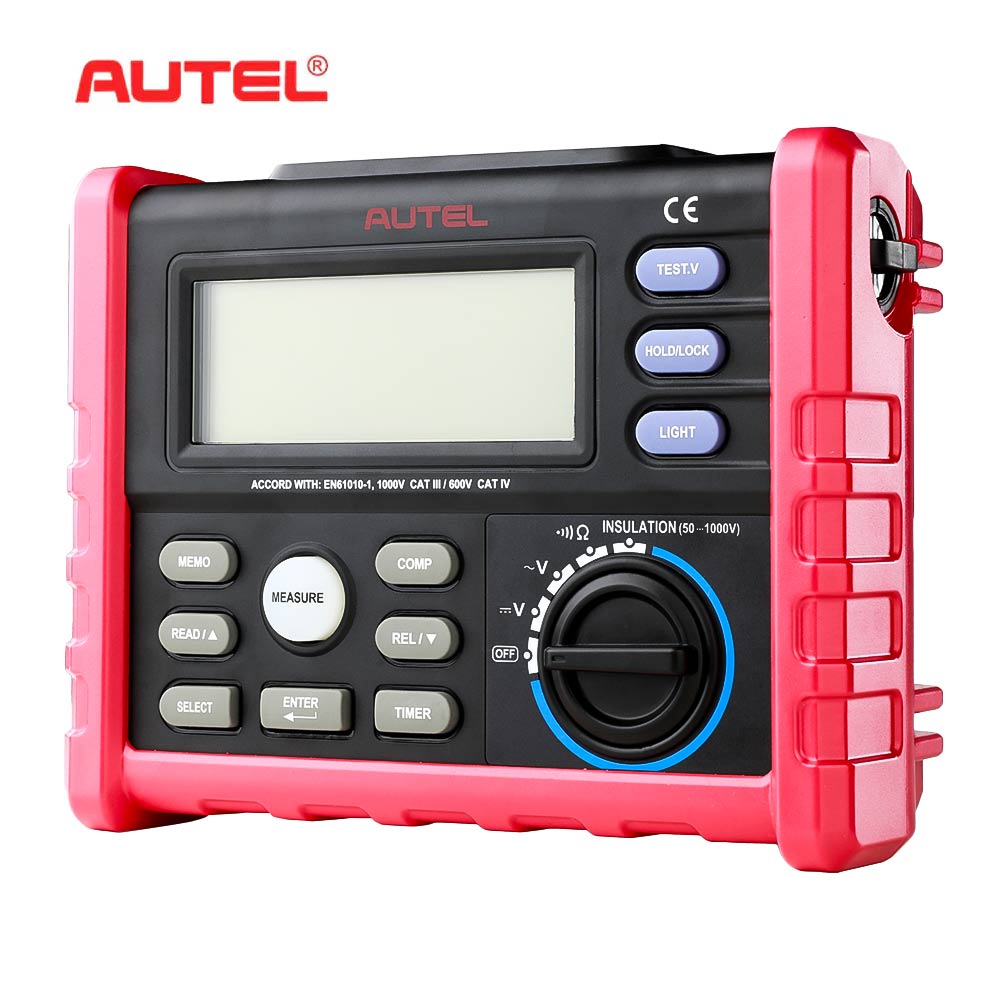

Autel MaxiEV ITS100 High Voltage Electrical Component Insulation and Resistance Tester

Autel MaxiEV ITS100 High Voltage Electrical Component Insulation and Resistance Tester

The MaxiEV ITS100 is a EV Insulation resistance tester. With the ITS100, technicians can apply a high DC voltage (50V, 100V, 250V, 500V, or 1000V) to the tested component or system and measure the resulting current flow to identify issues like damage, deterioration, or contamination of the insulation. Provides easily interpretable visualized data for informed decision-making during vehicle maintenance. Includes a one-year limited warranty.

Features:

• Tests high voltage wiring and components
• Test resistance measurement before loading into the vehicle
• Helps identify issues like damage, deterioration, or contamination of the insulation Applies a high DC voltage (50V, 100V, 250V, 500V, or 1000V) to the component or system being tested and measure the resulting current flow
• Provides easily interpretable visualized data for informed decision-making during vehicle maintenance
• Three measurement modes: relative, timely, and continuity
• Complies with IEC/EN 61010-1 1000V CAT ���, 600 V CAT ��� measurements
• Use to discharge capacitors and testing/diagnosing isolation faults or shorts
• Automatic power-off function to conserve battery power
• Covered by a one-year Limited Warranty

Specifications:

Download:

• Product Flyer
