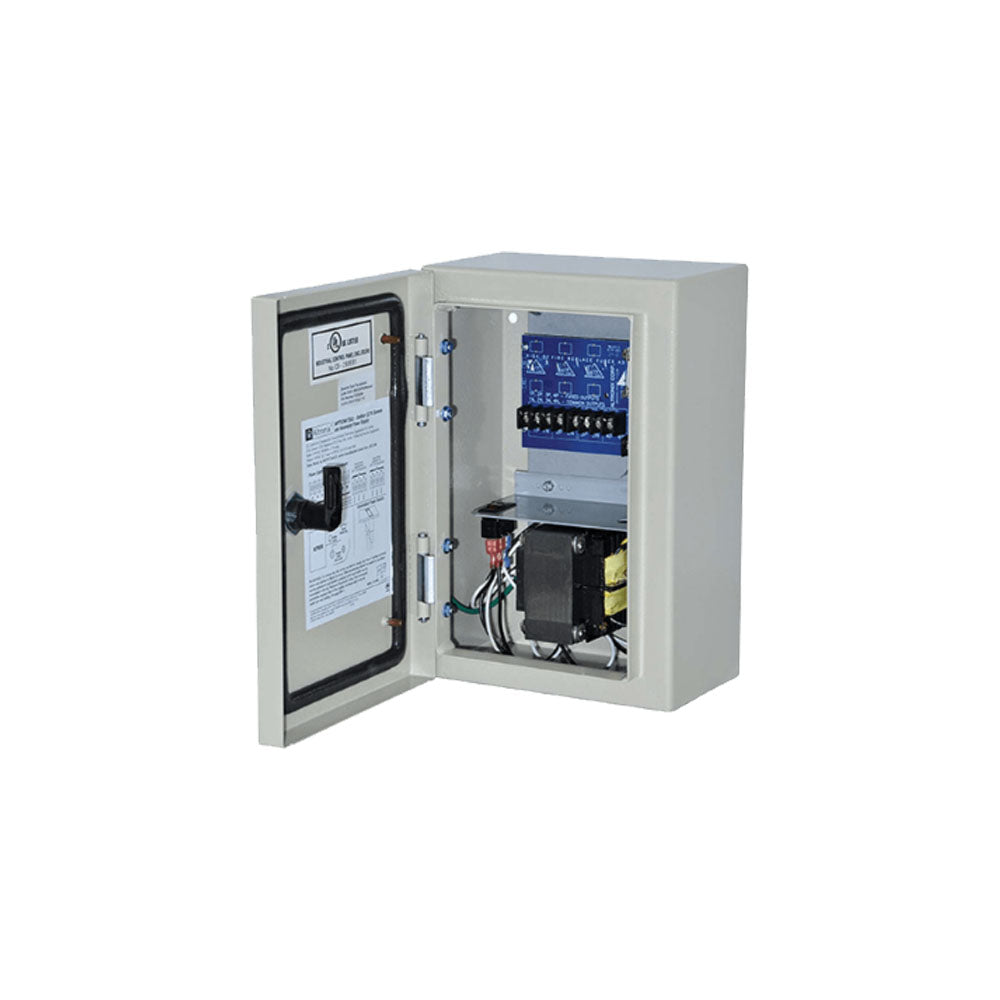

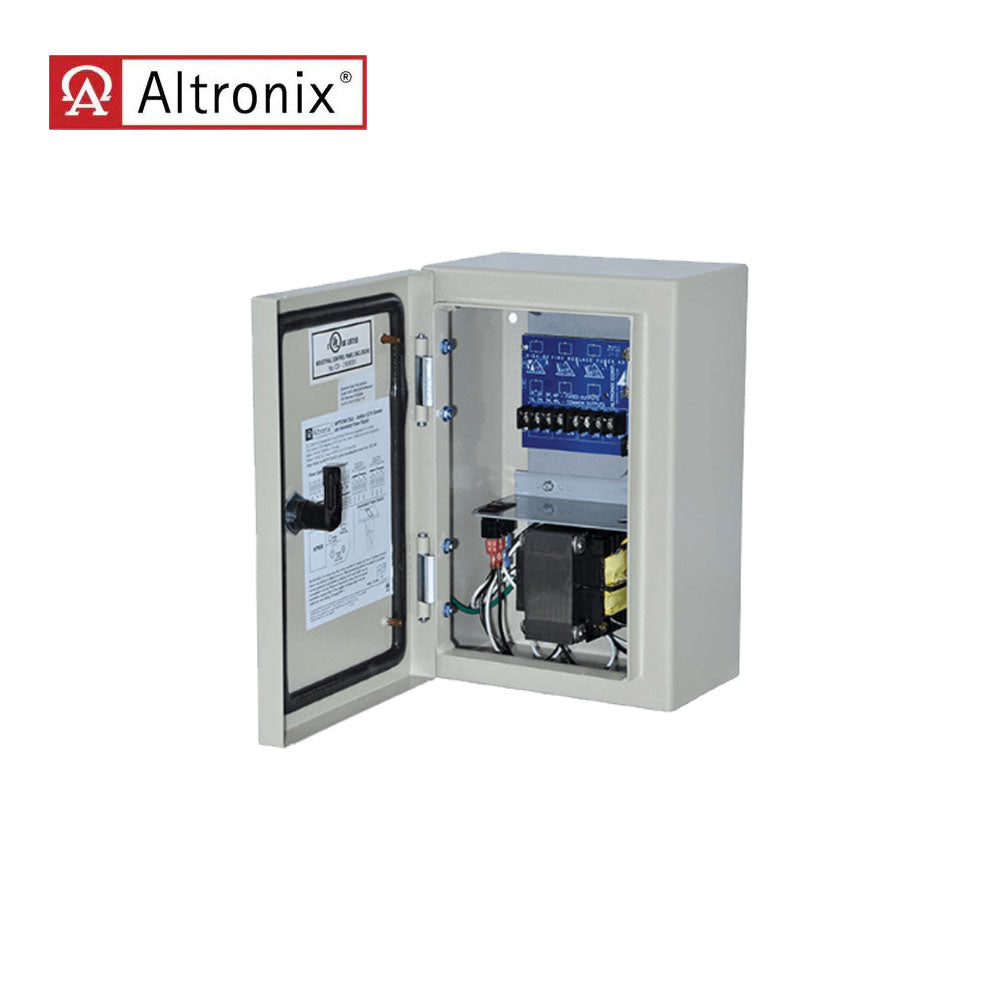

Altronix - WPTV244175UL - Outdoor CCTV AC Power Supply - 115VAC(50 or 60Hz) at 1.76A Input - 24VAC at 7A or 28VAC at 6.25A Output - Grey Enclosure

Altronix - WPTV244175UL - Outdoor CCTV AC Power Supply - 115VAC(50 or 60Hz) at 1.76A Input - 24VAC at 7A or 28VAC at 6.25A Output - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 115VAC, 50/60Hz, 1.76A.

Output:

• Four (4) protected outputs:
  • One (1) fuse protected non-power limited output rated at 10A/250VA.
  • Three (3) Class 2 Rated PTC protected power limited outputs rated @ 2.5A (auto-resettable).
• 24VAC @ 7A (175VA) supply current or 28VAC @ 6.25A (175VA) supply current
• Surge suppression.

Features:

• AC power LED.
• Illuminated power disconnect circuit breaker with manual reset.
• Spare fuses provided.
• NEMA 4 Rated enclosure for outdoor use.

Temperature:

• Operating Temperature: 0�� C to 49�� C (32�� F to 120�� F).
• Storage Temperature: - 20�� C to 70�� C ( - 4�� F to 158�� F).
• Relative Humidity: 85% +/- 5%
• BTU/Hr. (approx.):
  • 24VAC: 86 BTU/Hr.
  • 28VAC: 90 BTU/Hr.
• System AC input VA requirement: 202.4VA.

Enclosure:

• NEMA 4/IP 65 Rated enclosure for outdoor use.
• Dimensions 8"W x 12"H x 6"D (203.2 mm W x 304.8 mm H x 152.4 mm D).

Download:

• Installation Instruction
