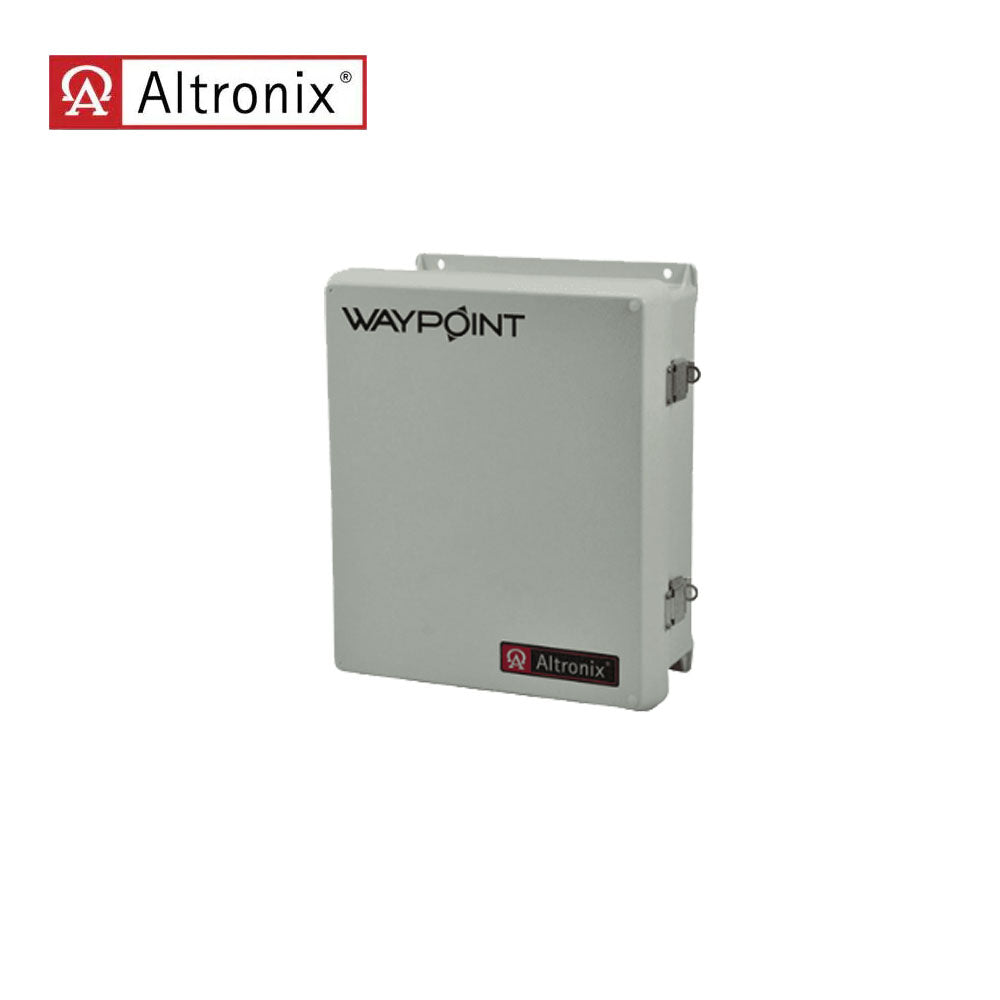

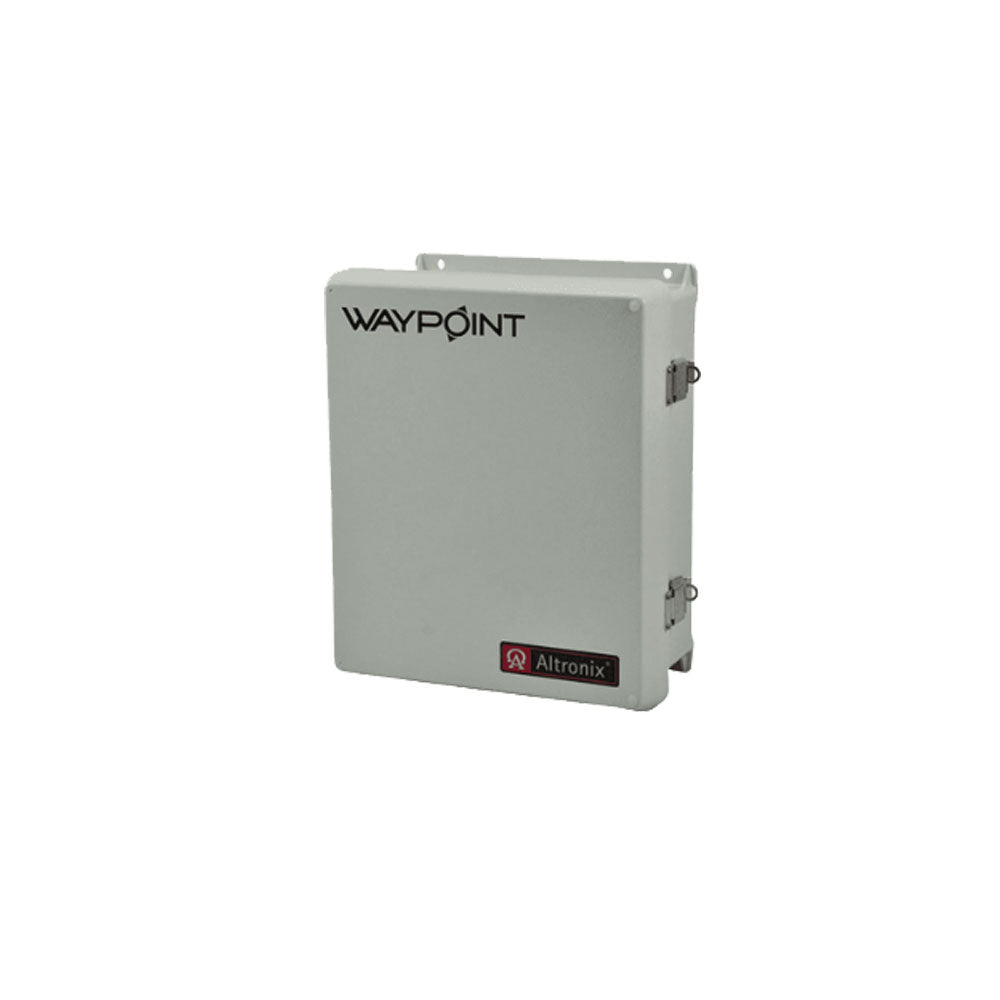

Altronix - WAYPOINT307A - AC Outdoor Power Supply Charger - 277VAC 60Hz at 1.75A Input - 2 Fuse Outputs - Weather Resistant Grey Enclosure

Altronix - WAYPOINT307A - AC Outdoor Power Supply Charger - 277VAC 60Hz at 1.75A Input - 2 Fuse Outputs - Weather Resistant Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input: 277VAC, 60Hz, 1.75A.

Output:

• Output options:
  • a. 24VAC @ 12.5A max.
  • b. 28VAC @ 10A max.
  • c. Both 24VAC and 28VAC not to exceed 10A max.
• Output fuses rated @ 15A/32V.

Features:

• Individual power output LEDs.
• Illuminated master power switch.
• Spare fuses included.

Temperature:

• Operating Temperature: - 20�� C to 50�� C ( -4�� F to 122�� F).
• Storage Temperature: - 40�� C to 70�� C ( - 40�� F to 158�� F).
• Relative Humidity: 85% +/- 5%
• BTU/Hr. (approx.): 154 BTU/Hr.
• System AC input VA requirement: 484.75VA.

Enclosure:

• NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
• Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).

Download:

• Installation Instruction
