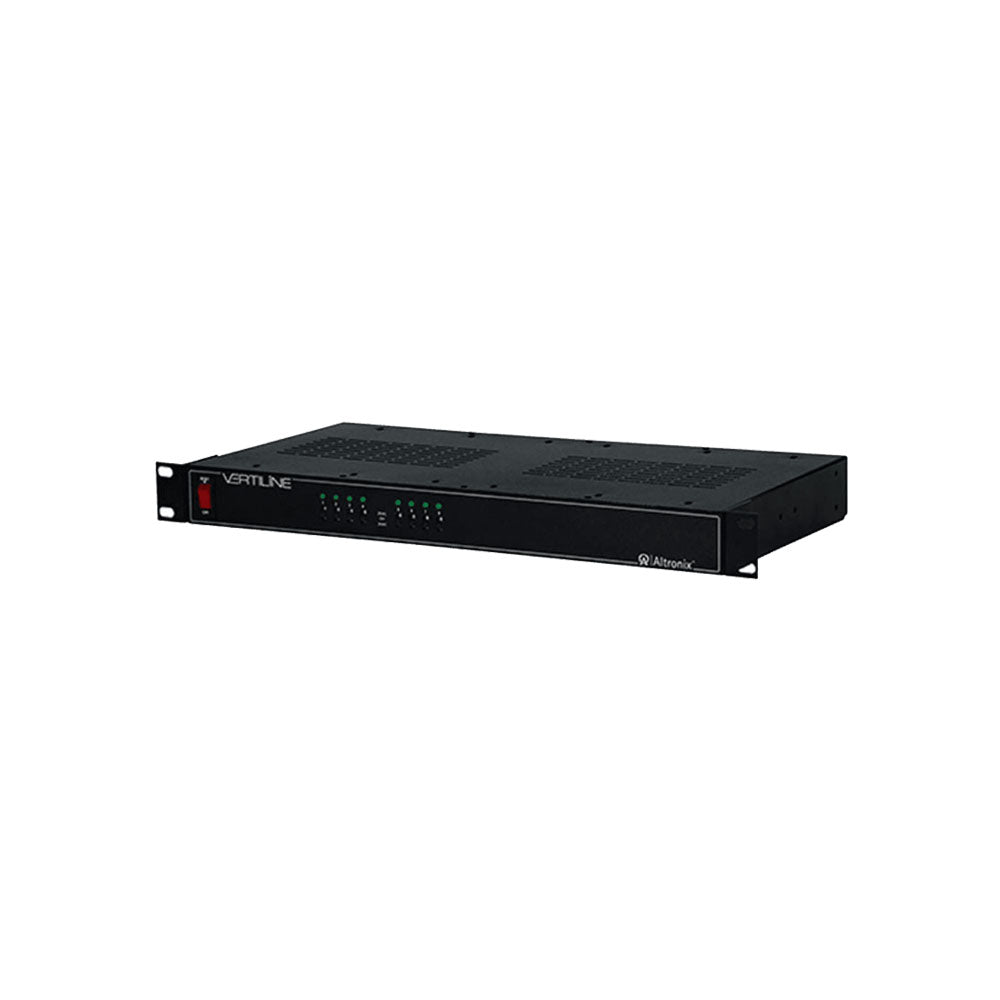

Altronix - VERTILINE83D - AC CCTV Rack Mount Power Supply - 115VAC 60Hz at 3A or 220VAC 50 or 60Hz at 1.5A Input - 8 PTC Protected Outputs 24 or 28VAC at 10A Max

Altronix - VERTILINE83D - AC CCTV Rack Mount Power Supply - 115VAC 60Hz at 3A or 220VAC 50 or 60Hz at 1.5A Input - 8 PTC Protected Outputs 24 or 28VAC at 10A Max

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Selectable 115VAC 60 Hz or 240VAC 50/60 Hz input.
• 115VAC 60 Hz., 3A.
• 240VAC 50/60 Hz., 1.5A.

Output:

• Eight (8) power LEDs.
• Illuminated master power disconnect circuit breaker with manual reset.
• IEC 320 - 3-wire grounded line cord (detachable).
• Removable terminal blocks with locking screw flange.

Features:

• Eight (8) power LEDs.
• Illuminated master power disconnect circuit breaker with manual reset.
• IEC 320 - 3-wire grounded line cord (detachable).
• Removable terminal blocks with locking screw flange.

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F).
• Storage - 20�� C to 70��C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  • 24VAC: 123 BTU/Hr.
  • 28VAC: 143 BTU/Hr.
• System AC input VA requirement: 115VAC: 345VA, 230VAC: 360VA.

Enclosure:

• Modular 1U standard EIA 19" rack mount chassis.
• Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).

Download:

• Installation Instruction
