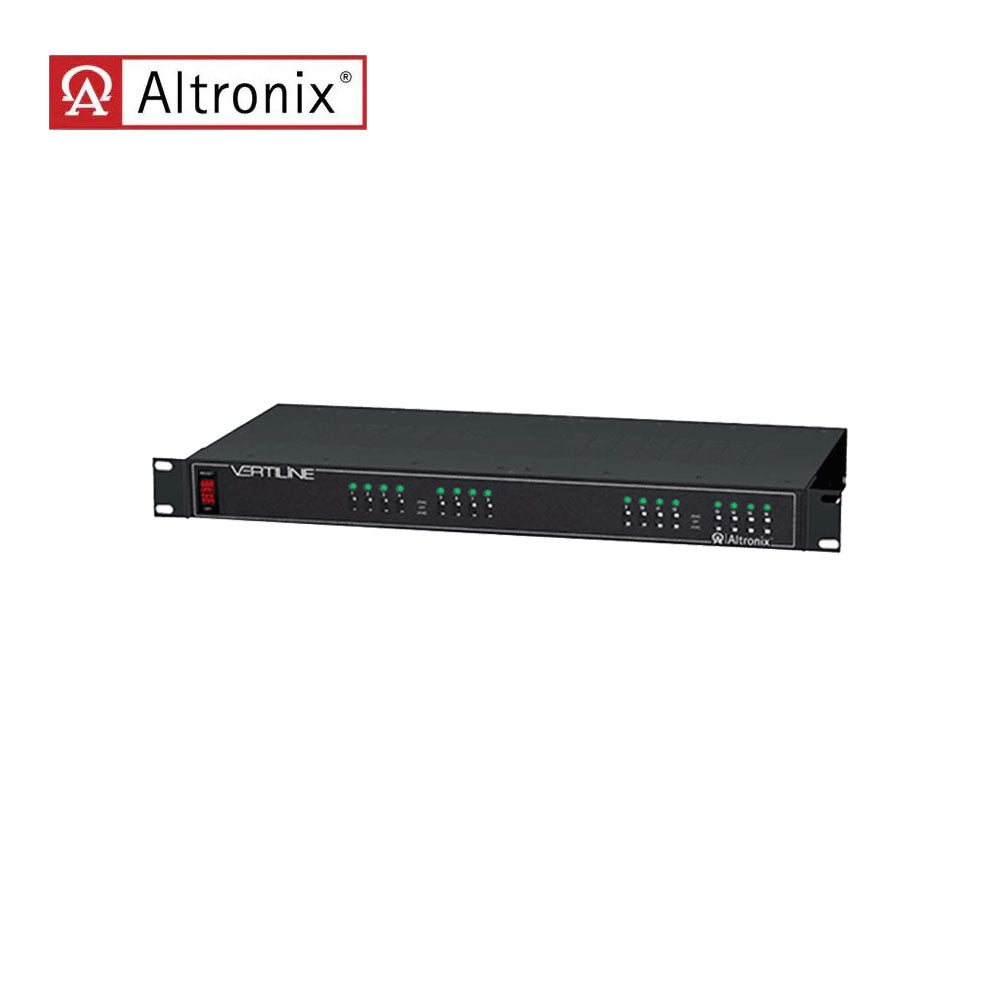

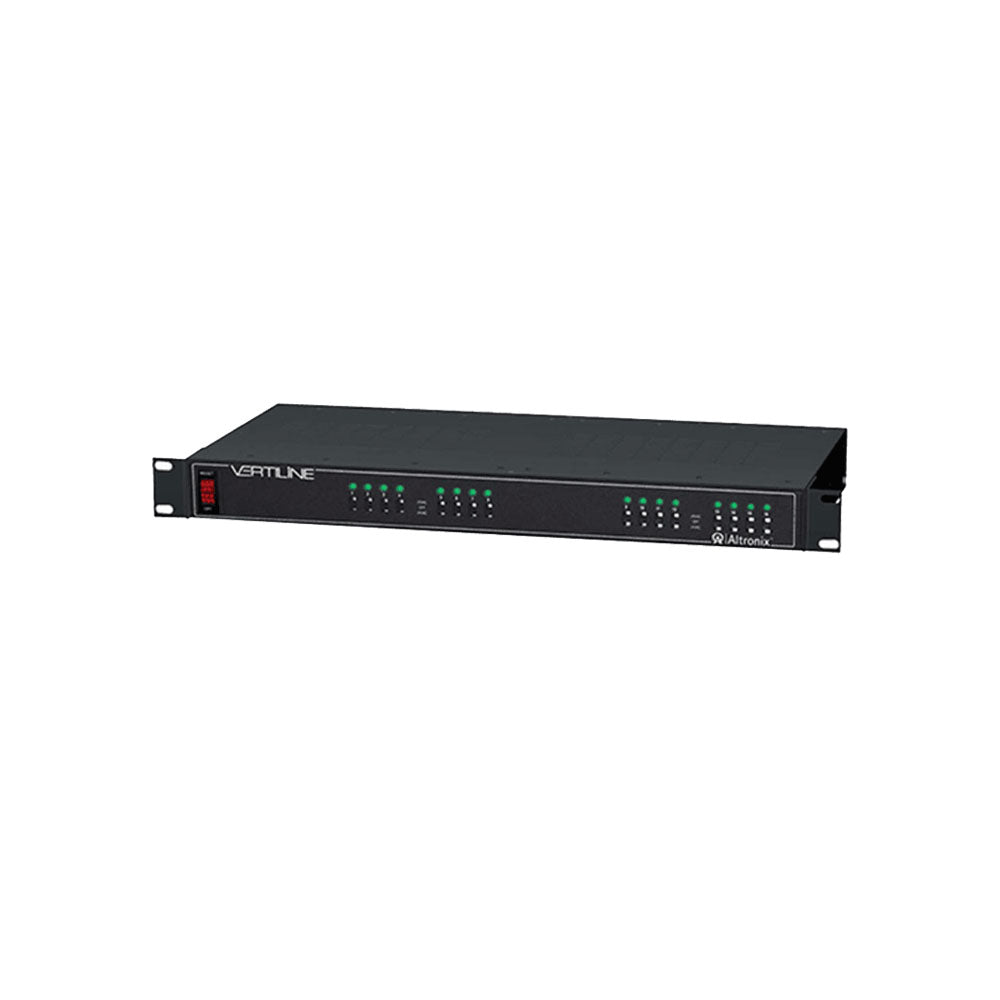

Altronix - VERTILINE166CD - AC CCTV Rack Mount Power Supply - 16 PTC Protected Outputs 24 or 28VAC at 14A Max

Altronix - VERTILINE166CD - AC CCTV Rack Mount Power Supply - 16 PTC Protected Outputs 24 or 28VAC at 14A Max

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 115VAC 60 Hz., 4A.

Output:

• Sixteen (16) individually selectable 24VAC or 28VAC power outputs with OFF position.
• 24VAC or 28VAC @ 14A max. total (0.875A per device, 2.5A max.).
• Sixteen (16) PTC protected outputs rated @ 2.5A.
• Main fuse rated @ 15A.
• Surge suppression.

Features:

• Sixteen (16) power LEDs.
• Illuminated master power disconnect circuit breaker with manual reset.
• IEC 320 - 3-wire grounded line cord (detachable).
• Removable terminal blocks with locking screw flange.

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F).
• Storage - 20�� C to 70��C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr (approx.):
  • 24VAC: 172 BTU/Hr.
  • 28VAC: 201 BTU/Hr.
• System AC input VA requirement: 460VA.

Enclosure:

• Modular 1U standard EIA 19" rack mount chassis.
• Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).

Download:

• Installation Instruction
