Altronix - T16100C - AC Power Supply - 120VAC 50 or 60Hz at 1A Input - 16VAC or 100VA at 6.25A Output

Altronix - T16100C - AC Power Supply - 120VAC 50 or 60Hz at 1A Input - 16VAC or 100VA at 6.25A Output

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 120VAC 50/60 Hz, 1.0A.

Output:

• 16VAC/100VA (6.25A).

Features:

• Fused input protection.
• Green grounding lead.

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F).
• Storage - 20�� C to 70�� C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 51 BTU/Hr.
• System AC input VA requirement: 120VA.

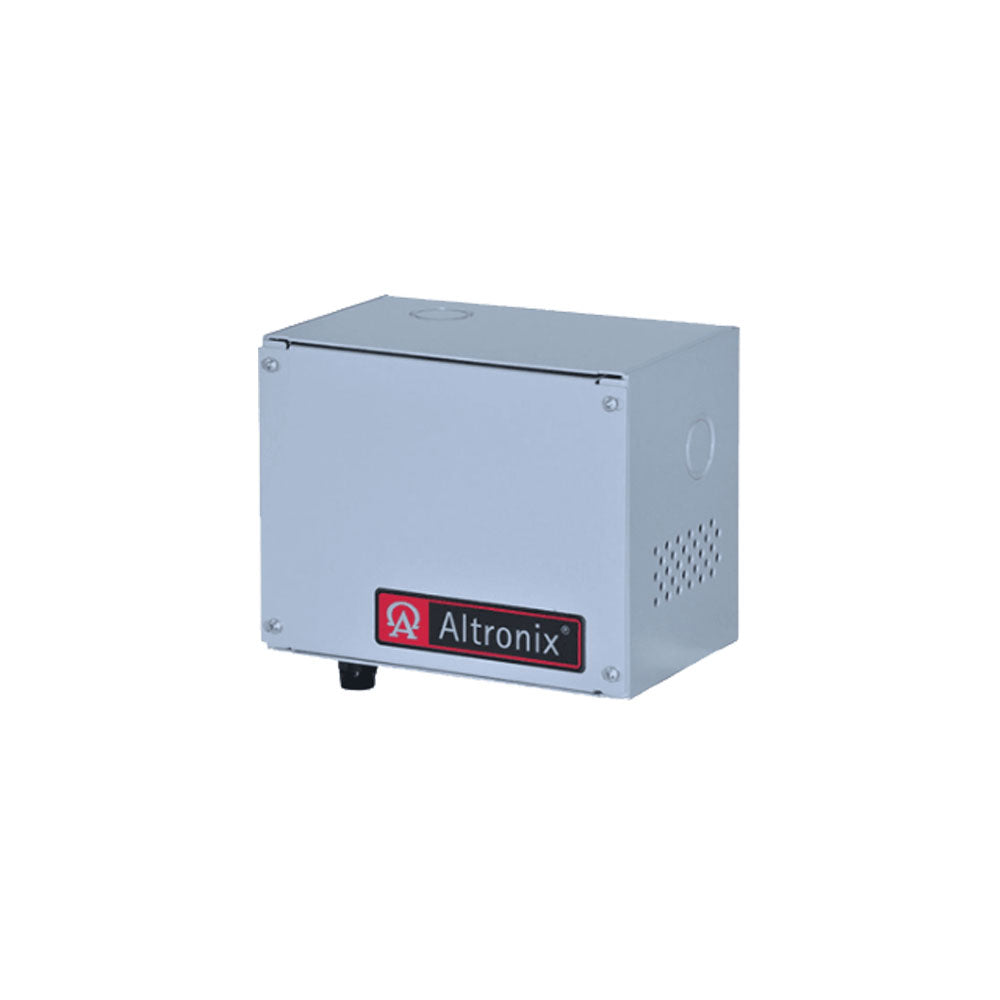

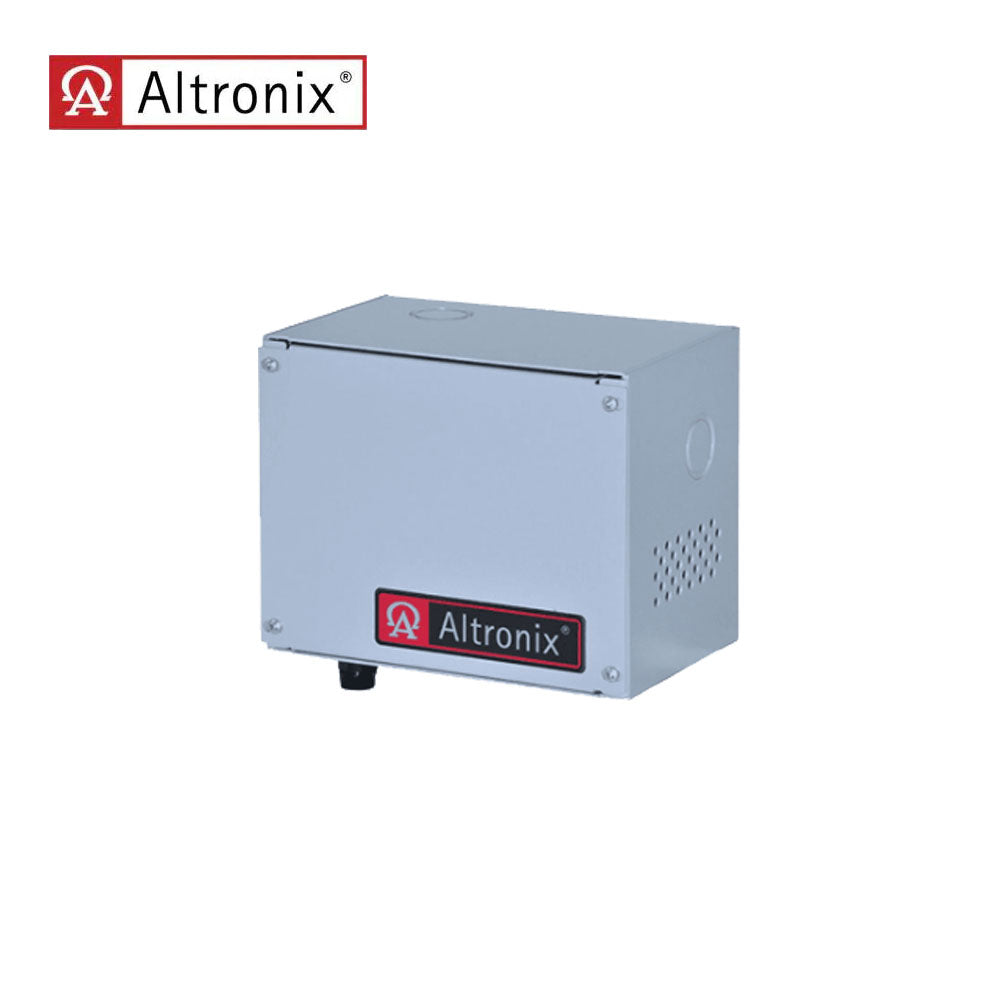

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 7"W x 5.62"H x 4.5"D (178 mm W x 143 mm H x 114 mm D).
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
