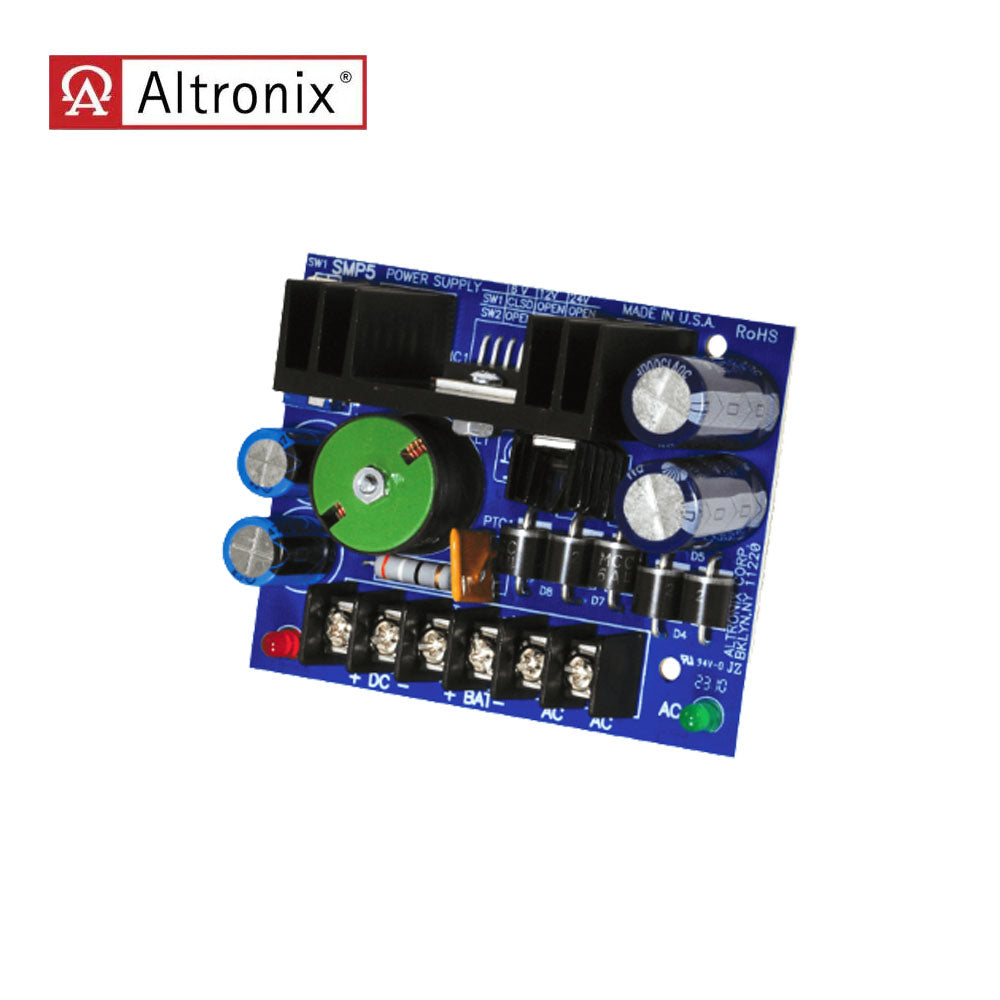

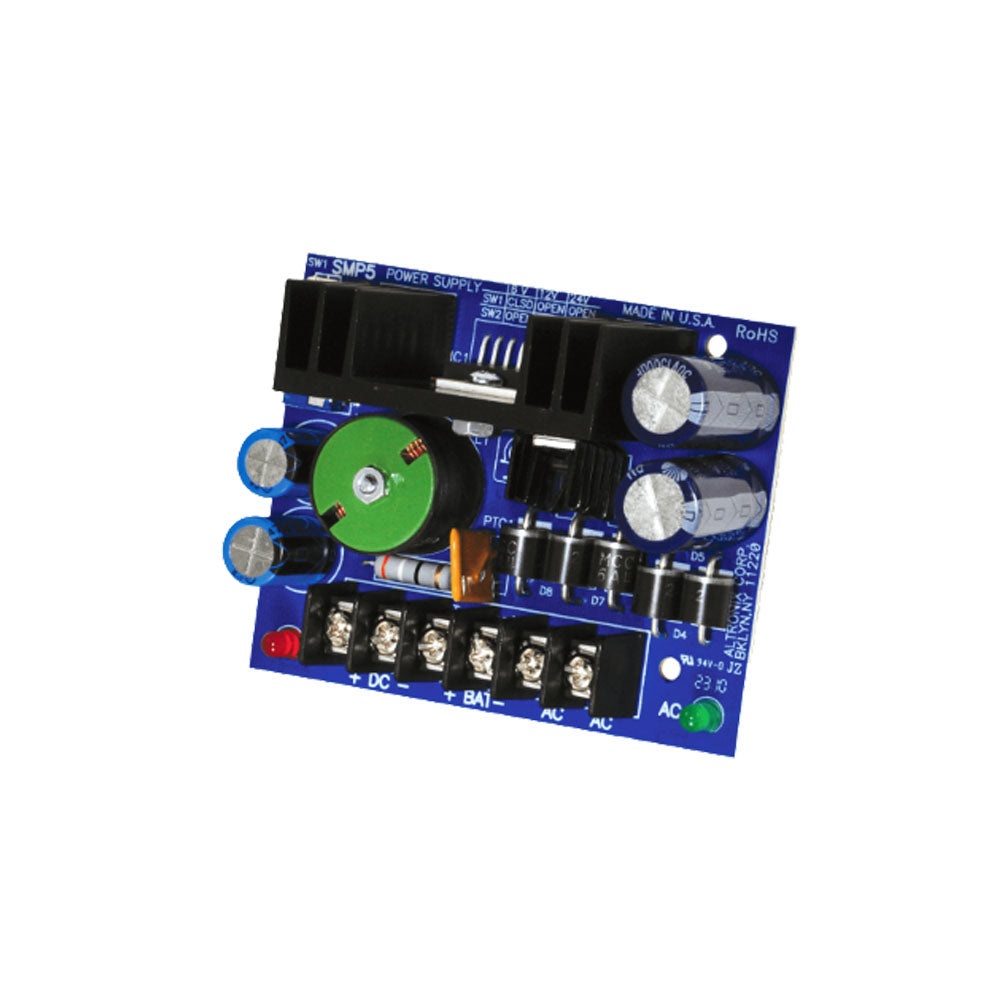

Altronix - SMP5 - Switching Power Supply Board - 6 or 12 or 24VDC at 4A Output

Altronix - SMP5 - Switching Power Supply Board - 6 or 12 or 24VDC at 4A Output

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Extremely compact design.
• Includes battery leads.
• Snap Trac compatible (order Altronix model number ST3).

Input:

• 6VDC applications use TP1640.
• 12VDC applications use T2428100.
• 24VDC applications use T2428175.

Output:

• 6VDC, 12VDC or 24VDC selectable output.
• 4A supply current.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Zero voltage drop when switching over to battery backup.

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating: 0�� C to 49�� C (32�� F to 120�� F).
• Storage: - 20�� C to 70�� C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  6VDC: 13 BTU/Hr.
  12VDC: 25 BTU/Hr.
  24VDC: 49 BTU/Hr.
• System AC input VA requirement:
  6VDC: 55.2VA.
  12VDC/24VDC: 115VA.

Dimensions (approximate):

• 3"W x 3.5"L x 2"H (76.2 mm W x 88.9 mm L x 50.8 mm H).

Download:

• Installation Instruction
