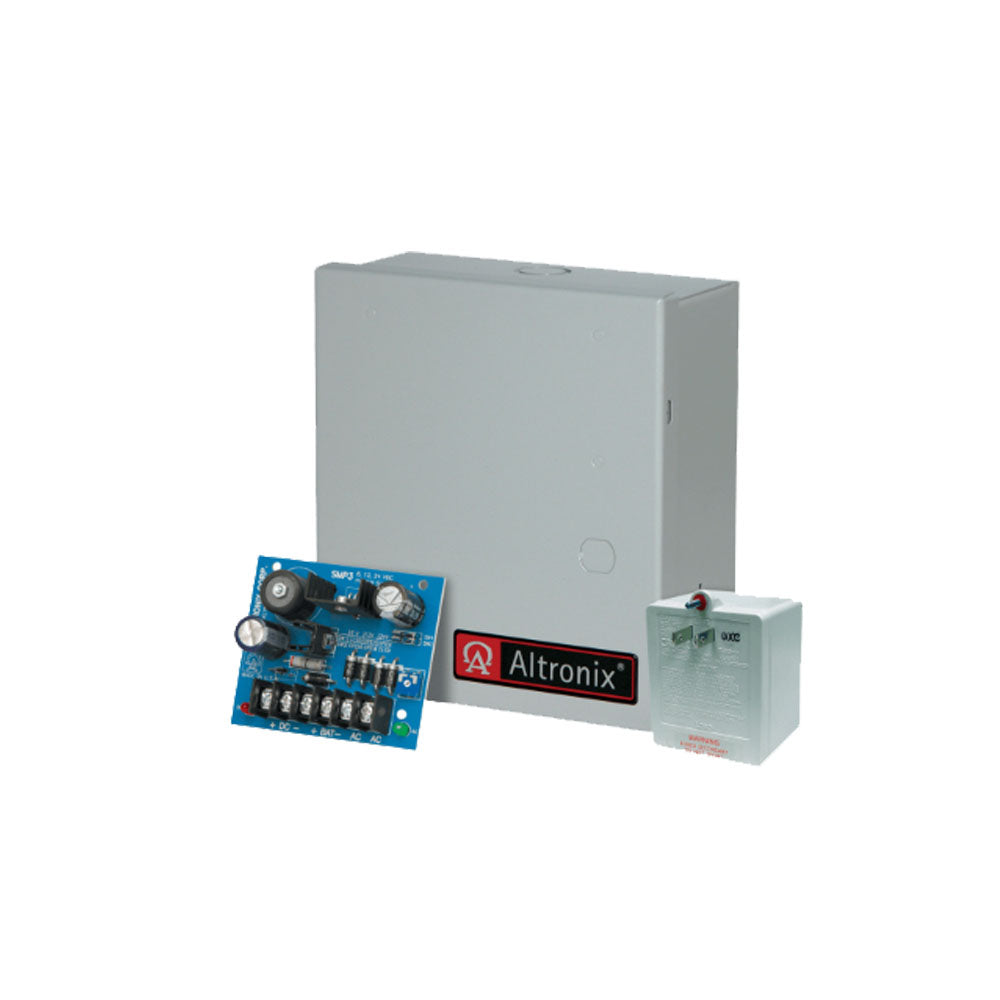

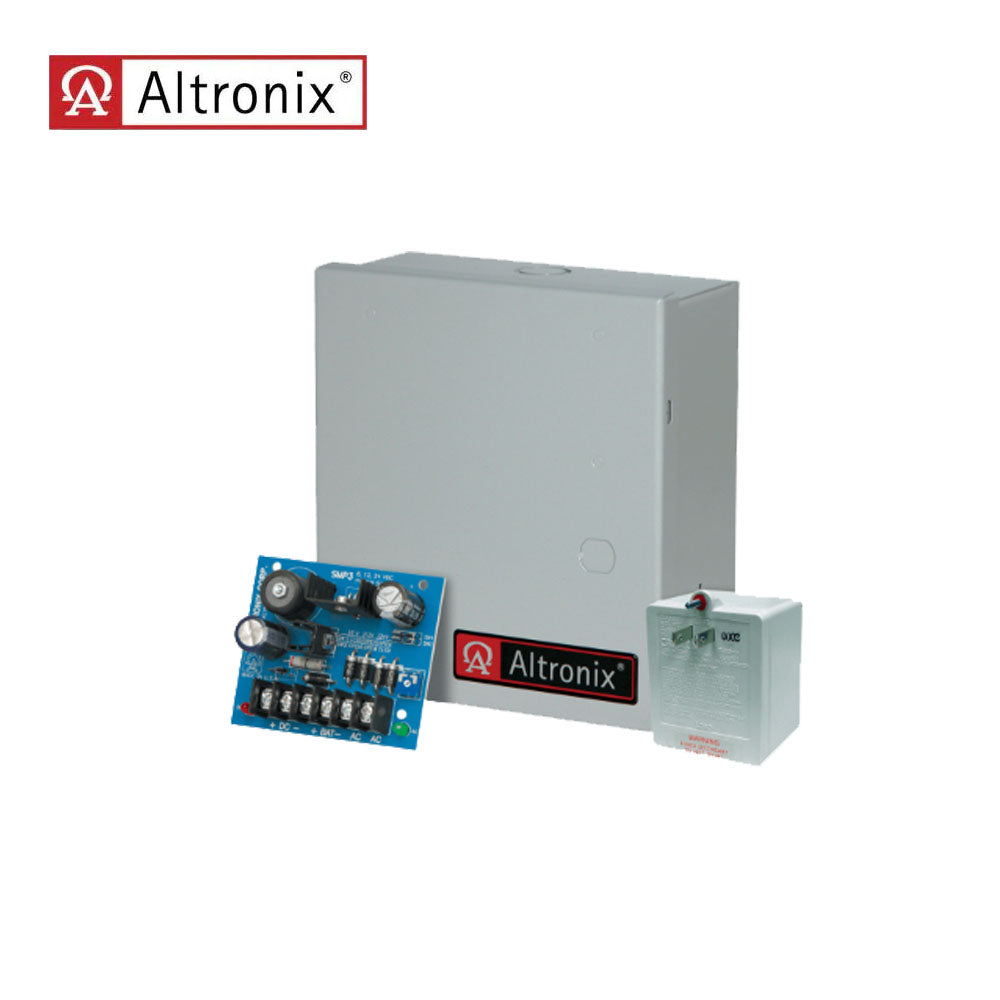

Altronix - SMP3ET - High Current Power Supply Charger with 16VDC Input from TP1640 Plug-in Transformer

Altronix - SMP3ET - High Current Power Supply Charger with 16VDC Input from TP1640 Plug-in Transformer

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 16VAC from TP1640 plug-in transformer.

Output:

• 6VDC, 12VDC selectable output.
• 2.5A continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Battery short circuit protection (circuit breaker).

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating: 0�� C to 49�� C (32�� F to 120�� F).
• Storage: - 20�� C to 70�� C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  6VDC: 8 BTU/Hr.
  12VDC: 15 BTU/Hr.

• System AC input VA requirement:
  6VDC/12VDC: 276VA.


Enclosure:

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/4AH Batteries.
• Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
