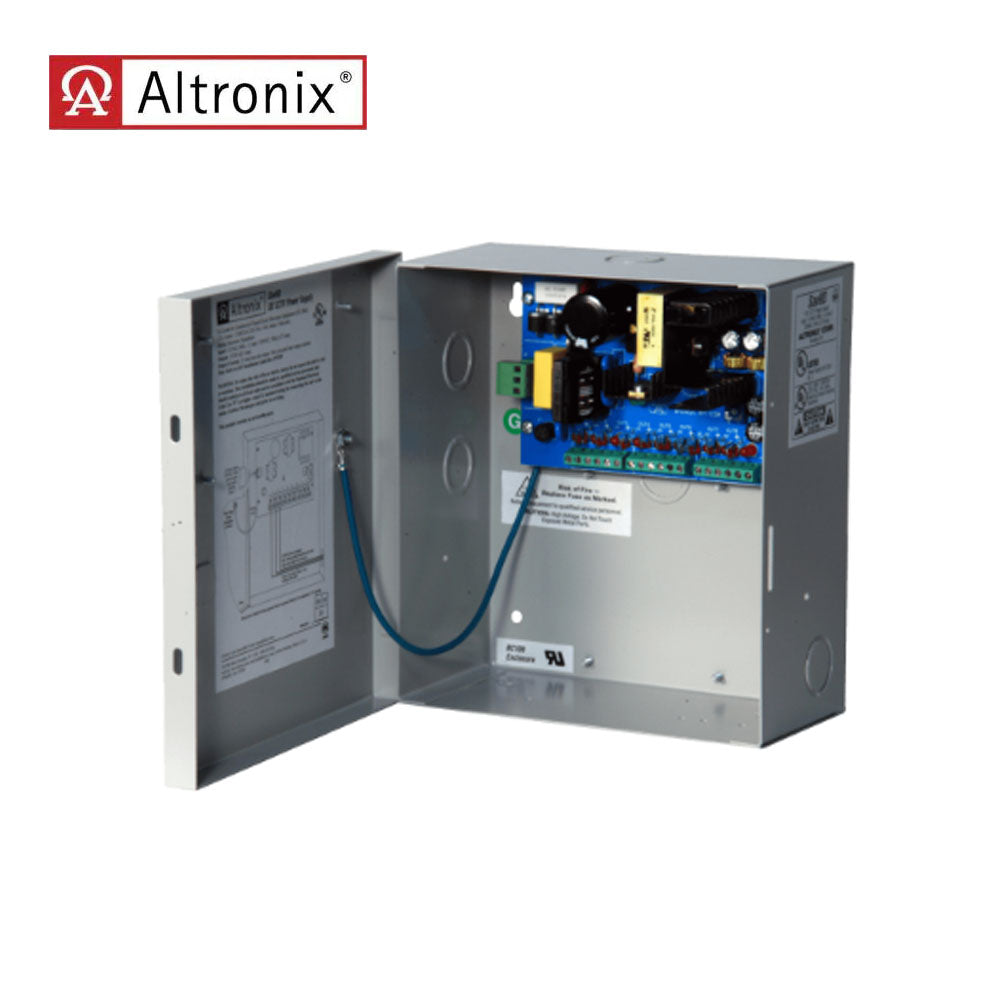

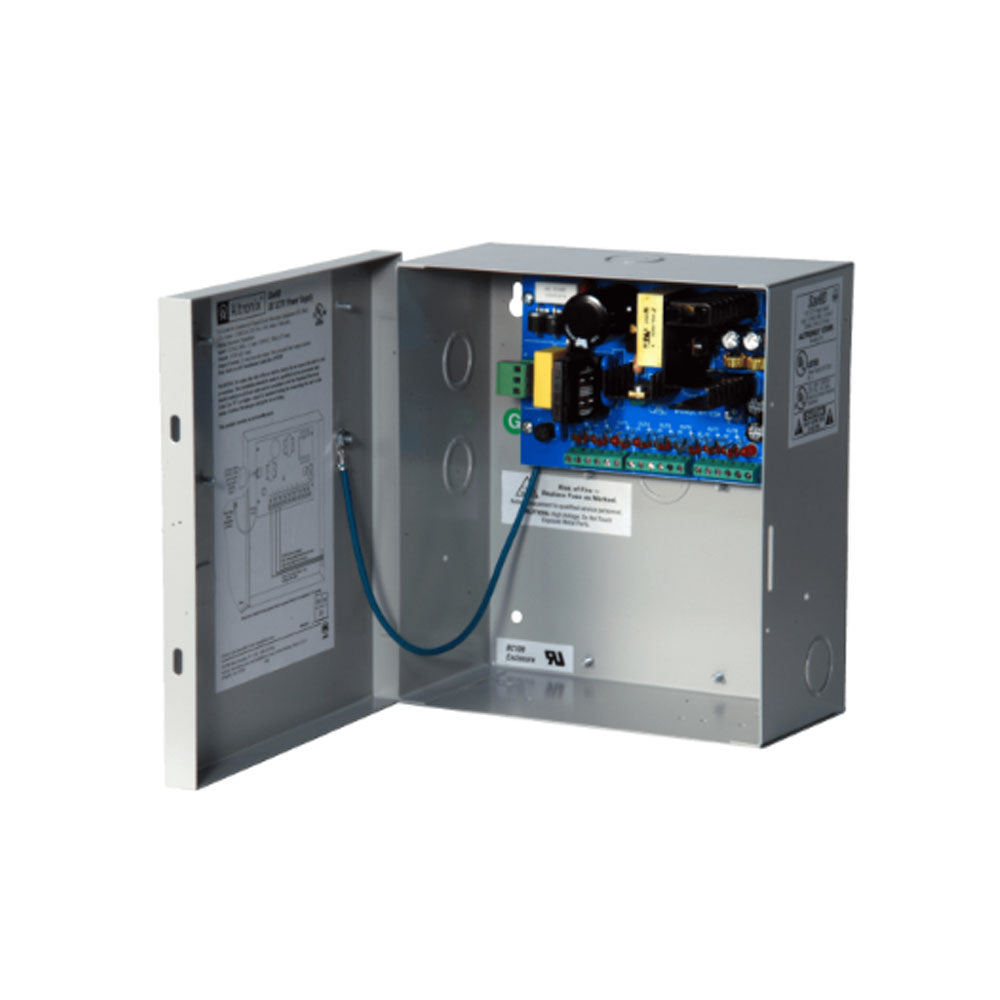

Altronix - SAV9D - CCTV DC Power Supply with 0.75A Input - 9 PTC Protected Class 2 Outputs 12VDC at 5A Max - Grey Enclosure

Altronix - SAV9D - CCTV DC Power Supply with 0.75A Input - 9 PTC Protected Class 2 Outputs 12VDC at 5A Max - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Four (4) power LEDs.
• Field installable 3-wire line cord with integral strain relief.
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates costly labor.

Input:

• 115VAC 60Hz, 1.5A / 230VAC 50Hz, 0.75A.

Output:

• 12VDC @ 5A total output current (0.55A per device, 2.5A max.).
• Nine (9) Class 2 Rated PTC protected power limited auto-resettable outputs.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.

Temperature:

• Operating: 0�� C to 49�� C (32�� F to 120�� F).
• Storage: - 20�� C to 70�� C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 31 BTU/Hr.
• System AC input VA requirement: 172.5VA.

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
