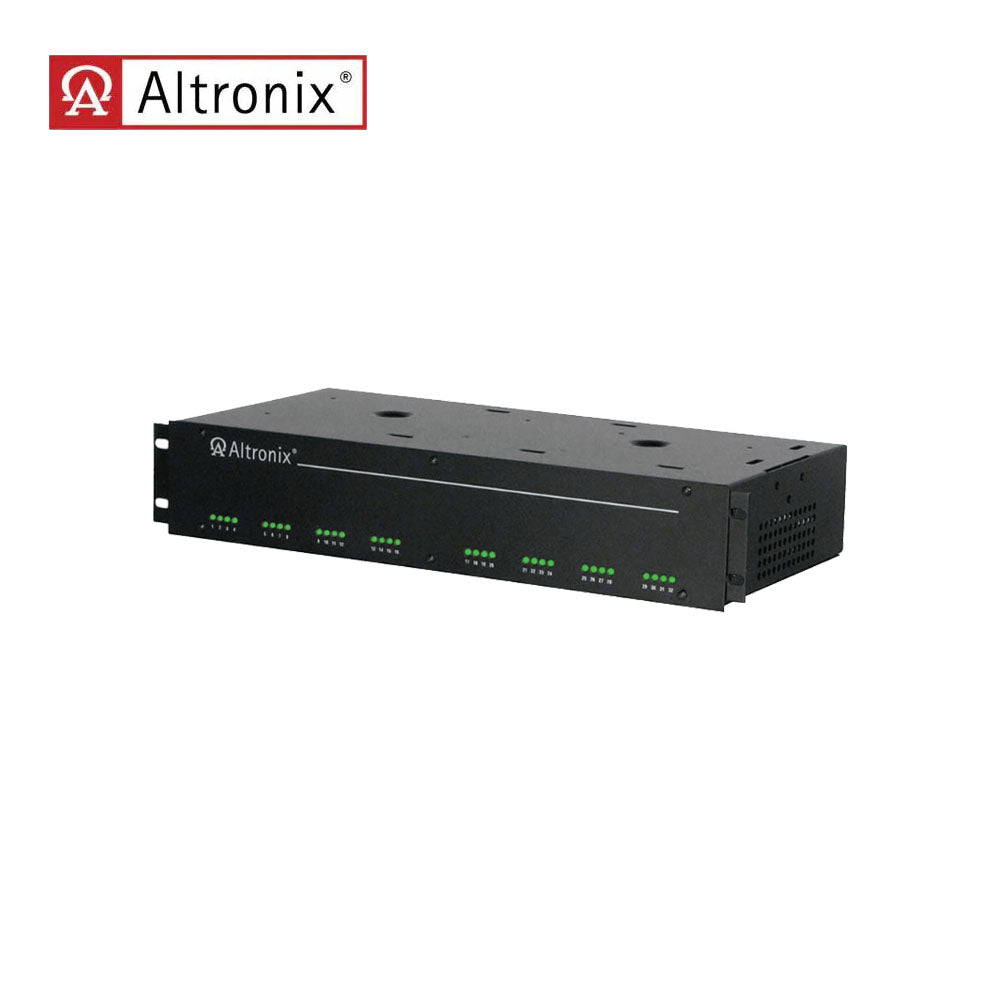

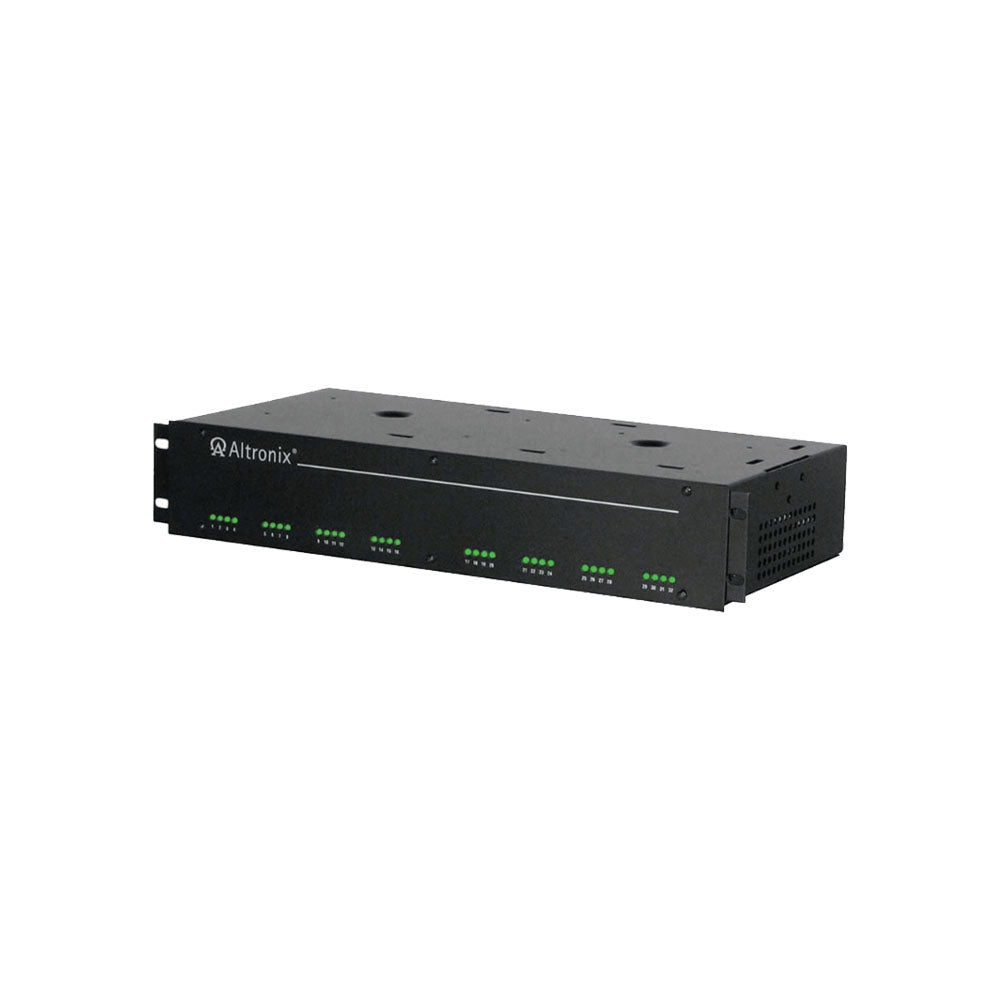

Altronix - R2432300UL - CCTV AC Rack Mount Power Supply - 32 PTC Protected Class 2 Outputs 24VAC at 12.5A or 28VAC at 10A

Altronix - R2432300ULCB - CCTV AC Rack Mount Power Supply - 32 PTC Protected Class 2 Outputs 24VAC at 12.5A or 28VAC at 10A

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Thirty-two (32) power LEDs.
• Illuminated master power disconnect circuit breaker with manual reset.
• 3-wire grounded line cord.
• Removable terminal blocks with locking screw flange.

Input:

• 115VAC, 50/60Hz, 3A.

Output:

• Thirty-two (32) PTC protected Class 2 Rated power limited outputs (auto-resettable).
• 24VAC @ 12.5A (300VA) supply current (0.39A per device, 2.5A max.) or 28VAC @ 10A (280VA) supply current (0.3125A per device, 2.5A max.).
• Outputs are rated @ 2.5A.
• Surge suppression.

Temperature:

• Operating: 0�� C to 55�� C (32�� F to 131�� F).
• Storage: - 20�� C to 70�� C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  24VDC: 154 BTU/Hr.
  28VDC: 143 BTU/Hr.
• System AC input VA requirement: 345VA

Enclosure:

• Modular 2U standard EIA 19" rack mount chassis.
• Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
• Allow 1/2U space on top and bottom of the unit for ventilation.

Download:

• Installation Instruction
