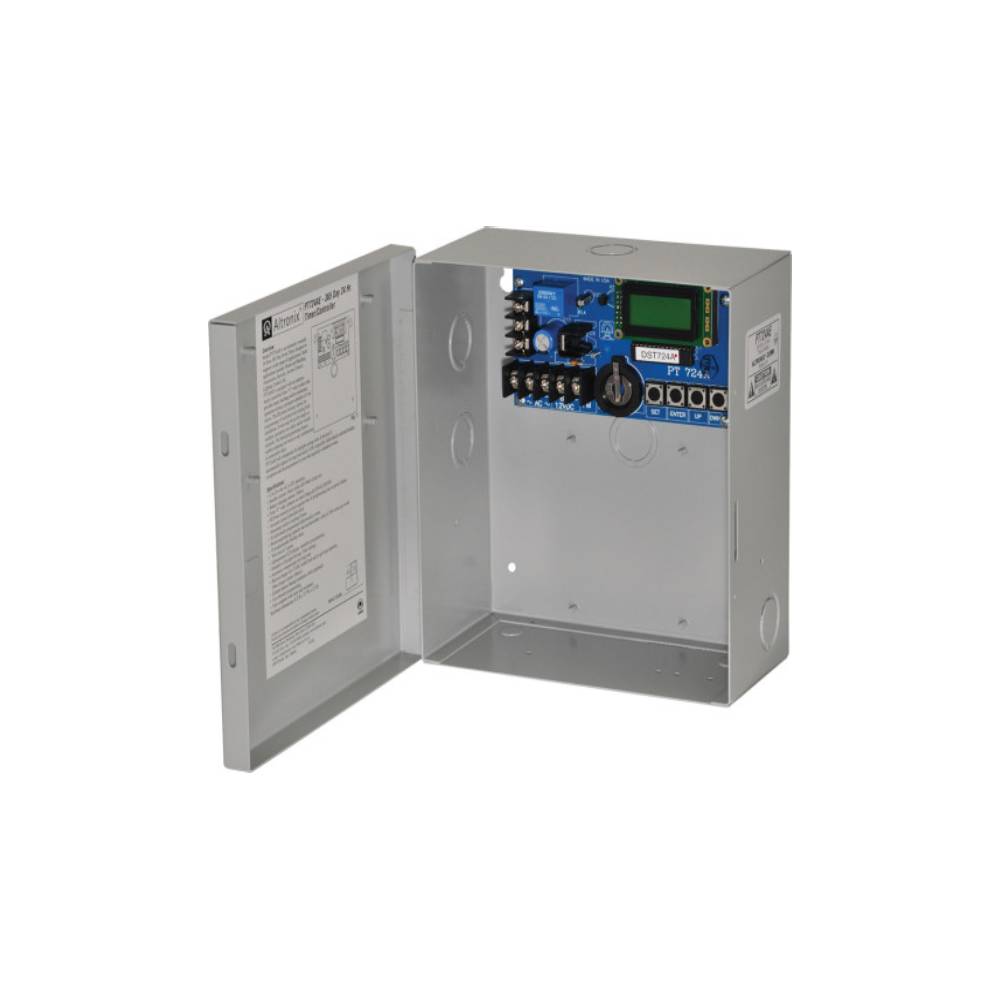

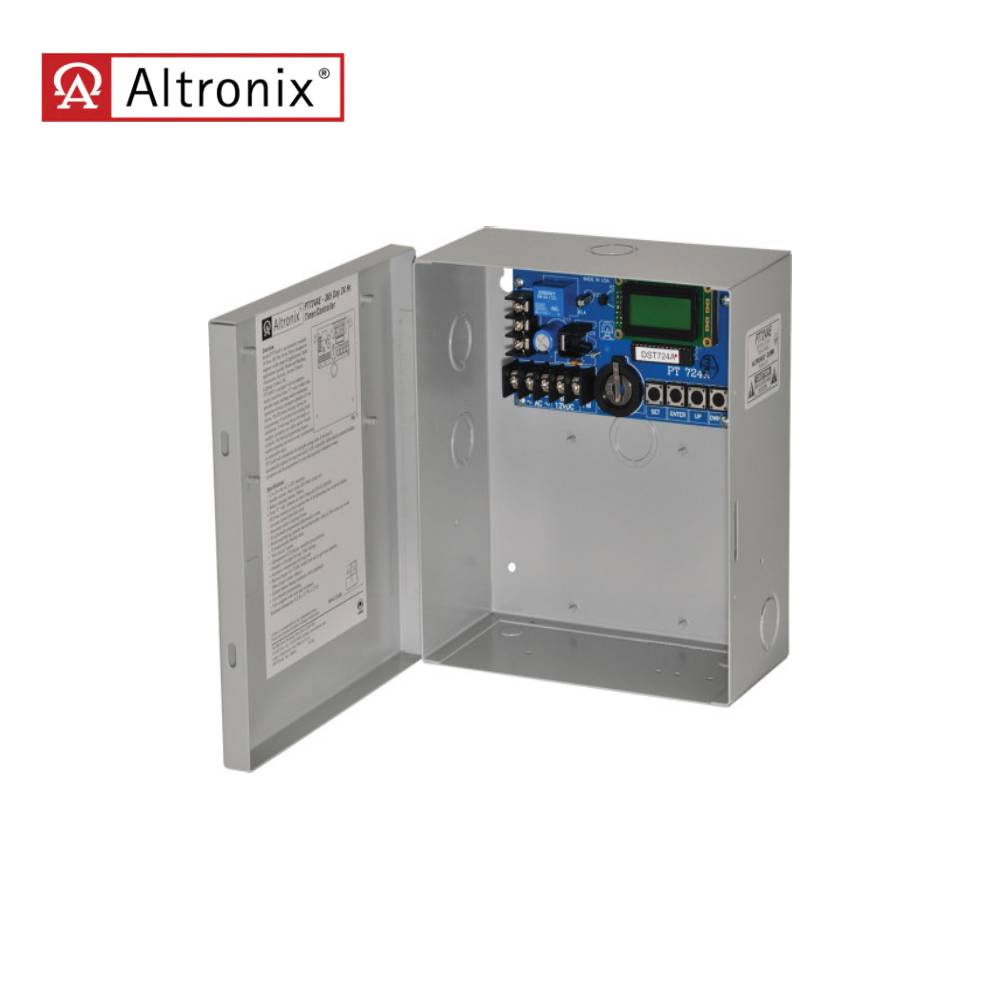

Altronix - PT724AE - Annual Event Timer - Grey Enclosure

Altronix - PT724AE - Annual Event Timer - Grey Enclosure

PT724AE is an extremely versatile 24 Hour 365 Day Event Timer designed to support a wide range of applications: Home and Building Automation, Security, Access Control, Lighting Control, Etc.

Features:

• 12 to 24 volts AC or DC operation.
• Form "C" relay contacts are rated 10A @ 120VAC/28VDC.
• Standby current: 10mA (relay off) 50mA (relay on).
• Accurate crystal controlled clock.
• Momentary and/or Latching Events.
• 50 individually programmed daily/weekly events.
• Block programming capacity can accommodate a total of 350 events per week.
• 10 programmable Holiday dates.
• "First man in" option.
• Standard or Daylight Savings Time settings.
• Automatic compensation for leap year.
• EE Prom memory protects against loss of programming due to power failure.

Product Specifications:

Download:

• Installation Instructions
