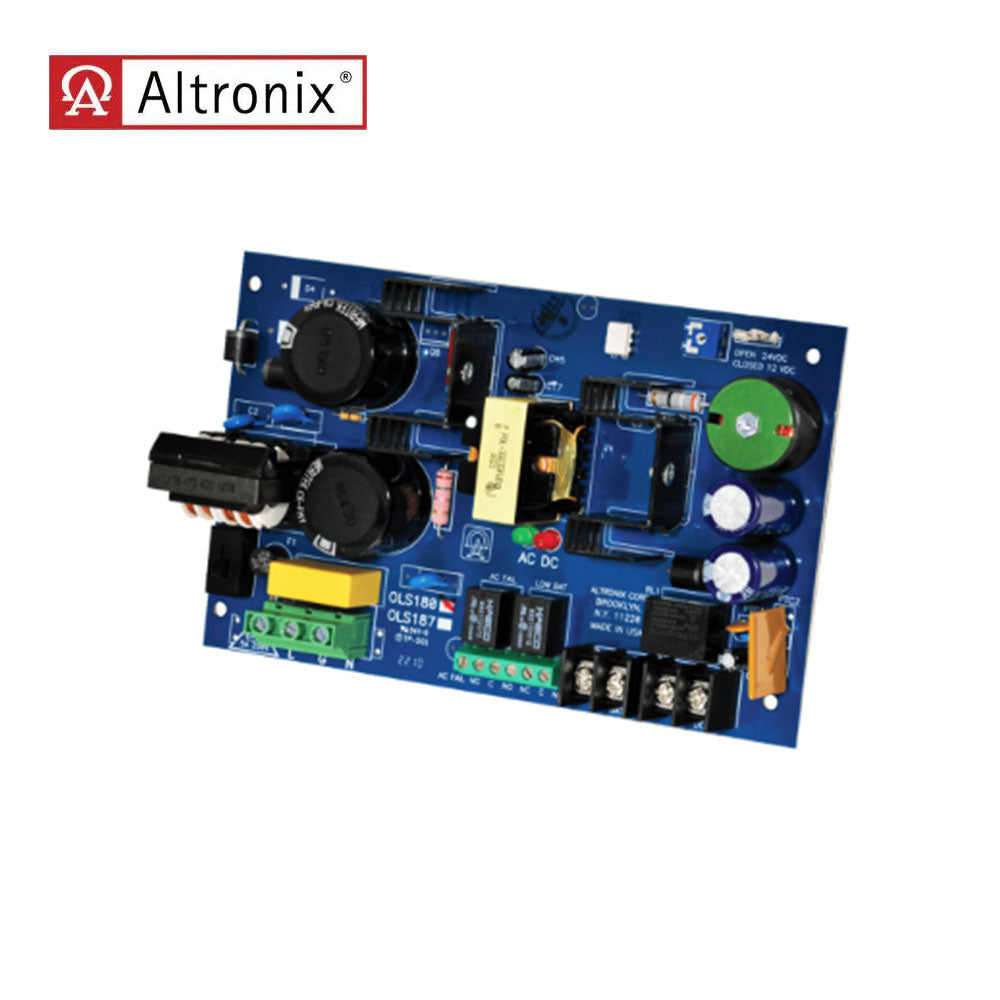

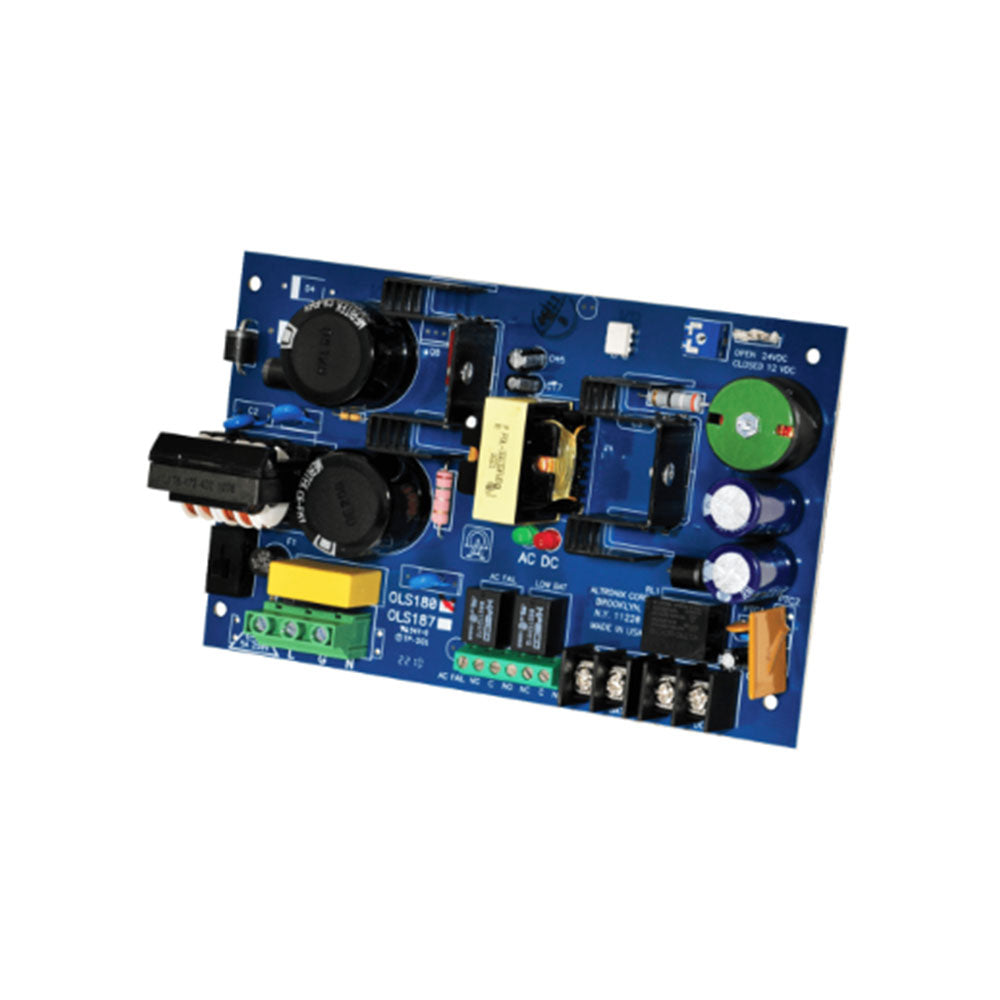

Altronix - OLS180 - Offline Switching Power Supply Board

Altronix - OLS180 - Offline Switching Power Supply Board with 12/24VDC at 6A Output

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 115VAC (working range 90VAC-132VAC), 50/60Hz, 1.9A.

Output:

• 12VDC or 24VDC selectable output.
• 6A continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Supervision:

• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Visual Indicators:

• AC input and DC output LED indicators.

Features:

• Power ON/OFF switch.
• Includes battery leads.

Temperature:

• Operating: 0�� C to 55�� C (32�� F to 131�� F).
• Storage: - 20�� C to 70�� C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  12VDC: 37 BTU/Hr.
  24VDC: 74BTU/Hr.
• System AC input VA requirement: 218.5VA.

Dimensions (approximate):

• 4.5"W x 7.25"L x 1.79"H (114.3 mm W x 184.15 mm L x 45.466 mm H).

Download:

• Installation Instruction
