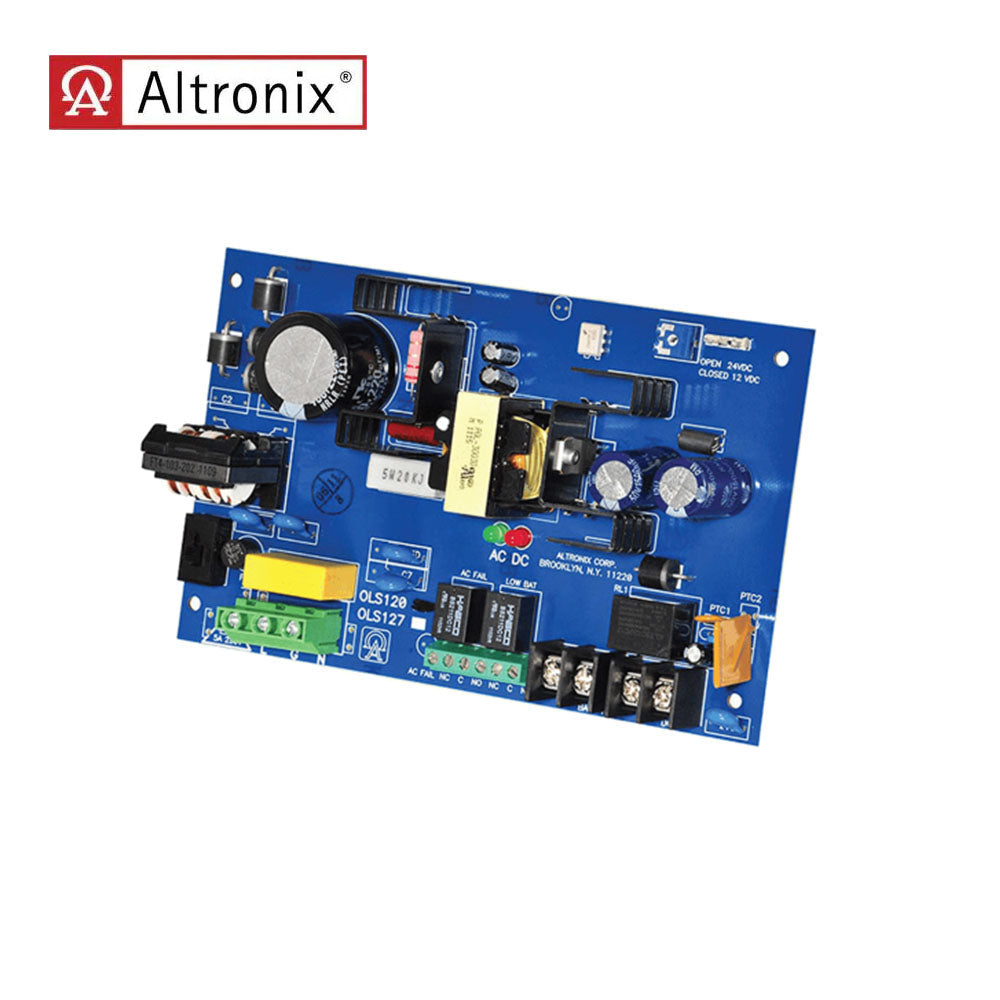

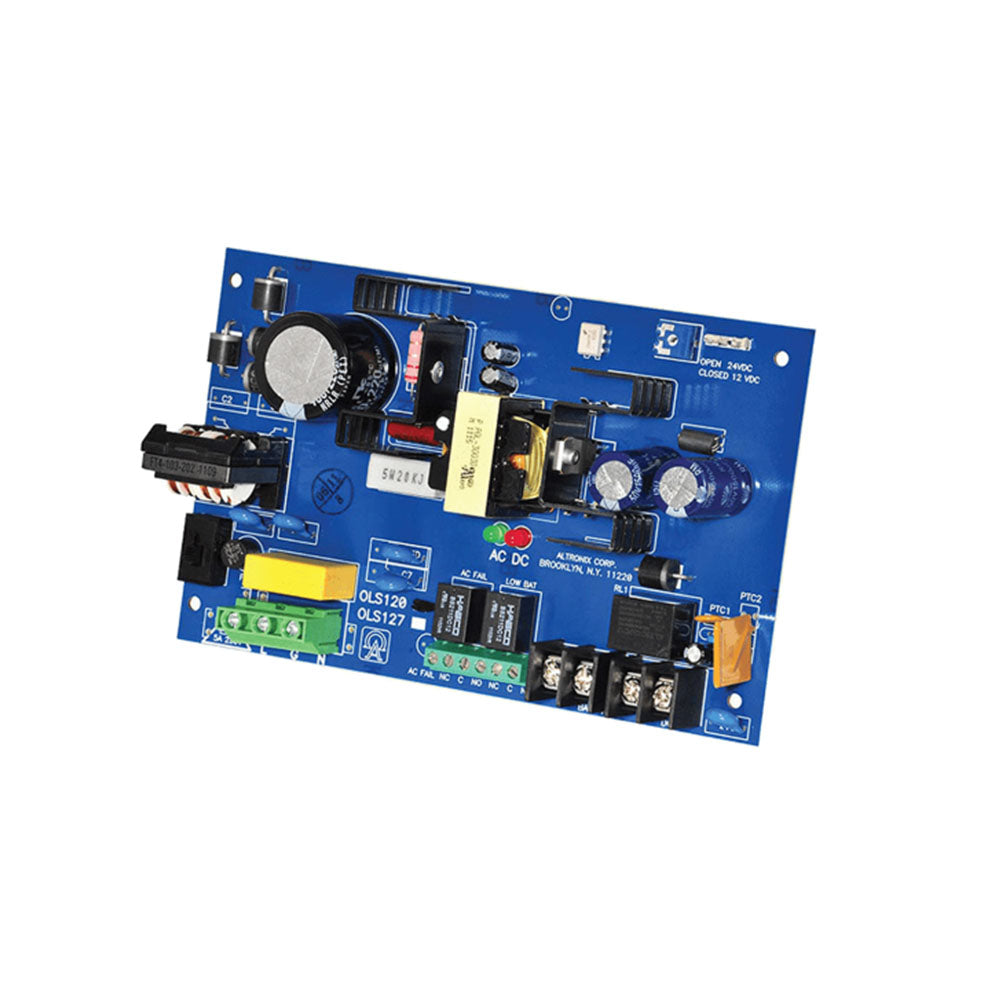

Altronix - OLS120 - Offline Switching Supervised Power Supply Charger

Altronix - OLS120 - Offline Switching Supervised Power Supply Charger

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Universal input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.6A.

Output:

• 12VDC or 24VDC selectable output.
• 4A continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Supervision:

• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Visual Indicators:

• AC input and DC output LED indicators.

Additional Features:

• Power ON/OFF switch.
• Includes battery leads.

Temperature:

• Operating: 0�� C to 55�� C (32�� F to 131�� F).
• Storage: - 20�� C to 70�� C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  12VDC:25 BTU/Hr.
  24VDC:49 BTU/Hr.
• System AC input VA requirement:
  115VAC: 109.25VA.
  230VAC: 138VA.

Dimensions (approximate):

• 4.51"W x 7.24"L x 1.77"H (114.55 mm W x 183.896 mm L x 44.958 mm H).

Download:

• Installation Instruction
