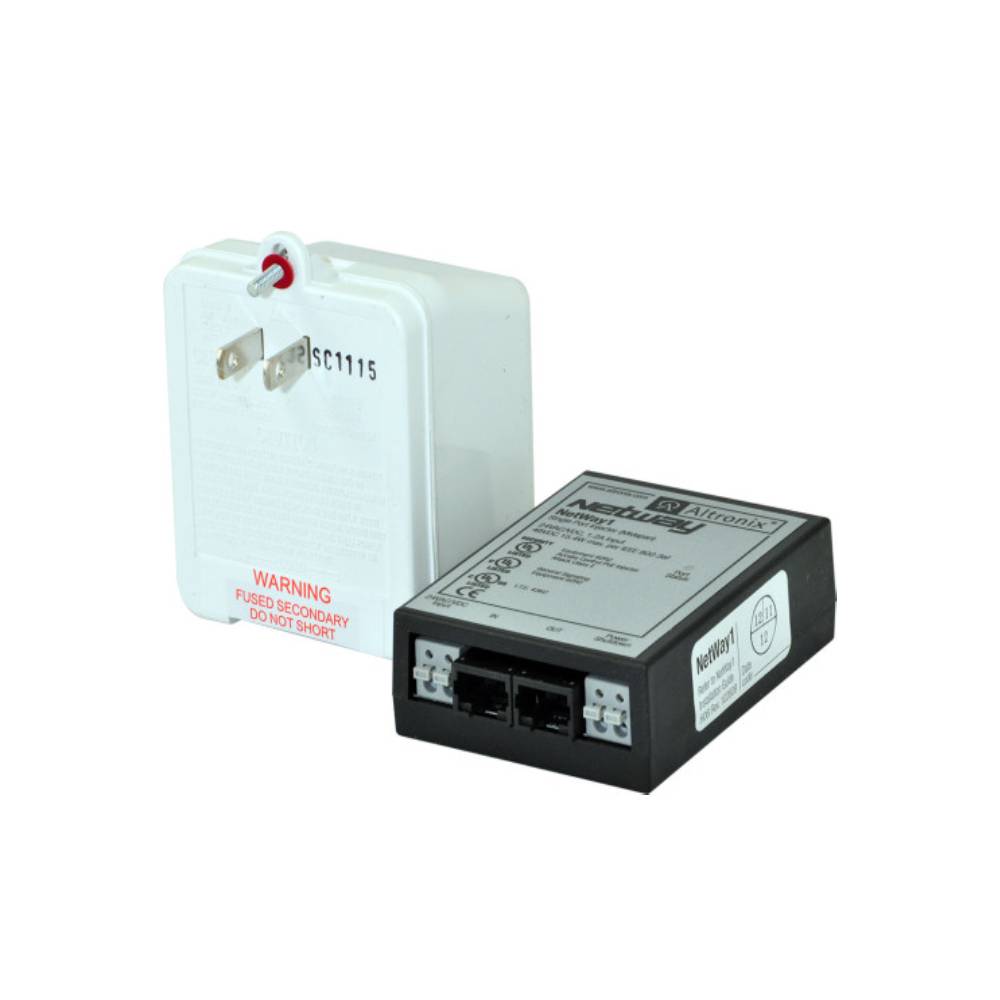

Altronix - NETWAY1P - Midspan Single Port Injector with TP2440 Plug Transformer

Altronix - NETWAY1P - Midspan Single Port Injector with TP2440 Plug Transformer

Altronix NetWay1 single port midspan PoE-compliant power injector provides power and passes data (e.g. video) for PoE-compliant devices. Devices may be located up to 100m from NetWay1. A NetWayXT repeater module can be utilized to extend the distance for an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device port requirement. NetWay1 is capable of supporting non- PoE compliant fixed IP cameras by utilizing NetWay1512 adapter. Altronix TP2440 UL Listed plug-in transformer provides 24VAC with 1.67A output current.

Features:

• Single Port 48VDC Up to 15.4W max.
• 24VAC/VDC input.
• TP2440 plug-in transformer (included).
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5e.
• Distance: up to 100m.
• Red LED: Port status.
• Yellow and Green LED (by RJ45 jack)
• IP Link status, 10/100Base-T/active.

Product Specifications:

Download:

• Installation Instructions
