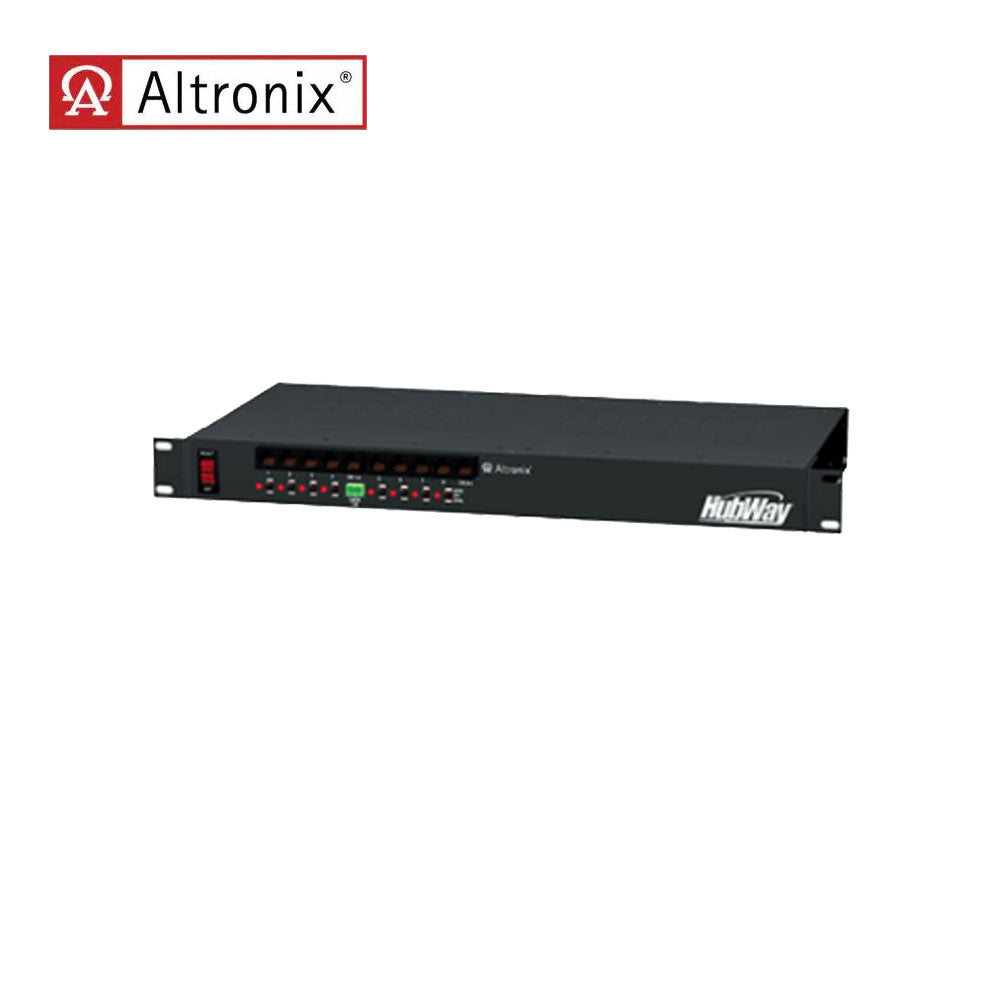

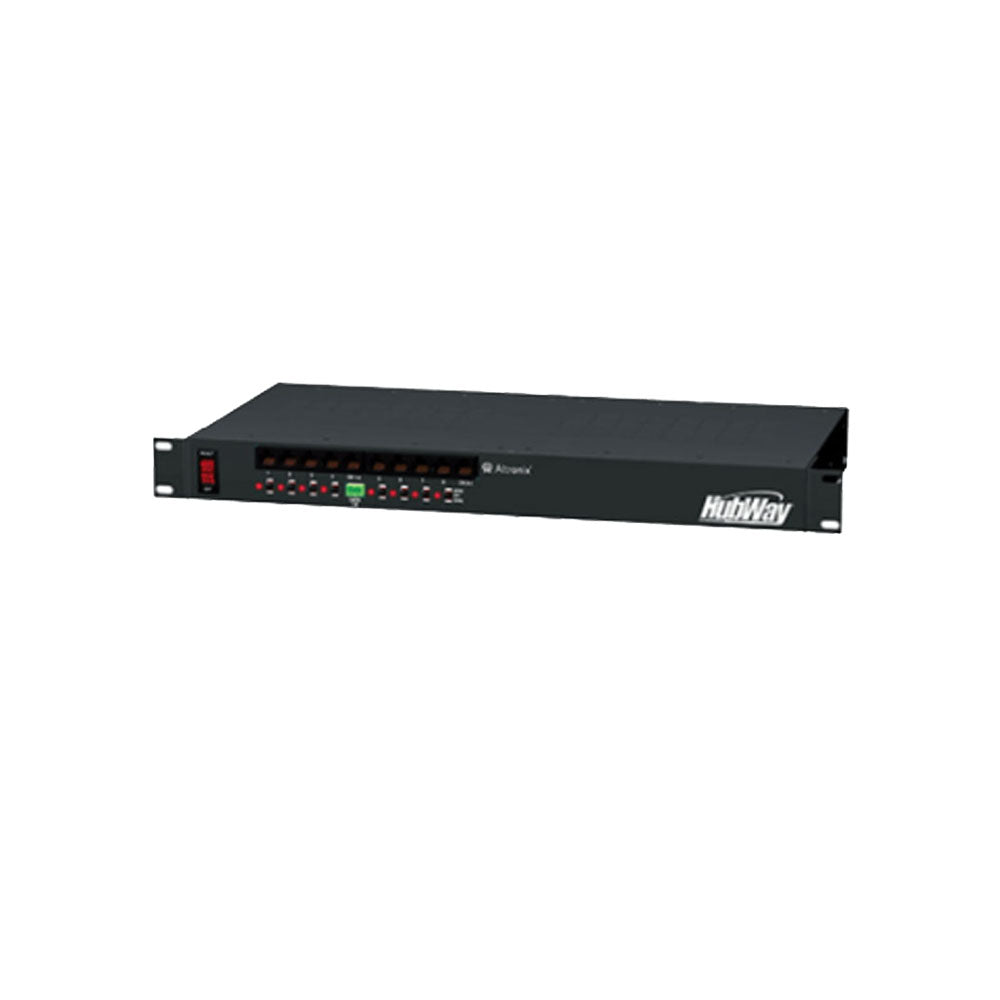

Altronix - HUBWAY8D - Passive UTP Transceiver Hub With Integral Camera Power - 8 PTC Protected Class 2 Power-Limited Outputs

Altronix - HUBWAY8D - Passive UTP Transceiver Hub With Integral Camera Power - 8 PTC Protected Class 2 Power-Limited Outputs

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Voltage: 115VAC, 60Hz, 1.5A or 230VAC, 50/60Hz, 1A.

Output:

• PTC protected electronically isolated outputs rated 1A per channel.
• Voltage: Individually selectable 24VAC or 28VAC power outputs with OFF position.
• Current: Up to 1A max. per channel, not to exceed a total of 5A maximum current.
• Other: Surge suppression.

Video:

• Eight (8) channels of video over twisted pair up to a distance of 228.6m (750 ft.) per channel.
• Eight (8) 75 Ohm video outputs.

Data:

• RS422/RS485 data inputs.

Indicators (LED):

• Outputs: Eight (8) individual power LED indicators.

Temperature:

• Operating: 0�� C to 49�� C (32�� F to 120�� F).
• Storage: - 20�� C to 70�� C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  24VDC: 61 BTU/Hr.
  28VAC: 72 BTU/Hr.

Enclosure:

• Modular 1U standard EIA 19" rack mount chassis.
• Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).

Download:

• Installation Instruction
