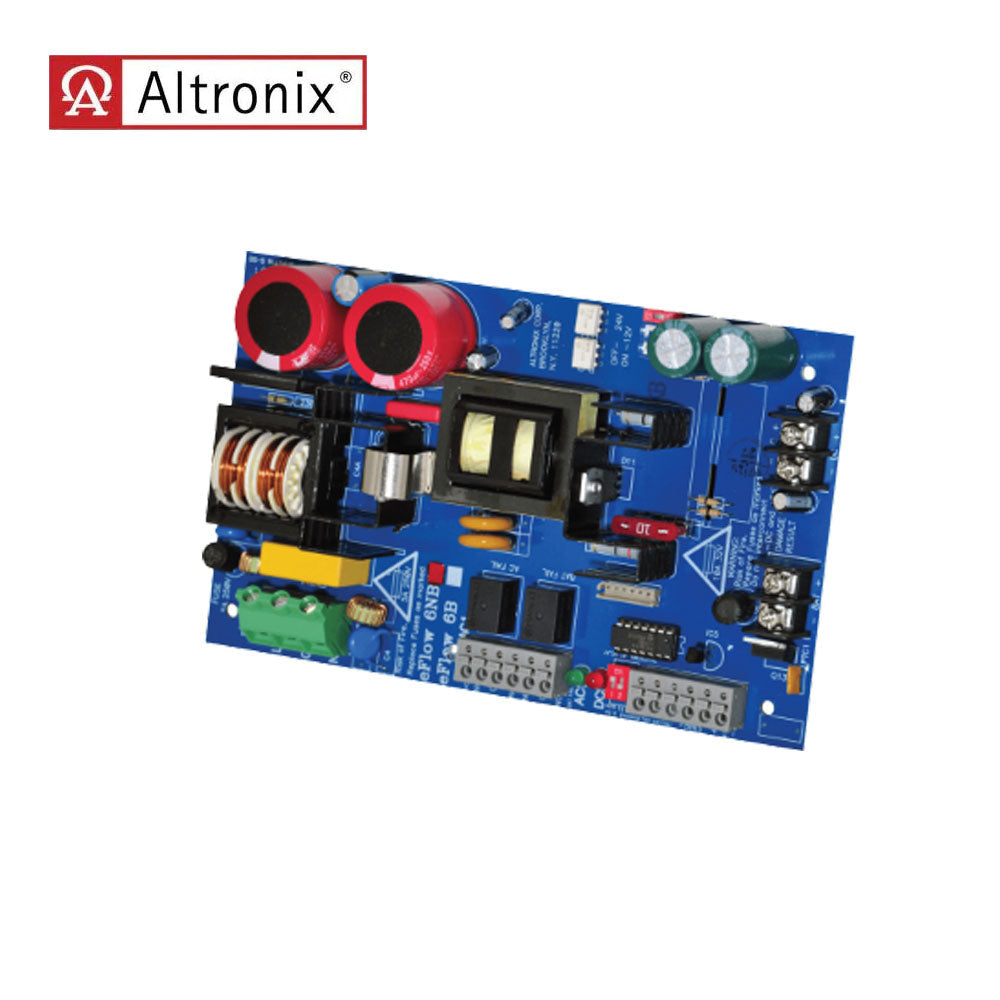

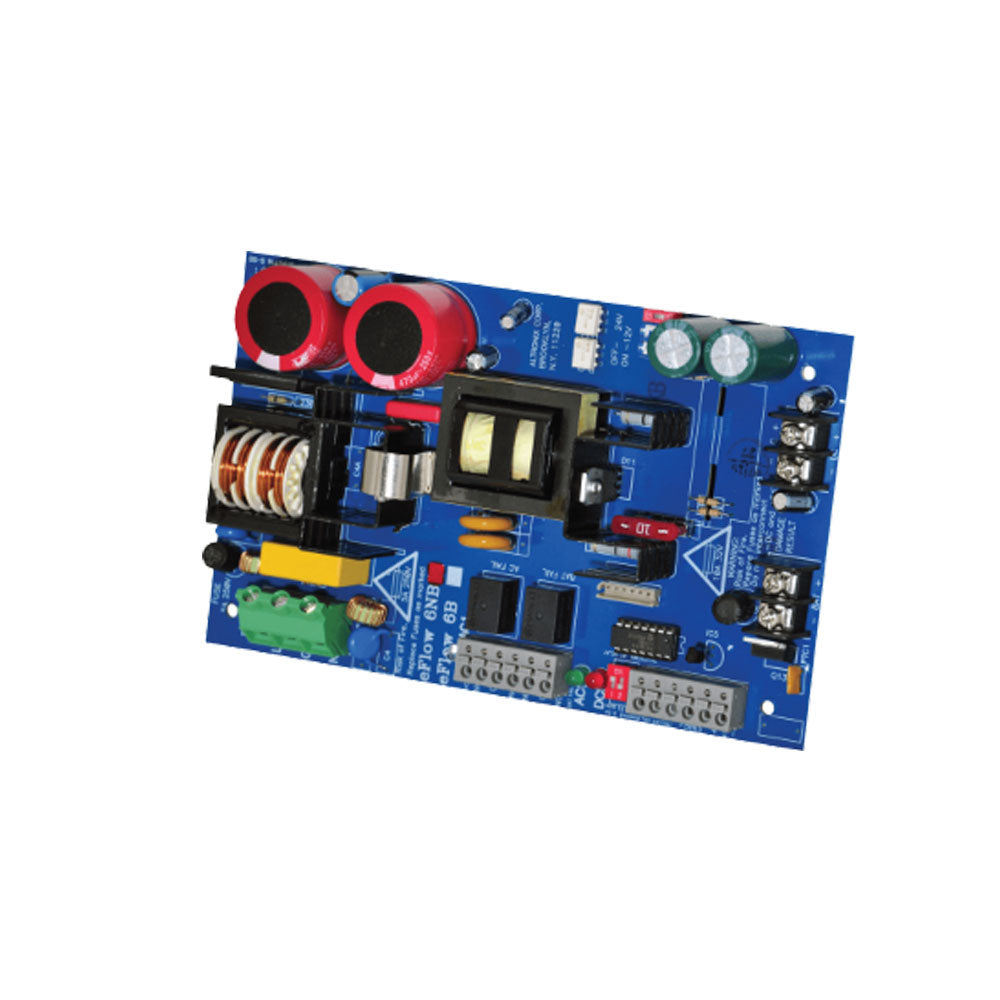

Altronix - EFLOW6NB - Power Supply Charger Board with Single Output

Altronix - EFLOW6NB - Power Supply Charger Board with Single Output

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input 120VAC 60Hz, 3.5A.

Output:

• 12VDC or 24VDC selectable output.
• 6A continuous supply current.
• Aux. power-limited output rated @ 1A (unswitched).
• Over Voltage Protection.
• Filtered and electronically regulated outputs.

Fire Alarm Disconnect:

• Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

Supervision:

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
• Battery fail and presence supervision (form "C" contacts).
• Low power shutdown. Shuts down DC output terminals if battery voltage drops below 80% of nominal. Prevents deep battery discharge.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.

Temperature:

• Operating: 0�� C to 49�� C (32�� F to 120�� F).
• Storage: - 20�� C to 70�� C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  12VDC: 37 BTU/Hr.
  24VDC: 74 BTU/Hr.
• System AC input VA requirement: 420VA.

Visual Indicators:

• Green AC Power LED indicates 120VAC present.
• AC input and DC output LED indicators.

Additional Features:

• Short circuit and overload protection.
• Unit is complete with power supply, enclosure, battery leads and cam lock.

Dimensions (approximate):

• 4.6"W x 7.5"L x 1.75"H (116.84 mm W x 190.5 mm L x 44.45 mm H).

Download:

• Installation Instruction
