Altronix - EFLOW3NX - Power Supply Charger with Single Output - BC400 Enclosure

Altronix - EFLOW3NX - Power Supply Charger with Single Output - BC400 Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 120VAC, 60Hz, 3.5A.
• Input fuse: 5A/250V.

Output:

• 12VDC or 24VDC selectable output.
• 12VDC or 24VDC @ 2.0A supply current.
• Class 2 power-limited output.
• Auxiliary Class 2 power-limited output rated @ 1A (unswitched).
• Ripple voltage: 960mV.
• Overvoltage Protection.

Fire Alarm Disconnect:

• Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

Supervision:

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
• Battery fail and presence supervision (form "C" contacts).
• Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.

Temperature:

• Operating: 0�� C to 49�� C (32�� F to 120�� F).
• Storage: - 20�� C to 70�� C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  12VDC: 12 BTU/Hr.
  24VDC: 25 BTU/Hr.
• System AC input VA requirement: 420VA.

Visual Indicators:

• Green AC Power LED indicates 120VAC present.
• AC input and DC output LED indicators.

Additional Features:

• Short circuit and overload protection.

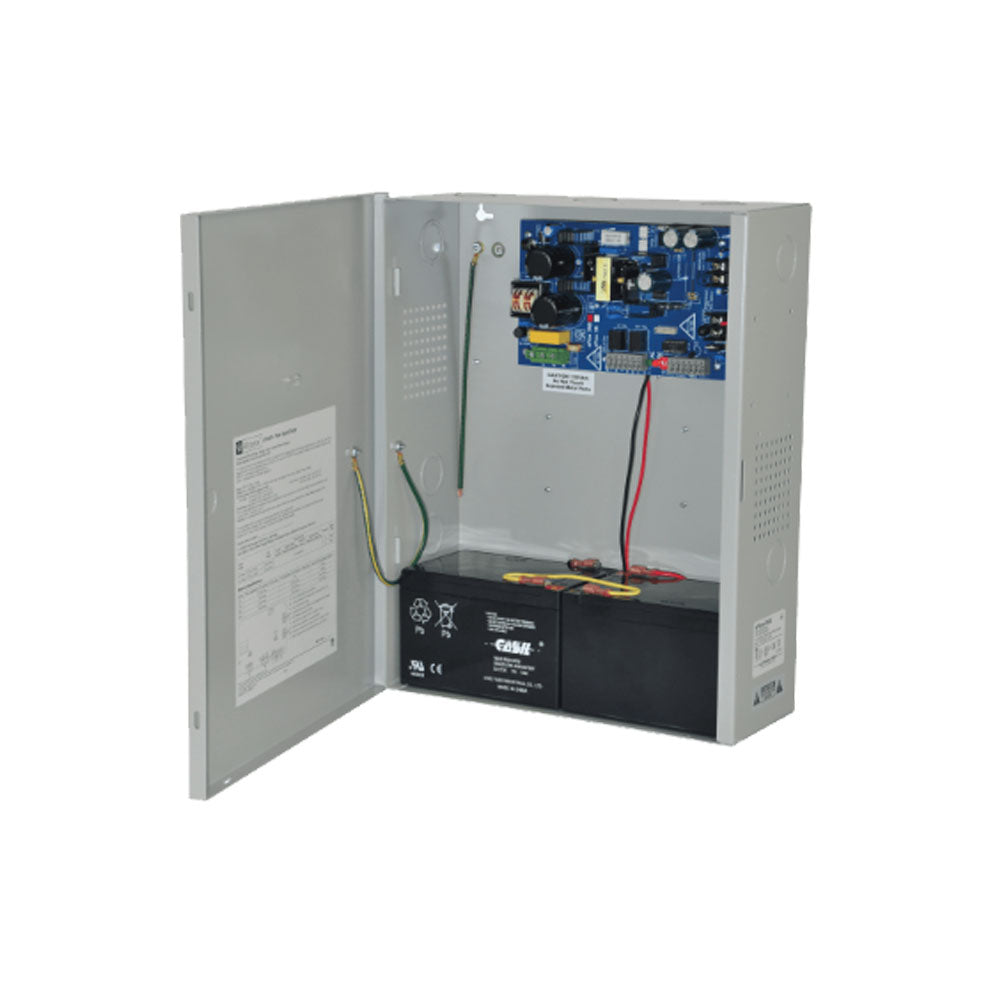

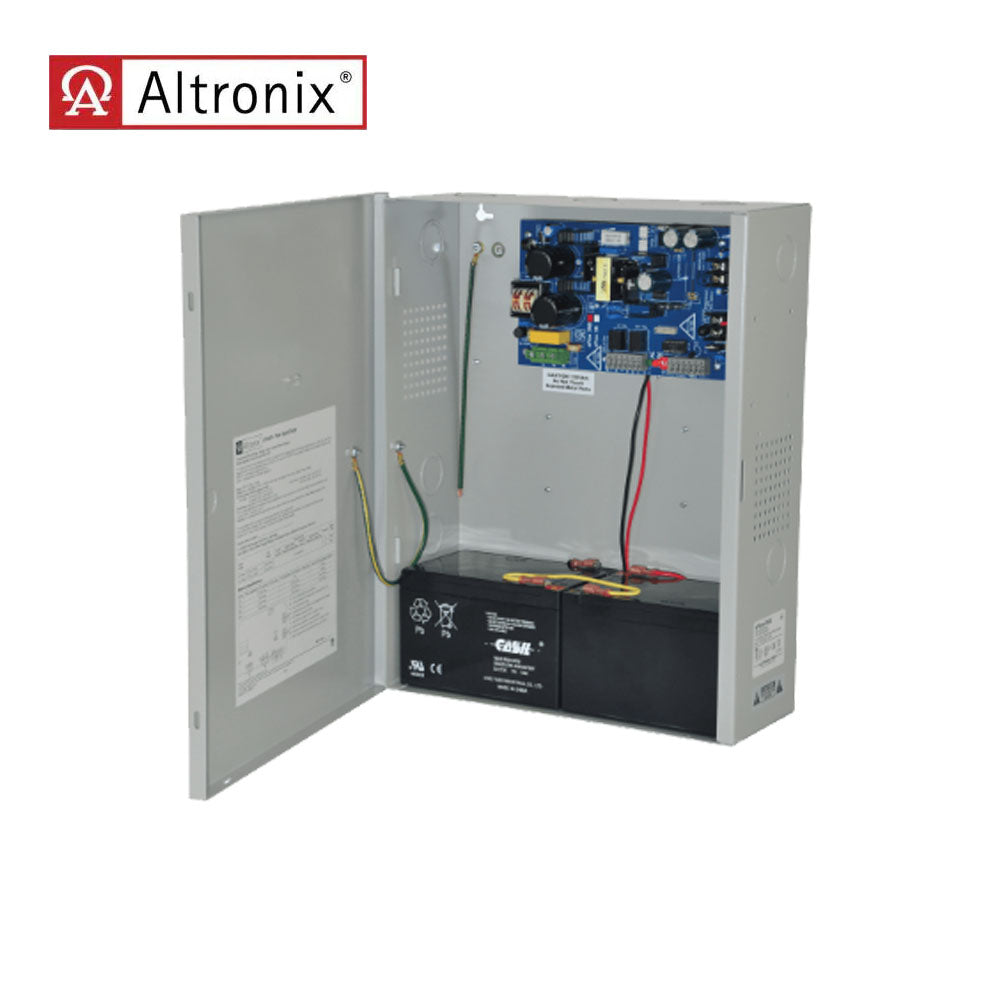

• Unit is complete with power supply, enclosure, battery leads and cam lock.

Enclosure:

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
• 1.125" and 1.375" combination knockouts.

Download:

• Installation Instruction
