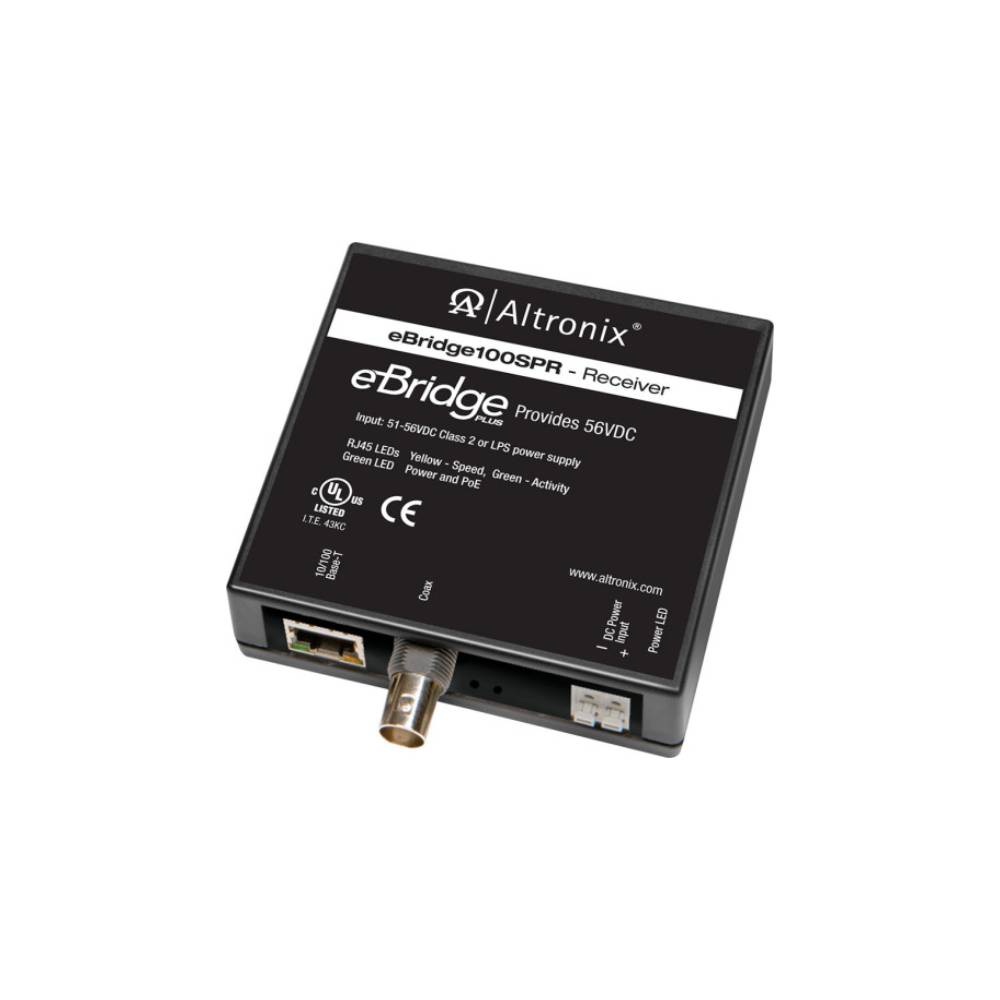

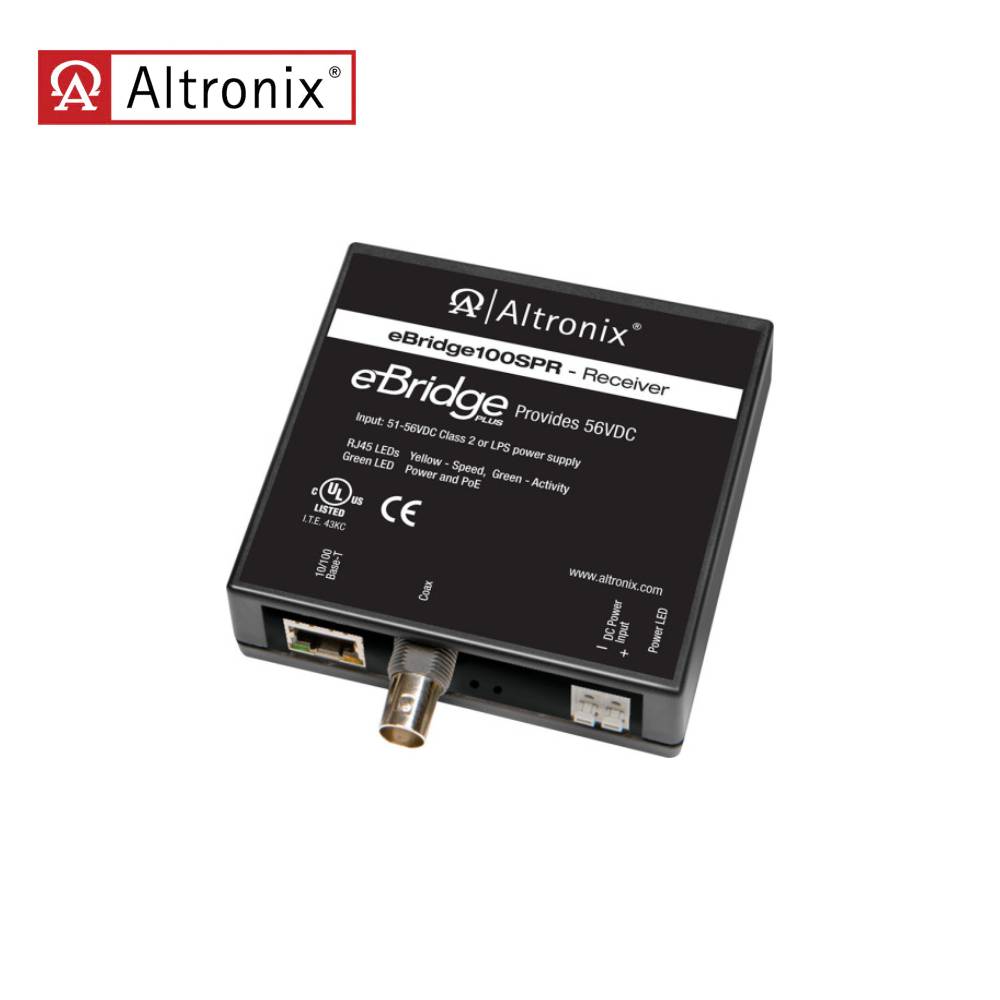

Altronix - EBRIDGE-100SPR - EOC Single Port Receiver 100Mbps

Altronix - EBRIDGE-100SPR - EOC Single Port Receiver 100Mbps

The eBridge100SPR passes data and sends power over the coax to the eBridge200WPM 2-port Outdoor Transceiver. Data transmission and power over the Coax is possible up to 300m. Maximum range from head end to the PoE camera/device is 500m taking into consideration that up to 100m of structured cable may be deployed at each end. Built in IP management allows for remote camera reset, monitoring and reporting via various IP protocols.

Features:

• 51-56VDC/60W max. power input.
• Total output power: 60W.
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair Cat-5 or better structured cable.
• Distance: up to 100m.
• Speed: 100BaseT, full duplex, auto negotiation.
• Distance: up to 300m.
• Connectivity: BNC, RG-59/U or similar.
• Throughput is rated 100Mbps full duplex.
• Blue LED - Coax link connection.
• Green LED - Power.
• Yellow and Green LED (RJ45) IP Link status, 100Base-T/active.

Product Specifications:

Download:

• Installation Instructions
