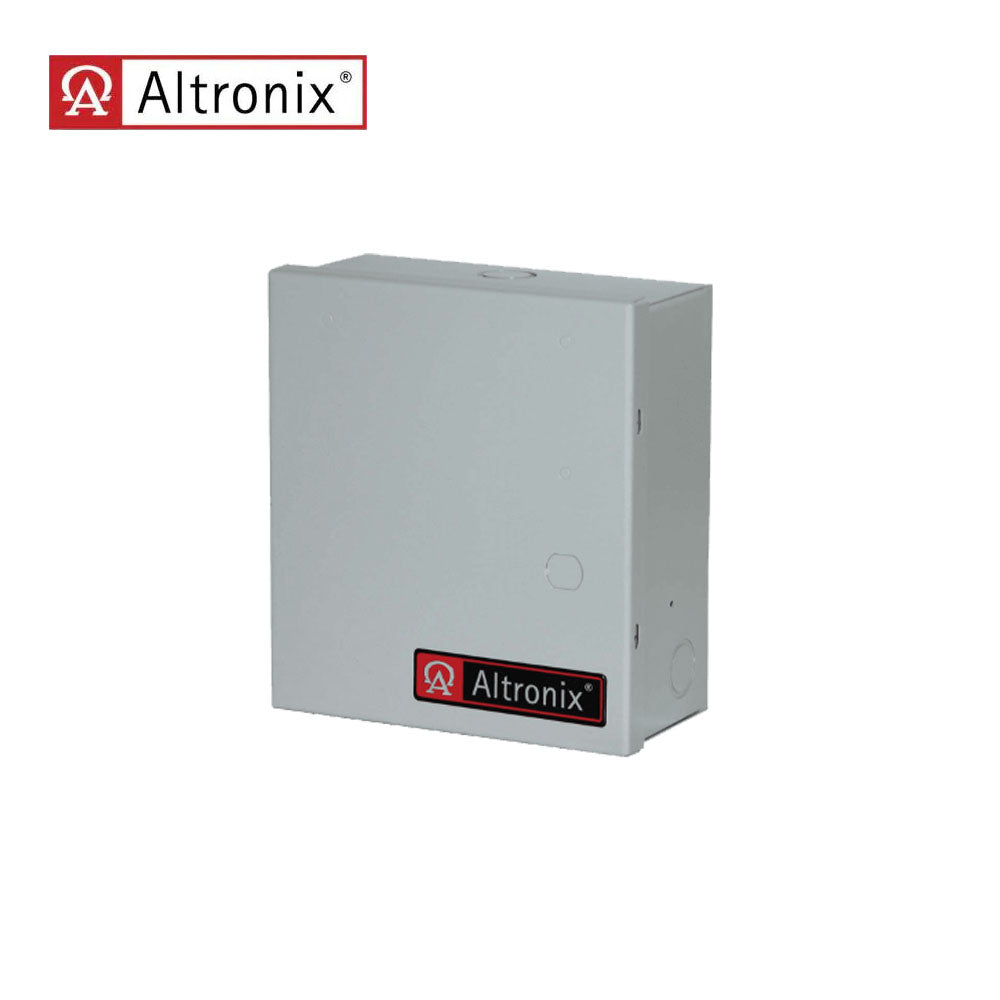

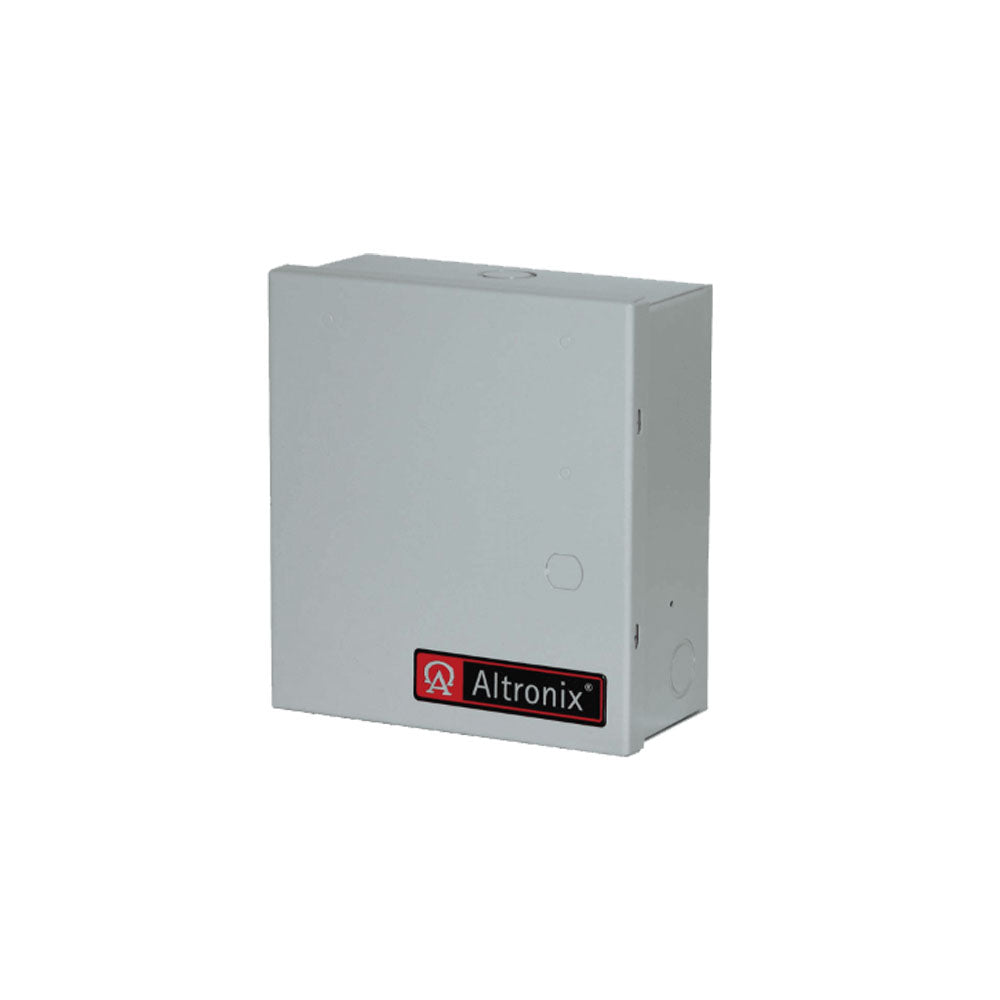

Altronix - ALTV248ULMI - CCTV Power Supply with 8 Isolated Fuse Protected Outputs - Grey Enclosure

Altronix - ALTV248ULMI - CCTV Power Supply with 8 Isolated Fuse Protected Outputs - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Illuminated master power disconnect circuit breaker with manual reset.
• Unit maintains camera synchronization.
• Spare fuses provided.

Input:

• 115VAC, 50/60Hz, 3A.

Output:

• Eight (8) fuse protected outputs.
• 24VAC @ 12.5A (300VA) supply current.
• Outputs are rated @ 3.5A.
• Surge suppression.

Temperature:

• Operating 0��C to 49��C (32��F to 120��F).
• Storage - 20��C to 70��C ( - 4��F to 158��F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 154 BTU/Hr.
• System AC input VA requirement: 345VA.

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 7.5"W x 8.5"H x 3.875"D (190.5 mm W x 216 mm H x 98.5 mm D).
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
