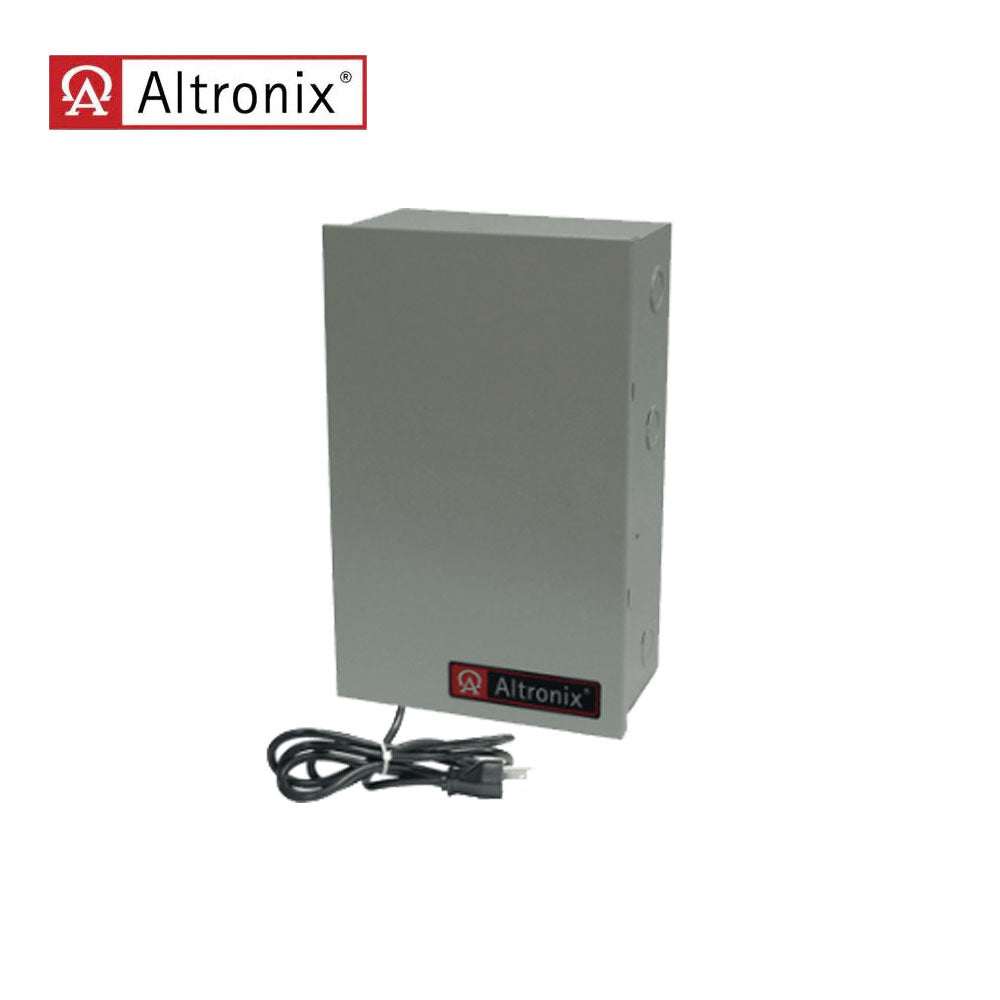

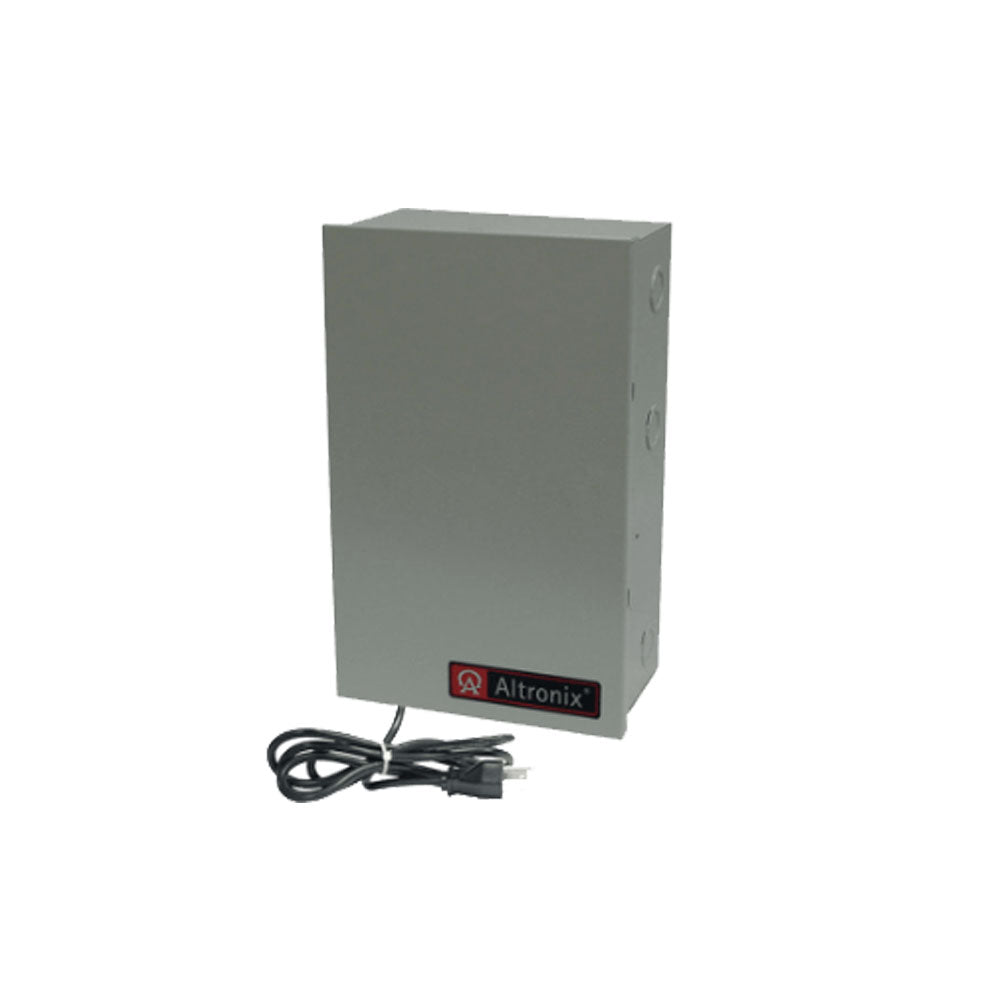

Altronix - ALTV248175UL3 - CCTV Power Supply with 3 Wire Line Cord - 8 Fused Protected Outputs - Grey Enclosure

Altronix - ALTV248175UL3 - CCTV Power Supply with 3 Wire Line Cord - 8 Fused Protected Outputs - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Secondary fuse rated @ 10A/250V.
• AC power LED.
• Power ON/OFF switch.
• Spare fuses provided. (all models w/primary and/or secondary fuses).
• Factory installed 3-wire line cord.

Input:

• 115VAC, 50/60Hz, 1.73A.

Output:

• Eight (8) fuse protected outputs.
• 24VAC @ 7A (170VA) supply current (0.875A per device, 3.5A max.) or 28VAC @ 6.25A (175VA) supply current (0.781A per device, 3.5A max.).
• Outputs are rated @ 3.5A.
• Surge suppression.

Temperature:

• Operating 0��C to 49��C (32��F to 120��F).
• Storage - 20��C to 70��C ( - 4��F to 158��F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 24VAC: 86 BTU/Hr. and 28VAC: 90 BTU/Hr.
• System AC input VA requirement: 198.95VA.

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 7.25"W x 12.25"H x 4.5"D (184 mm W x 311 mm H x 114 mm D).
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
