Altronix - AL62412C - Power Supply charger Board with Plug-in Transformer - Single Output

Altronix - AL62412C - Power Supply charger Board with Plug-in Transformer - Single Output

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

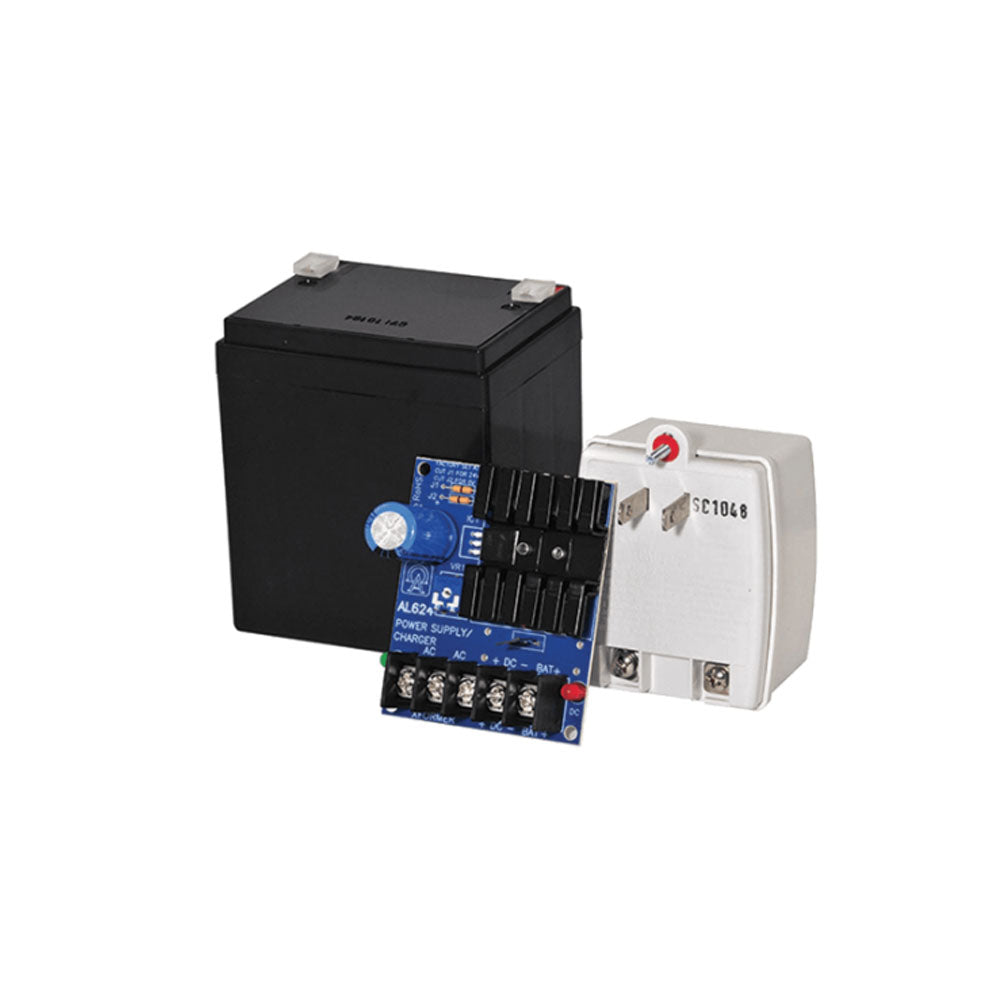

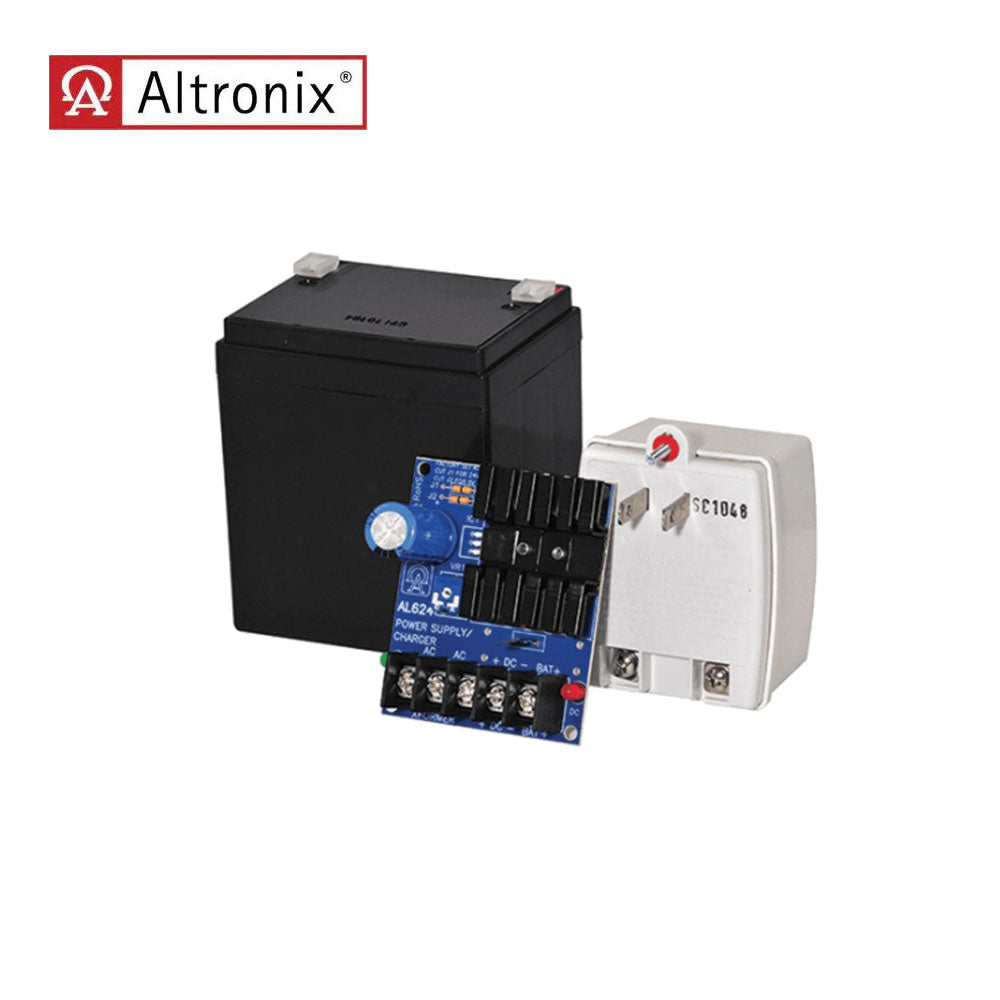

• Power supply charger with BT124 (12VDC/4AH) and TP1620 plug-in transformer (16.5VAC/20VA).

Input:

• 115VAC, 60 Hz 1.2A.

Output:

• 12VDC output.
• 12VDC @ 1.2A supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails.
• PTC battery protection

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F)
• Storage: - 20�� C to 70��C ( - 4�� F to 158�� F)
• Relative Humidity 85% +/- 5%
• BTU/Hr. (approx.): 7 BTU/Hr.
• System AC input VA requirement: 138VA.

Dimensions (approximate):

• 2.5"W x 3"L x 1.5"H (63.5 mm W x 76.2 mm L x 38.1 mm H)

Download:

• Installation Instruction
