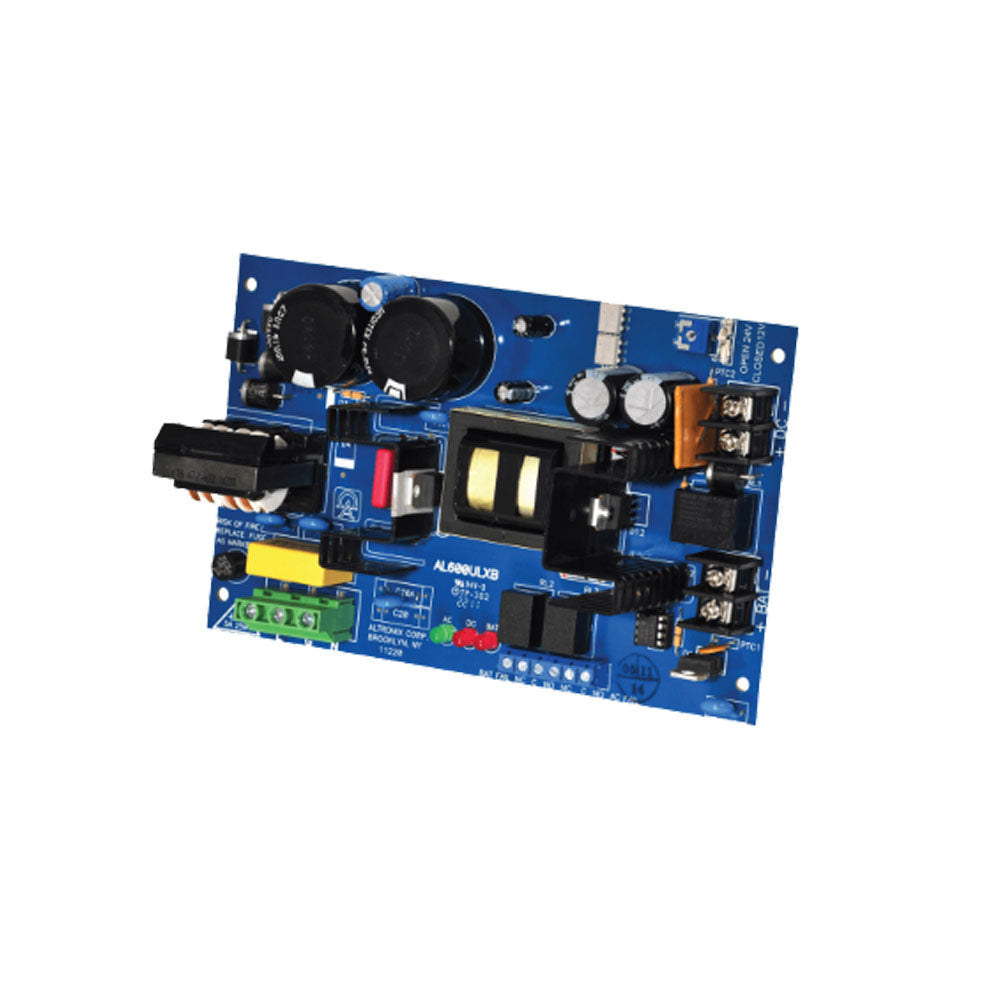

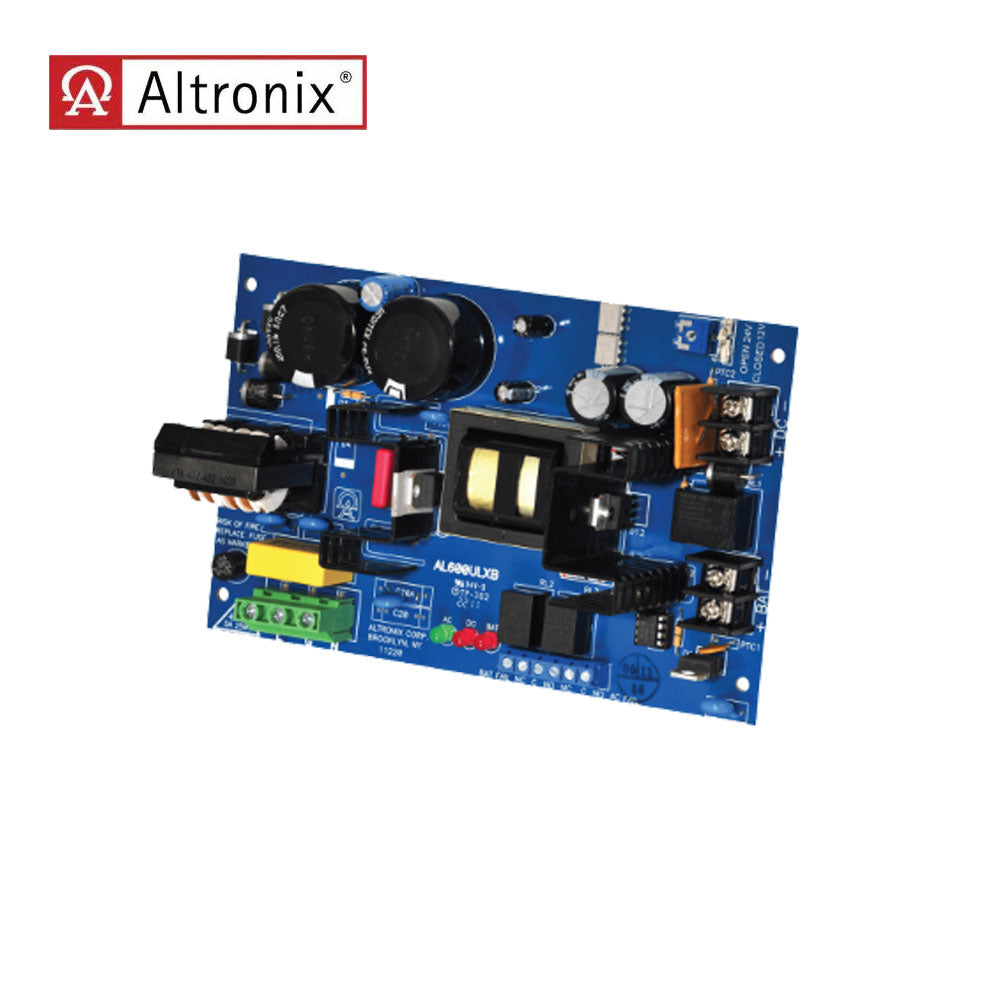

Altronix - AL600ULXB - Power Supply Charger Board with Single Class 2 Output

Altronix - AL600ULXB - Power Supply Charger Board with Single Class 2 Output

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input 115VAC / 60Hz, 3.5A

Output:

• 12VDC or 24VDC selectable outputs
• 6A continuous supply current
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection

Supervision:

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery presence supervision (form "C" contact).
• Battery presence supervision (form "C" contact).)

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F)
• Storage: - 20�� C to 70��C ( - 4�� F to 158�� F)
• Relative Humidity 85% +/- 5%
• BTU/Hr. (approx.): 12VDC: 37 BTU/Hr. and 24VDC: 74 BTU/Hr.
• System AC input VA requirement: 402.5VA.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails.

Dimensions (approximate):

• 4.5"W x 7.1"L x 2.6"H (114.3 mm W x 180.3 mm L x 66.04 mm H)

Download:

• Installation Instruction
