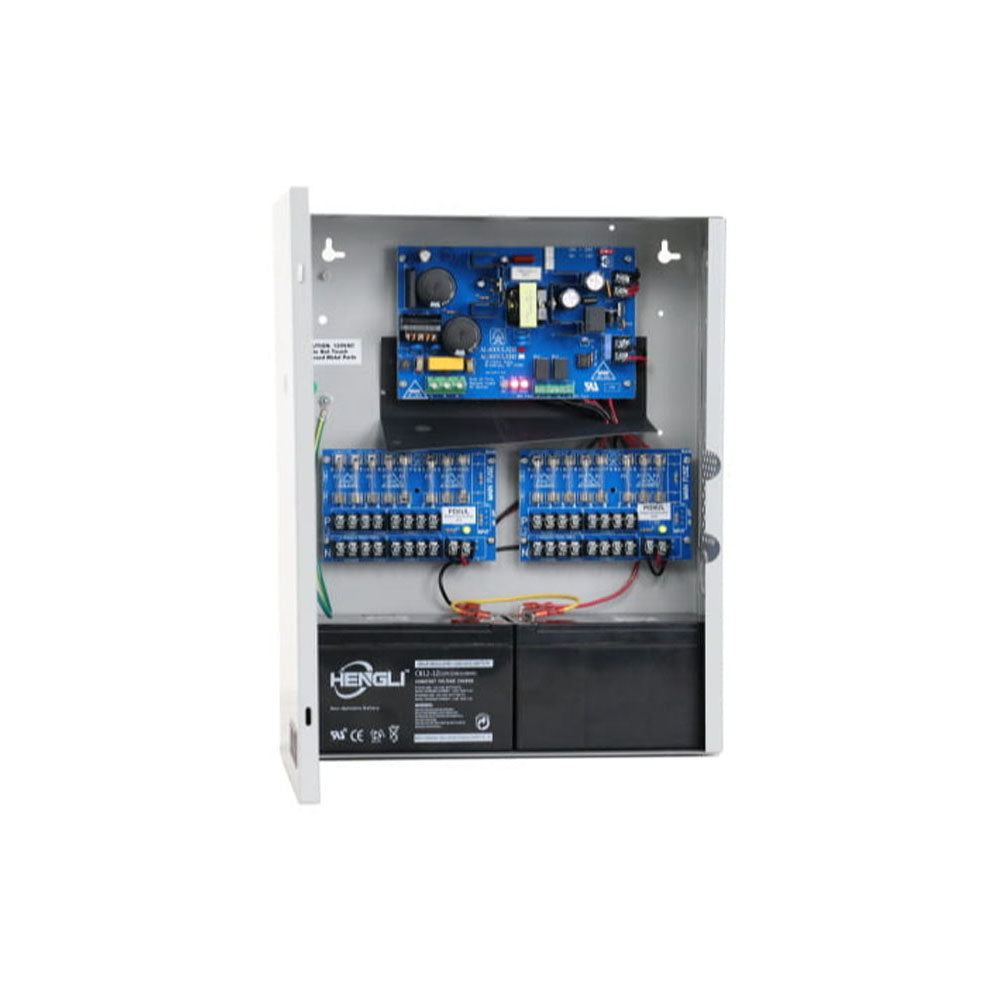

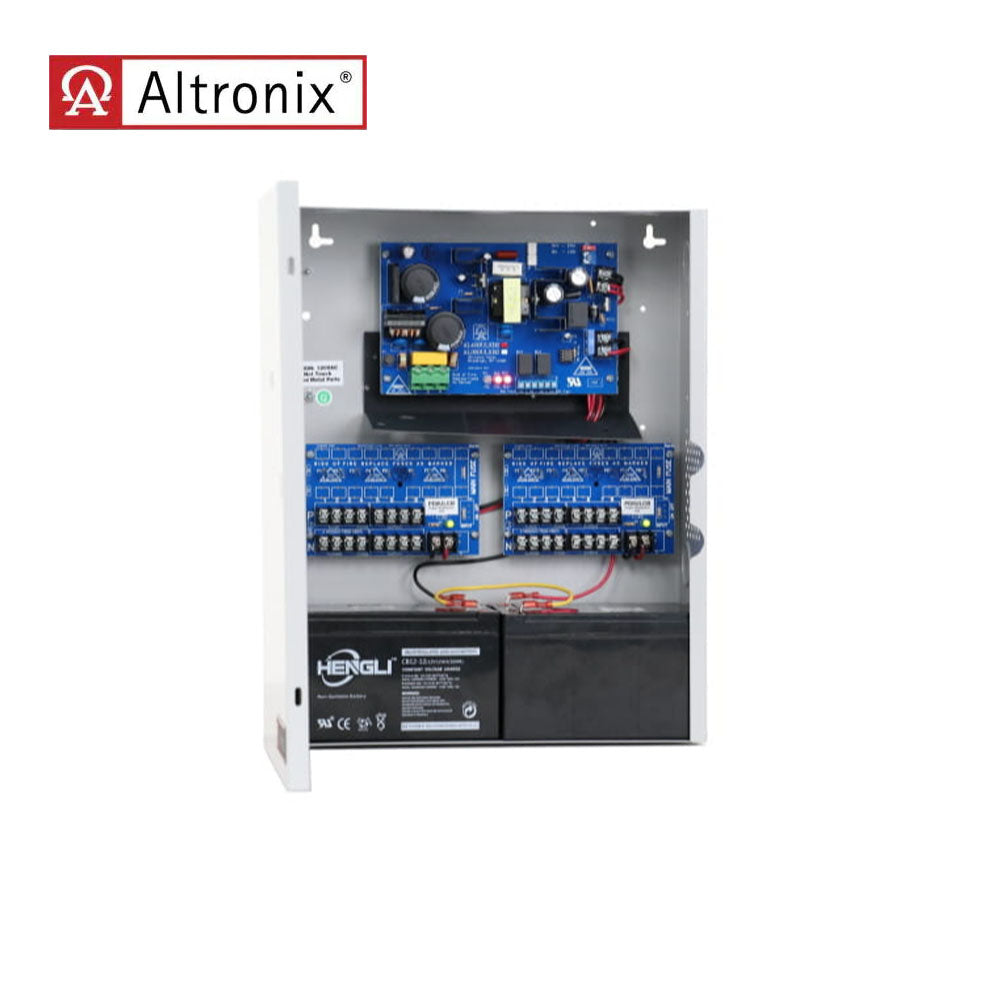

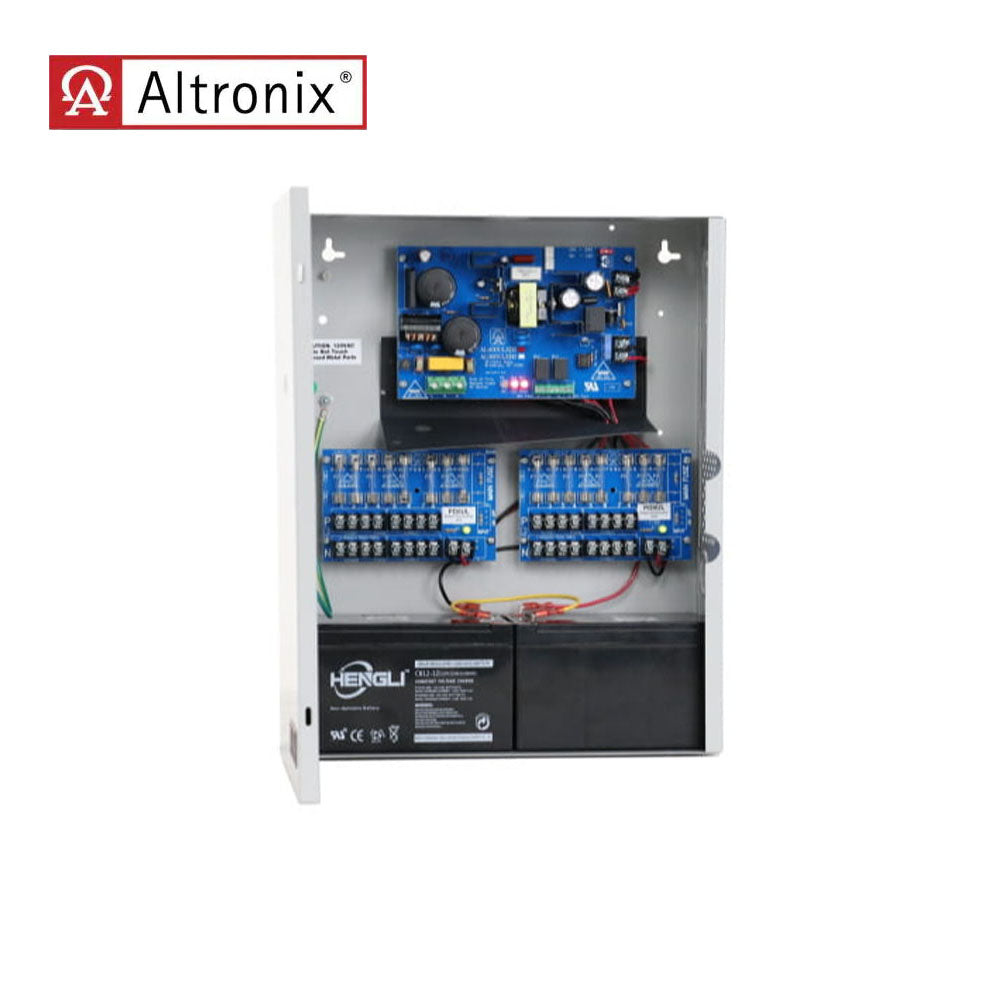

Altronix - AL400ULX (AL400ULXPD16 or AL400ULXPD16CB) Series - Power Supply Charger - 16 Outputs - Grey Enclosure with Plug-in Transformer

Altronix - AL400ULX (AL400ULXPD16 or AL400ULXPD16CB) Series - Power Supply Charger - 16 Outputs - Grey Enclosure with Plug-in Transformer

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input 115VAC / 60Hz, 3.5A
• Input fuse rated @ 3.5A/250V

Output:

• 12VDC or 24VDC selectable outputs
• 12VDC @ 4A or 24VDC @ 3A supply current.
• Sixteen (16) Class 2 Rated fuse protected powerlimited outputs and ixteen (16) Class 2 Rated PTC protected powerlimited outputs (auto-resettable)
• Outputs are rated @ 2.5A(For PTC) and 3.5A(for Fused)
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails.

Supervision:

• AC fail supervision (form "C" contacts).
• Low battery and battery presence supervision (form "C" contact).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F)
• Storage: - 20�� C to 70��C ( - 4�� F to 158�� F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.):
  12VDC: 25 BTU/Hr
  24VDC: 37 BTU/Hr.
• System AC input VA requirement: 402.5VA.

Enclosure:

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D).
• 1.125" and 1.375" combination knockouts

Download:

• Installation Instruction
