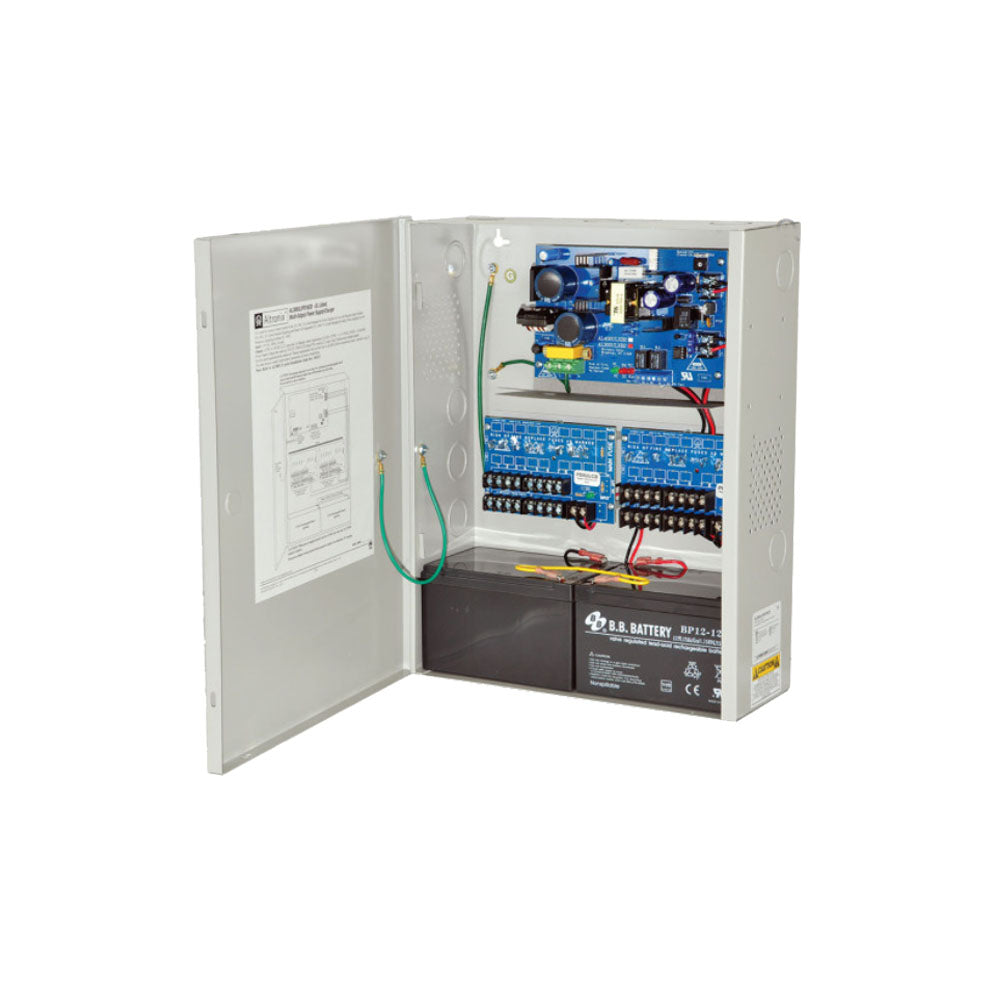

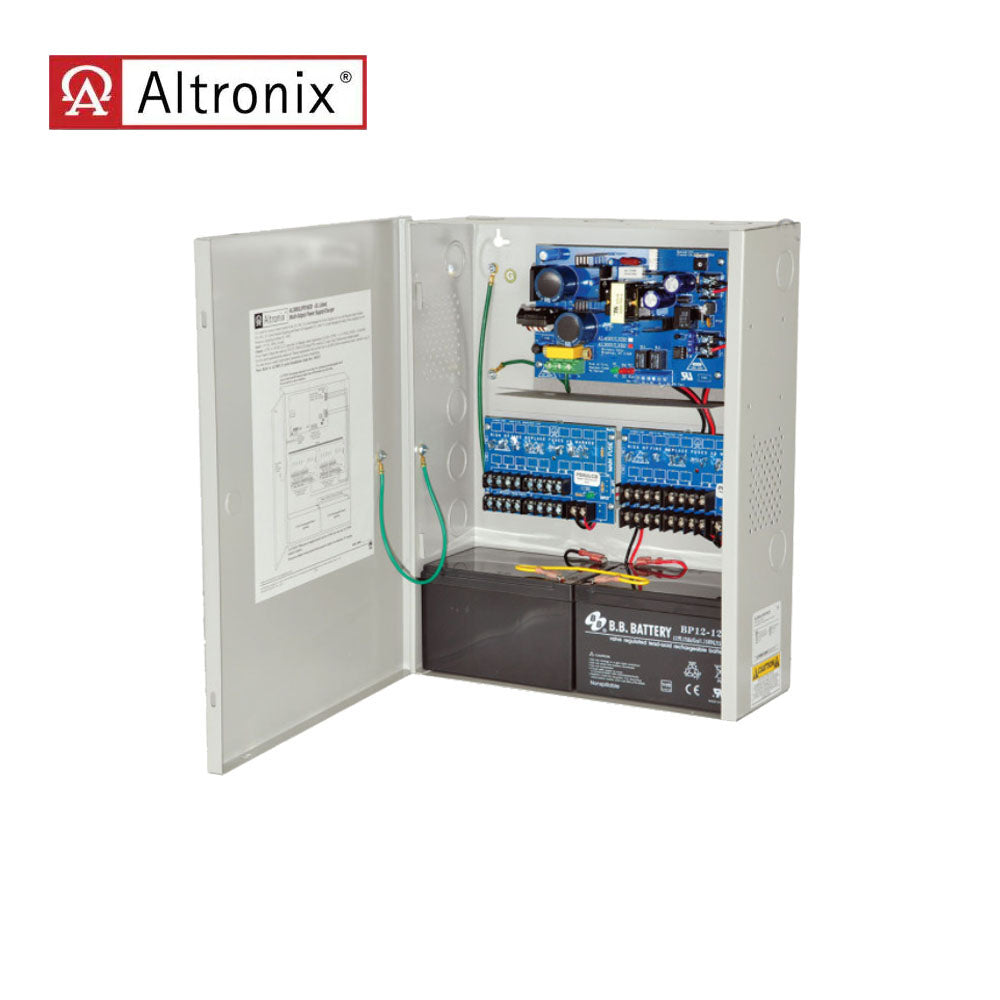

Altronix - AL300ULXPD16CB - Power Supply Charger with 16 PTC Outputs - Grey Enclosure

Altronix - AL300ULXPD16CB - Power Supply Charger with 16 PTC Outputs - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input 115VAC, 60Hz, 3.5A.
• Input fuse rated @ 3.5A/250V

Output:

• 12VDC or 24VDC selectable output
• 12VDC or 24VDC @ 2.5A supply current.
• Burglar Alarm Applications (UL 603)
• 12VDC = 10VDC-13.2VDC
• 24VDC = 20VDC-26.4VDC
• Outputs are rated @ 2.5A
• Sixteen (16) Class 2 Rated PTC protected power limited outputs (auto-resettable)
• Filtered and electronically regulated output
• Short circuit and thermal overload protection.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails.

Supervision:

• AC fail supervision (form "C" contacts)
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).

Visual Indicators:

• AC input and DC output LED indicators

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F)
• Storage: - 20�� C to 70��C ( - 4�� F to 158�� F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.): 12VDC: 15 BTU/Hr and 24VAC: 31 BTU/Hr
• System AC input VA requirement: 402.5VA.

Enclosure:

• Wall mount enclosure for indoor use
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D)
• 1.125" and 1.375" combination knockouts.

Download:

• Installation Instruction
