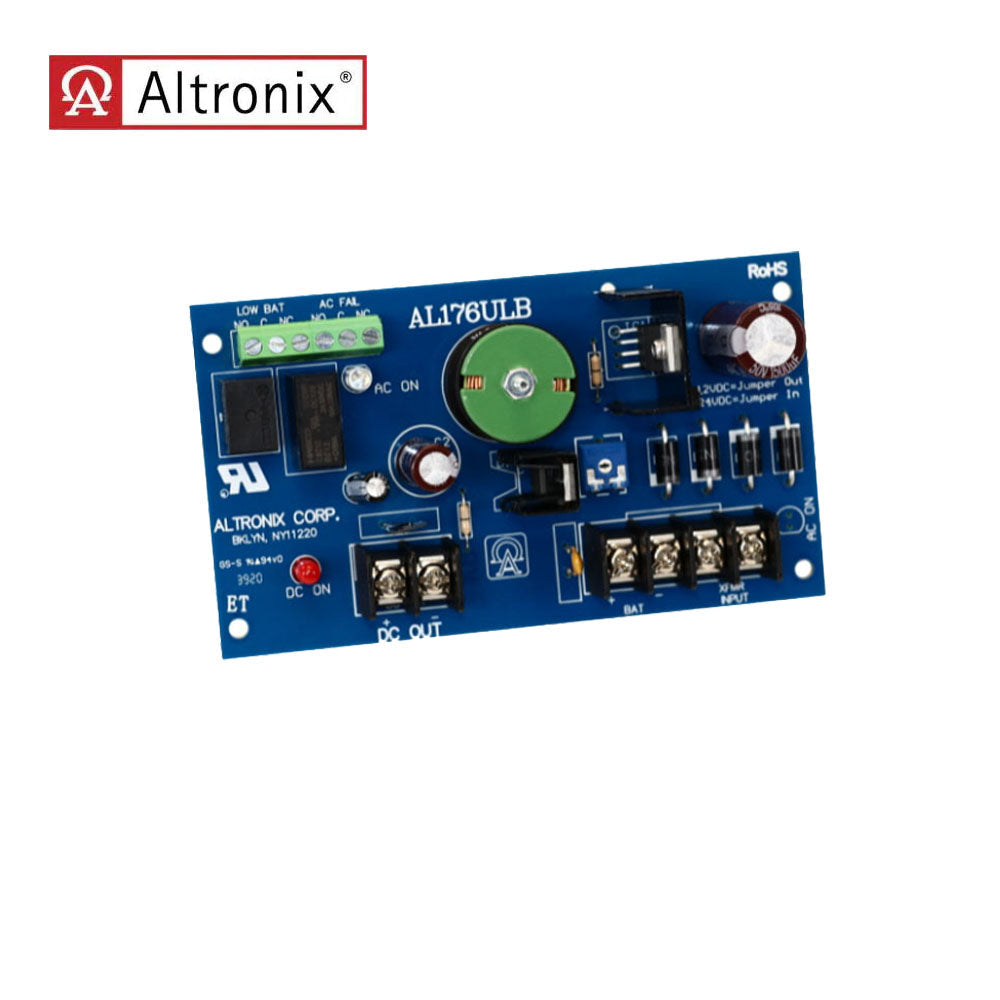

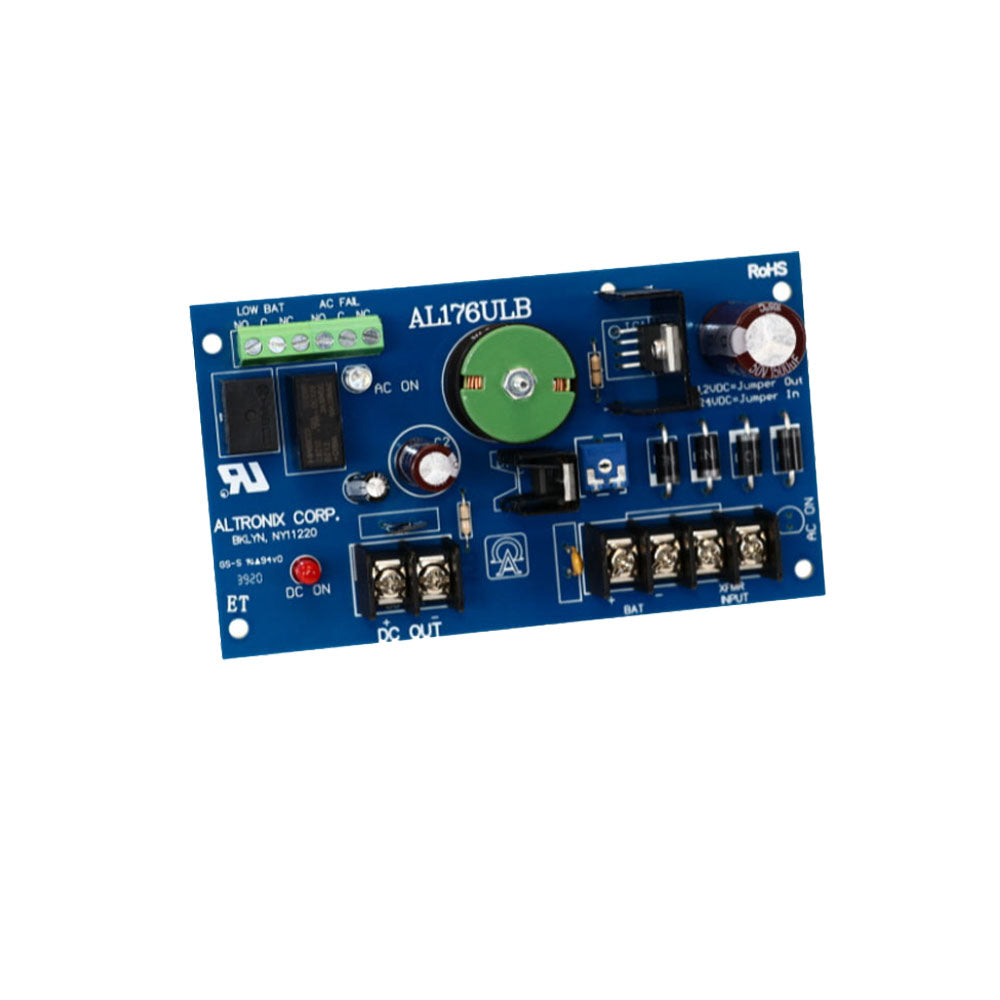

Altronix - AL176ULB - Power Supply Board with Access Control - Single PTC Output

Altronix - AL176ULB - Power Supply Board with Access Control - Single PTC Output

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Voltage: 28VAC, 56VA from UL Listed, Class 2 transformer

Output:

• Voltage: 12VDC or 24VDC selectable outputs
• Current: 1.75A continuous max
• Class 2 Rated power limited outputs.
• PTC protected outputs, rated @ 2.5A.
• Filtered and electronically regulated output
• Short circuit and thermal overload protection.

Battery Backup:

• Type: Sealed lead acid or gel type
• Failover: Upon AC loss, instantaneous.

Supervision:

• AC Failure: Form ���C��� contacts.
• Low Battery: Form ���C��� contacts

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F)
• Storage: - 20�� C to 70��C ( - 4�� F to 158�� F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.): 12VDC: 11 BTU/Hr and 24VDC: 22 BTU/Hr
• System AC input VA requirement: 57.5VA

Dimensions:

• 3.1"W x 5.3"L x 1.4"H (78.74 mm W x 134.62 mm L x 35.56 mm H)

Download:

• Installation Instruction
