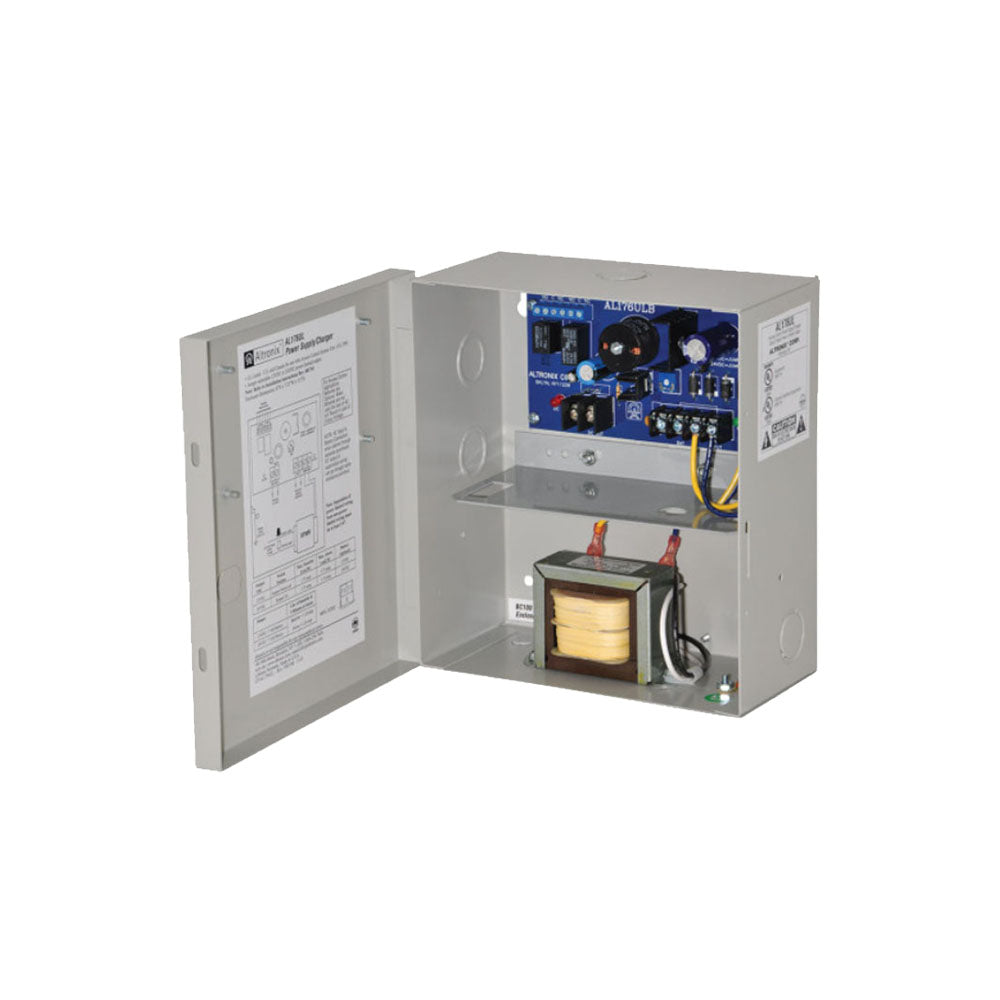

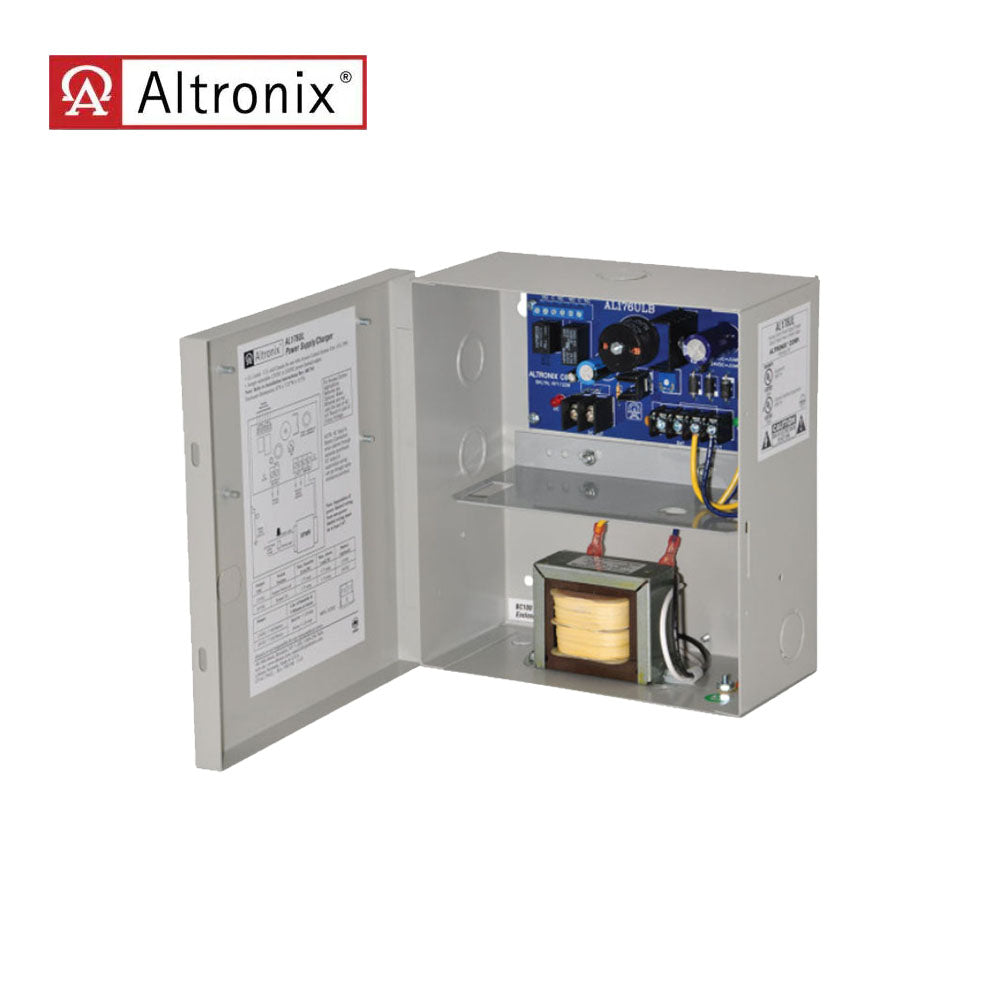

Altronix - AL176UL - Power Supply Charger with Access Control - Single PTC Output - BC100 Enclosure

Altronix - AL176UL - Power Supply Charger with Access Control - Single PTC Output - BC100 Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input 115VAC, 60Hz, 0.6A

Output:

• 12VDC or 24VDC selectable outputs
• 1.75A supply current.
• Class 2 Rated power limited outputs.
• PTC protected outputs, rated @ 2.5A.
• Filtered and electronically regulated output
• Short circuit and thermal overload protection.

Battery Backup:

• Automatic switch over to stand-by battery when AC fails
• Built-in charger for sealed lead acid or gel type batteries.

Supervision:

• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts)

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F)
• Storage: - 20�� C to 70��C ( - 4�� F to 158�� F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.): 12VDC: 11 BTU/Hr and 24VDC: 22 BTU/Hr
• System AC input VA requirement: 69VA.

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D)
• 1.125" and 1.375" combination knockouts

Download:

• Installation Instruction
