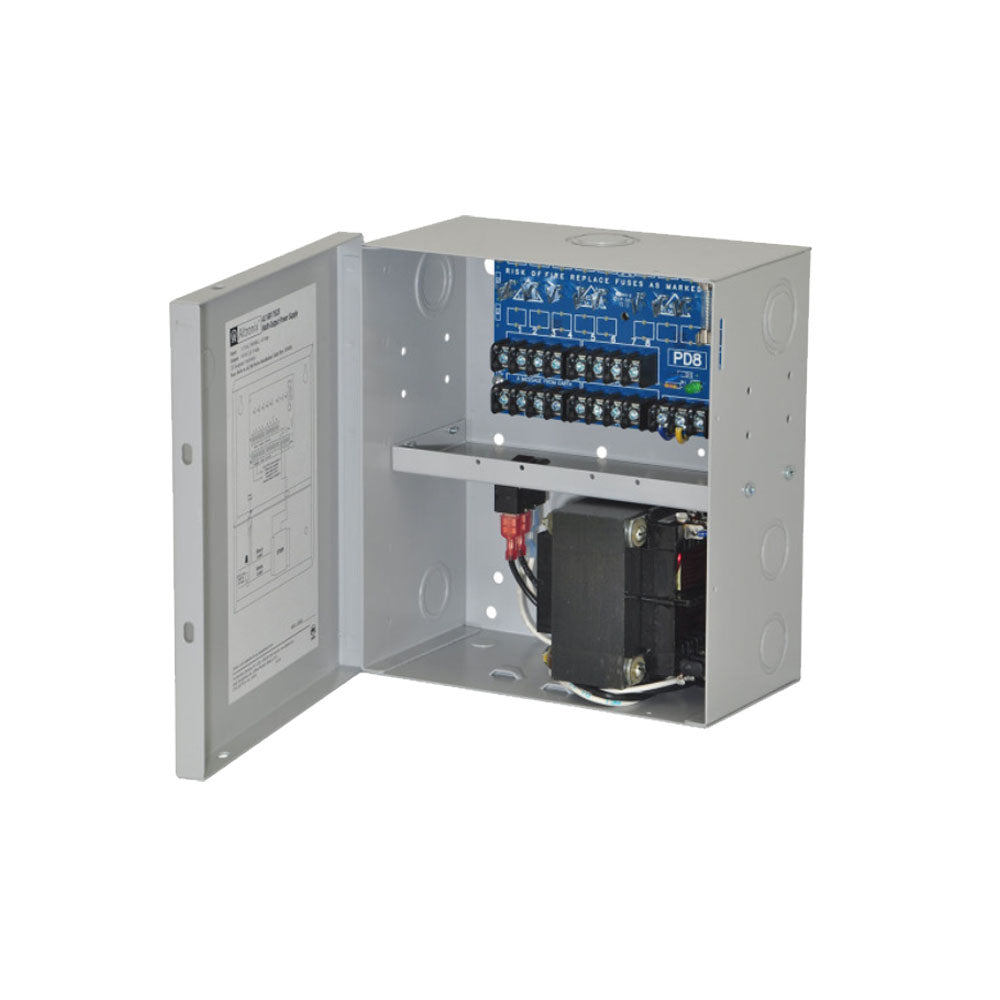

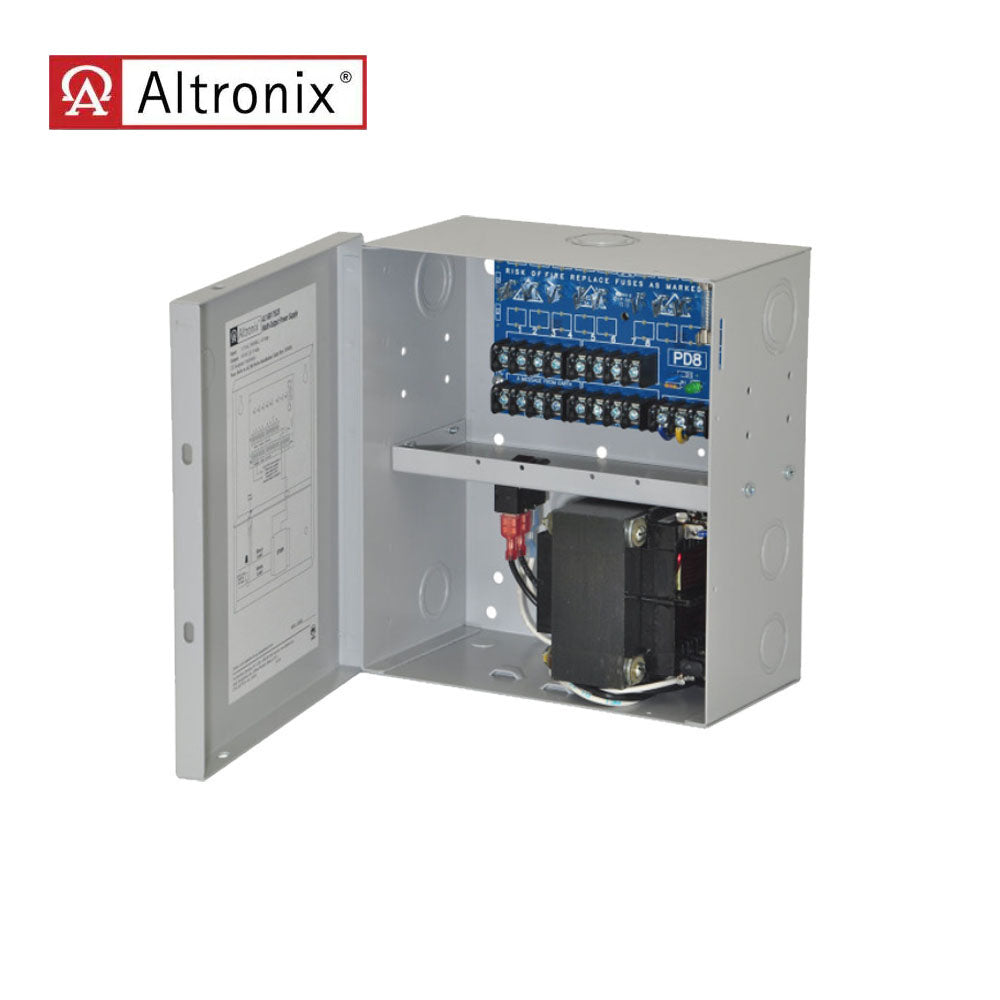

Altronix - AL168175CB - Power Supply Charger - Grey Enclosure

Altronix - AL168175CB - Power Supply Charger - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Illuminated master power disconnect circuit breaker with manual reset.

Input:

• Input 115VAC, 50/60Hz, 1.45A

Output:

• Eight (8) auto-resettable PTC protected outputs
• 16VAC output
• 16VAC @ 10A (175VA) supply current (1.25A per device, 2.5A max.)
• Outputs are rated @ 2.5A.
• Main fuse rated @ 15A/32V.
• Surge suppression

Visual Indicators:

• AC power LED indicators

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F)
• Storage - 20�� C to 70��C ( - 4�� F to 158�� F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.): 82 BTU/Hr
• System AC input VA requirement: 166.75VA

Enclosure:

• Wall mount enclosure for indoor use
• Dimensions 7.5"W x 8.5"H x 3.875"D (190.5 mm W x 216 mm H x 98.5 mm D).
• 1/2" and 3/4" combination knockouts

Download:

• Installation Instruction
