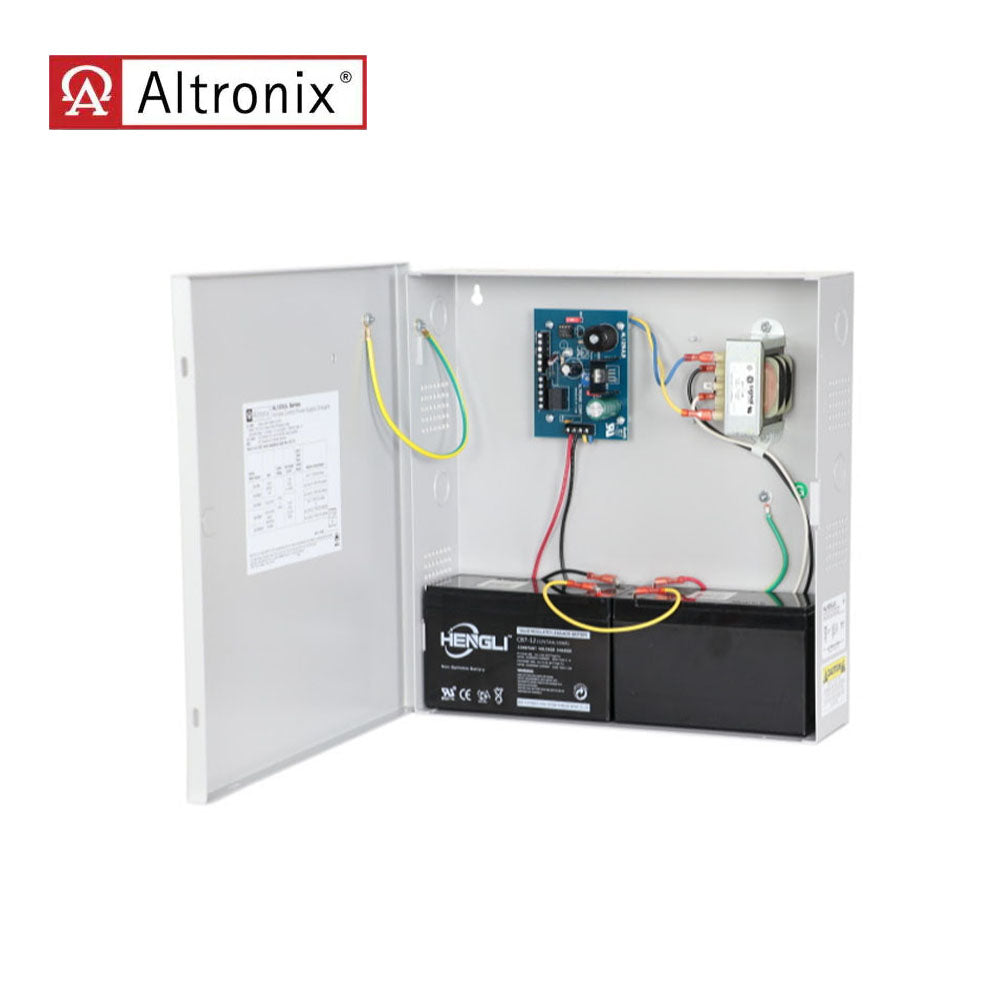

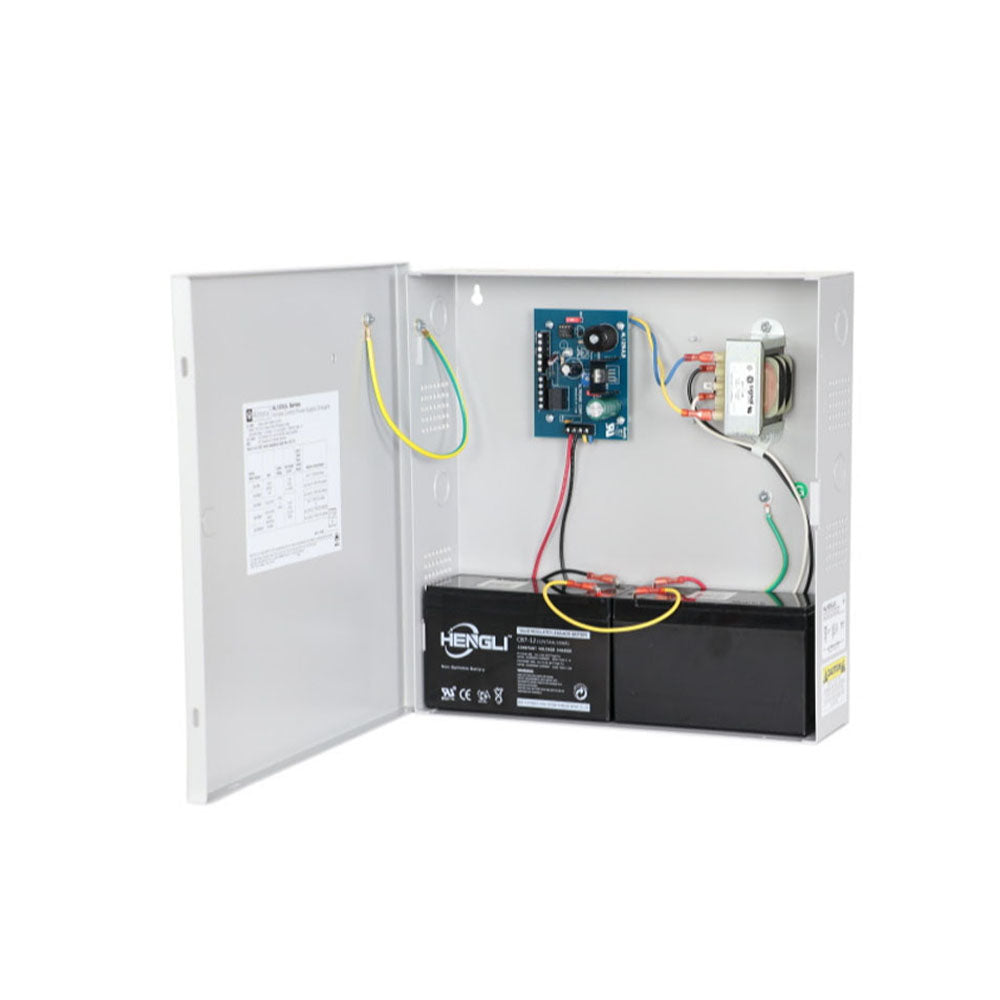

Altronix - AL125ULX - Power Supply Charger with Access Control

Altronix - AL125ULX - Power Supply Charger with Access Control

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input 115VAC, 50/60Hz, 0.6A
• Access control trigger input

Output:

• 12VDC or 24VDC selectable outputs
• 1A supply current
• Two (2) Class 2 Rated power limited outputs.
• Fail-Safe/Fail-Secure lock output (switched)
• Auxiliary power output (unswitched).
• PTC protected outputs, rated @ 2.5A.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current: 400mA.
• Automatic switch over to stand-by battery when AC fails
• (Batteries are sold separately)

Supervision:

• Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).

Indicator (LED):

• Unit Status: Normal / No Output / Loss of AC / Triggered.

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F)
• Storage - 20�� C to 70��C ( - 4�� F to 158�� F)
• Relative Humidity 85% +/- 5%
• System AC input VA requirement: 55.2VA.

Enclosure:

• Wall mount enclosure for indoor use
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D)
• 1/2" and 3/4" combination knockouts

Download:

• Installation Instruction
