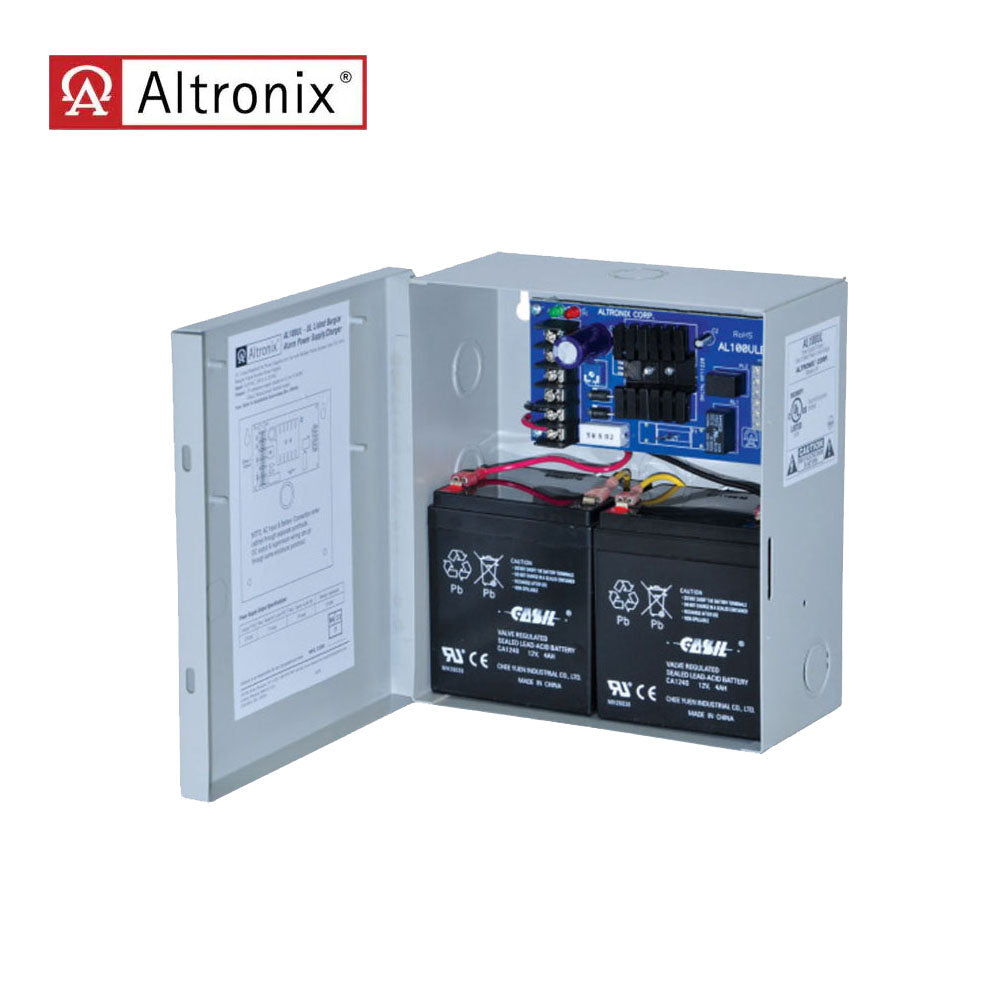

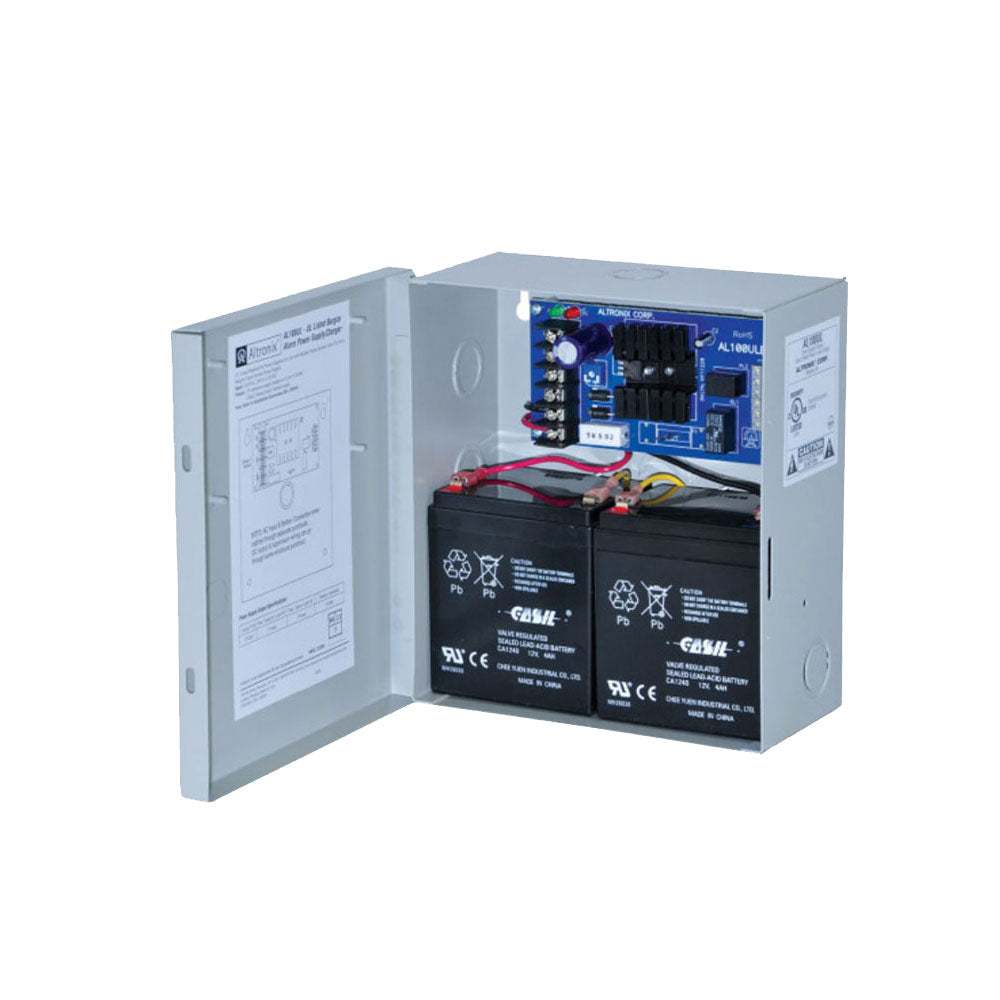

Altronix - AL100UL - Linear Power Supply - Single Class 2 Output - 12VDC(75A) 16.5VAC - BC100 Enclosure

Altronix - AL100UL - Linear Power Supply - Single Class 2 Output - 12VDC(75A) 16.5VAC - BC100 Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Specifications:

Input:

• 16.5VAC, 20VA from UL Listed

Output:

• 12VDC output.
• 750mA supply current
• Class 2 Rated power limited output
• Filtered and electronically regulated output
• Short circuit and thermal overload protection.

Temperature:

• Operating 0 to 49�� C (32 to 120�� F )
• Storage - 20 to 70�� C ( -4 to 158�� F)
• Relative Humidity 85% +/- 5%
• BTU/Hr. (approx.): 5 BTU/Hr
• System AC input VA requirement: 26.45VA.

Download:

• Installation Instruction
