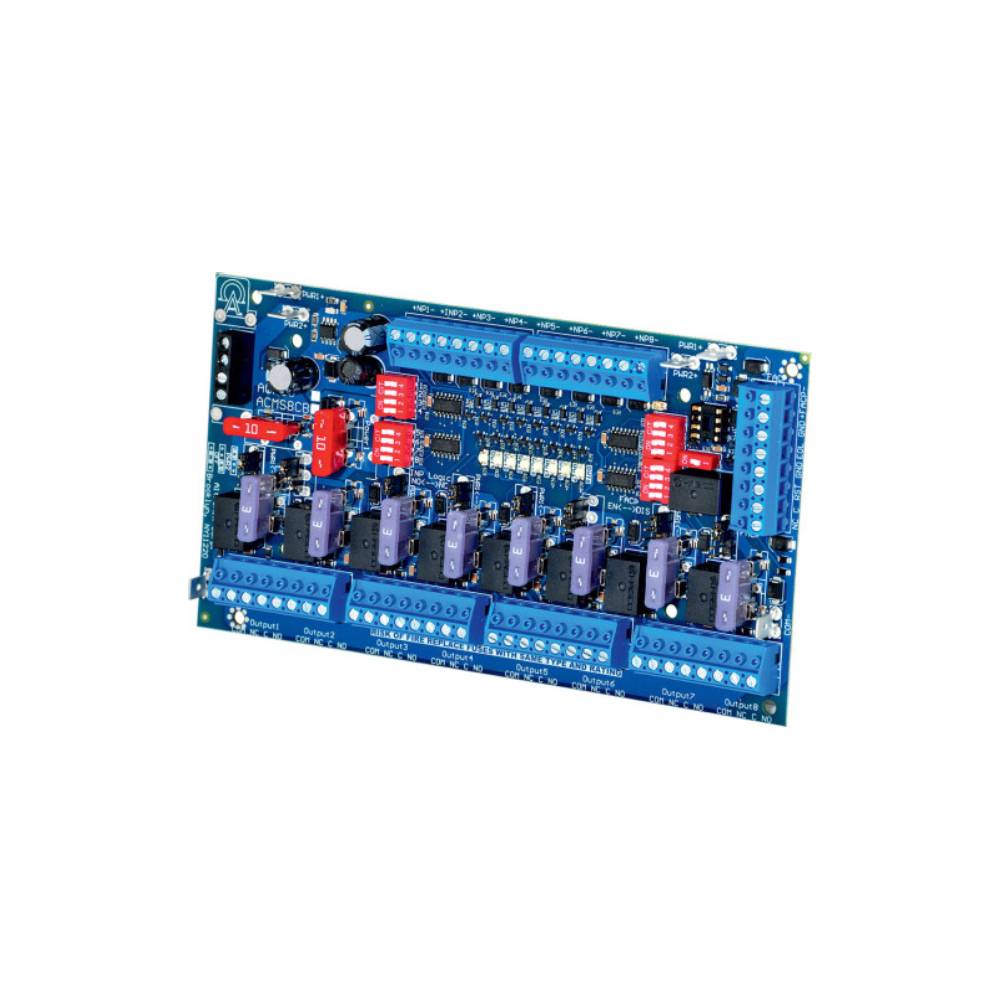

Altronix - ACMS8 - Access Control Module 8-Relay Ul Recognized with 12V/24V Ac Or Dc and Eight Outputs

Altronix - ACMS8 - Access Control Module 8-Relay Ul Recognized with 12V/24V Ac Or Dc and Eight Outputs

Altronix ACMS8 is UL listed sub-assemblies designed to be used in Altronix wall and rack mount enclosures. Input power to ACMS8 is to be derived from eFlow series power supplies. Dual input design allows power to be steered from two (2) independent low voltage 5 to 24 VDC power sources into eight (8) independently controlled fuse protected outputs. In ACMS8, these power outputs can also be converted to dry form ���C��� contacts. Outputs are activated by an open collector sink, normally open (NO) or normally closed (NC) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc.

Features:

• Eight (8) fuse protected power outputs are individually selectable to follow power input 1 or input 2.
• Input 1 and Input 2 voltage range: 5VDC to 24VDC, up to 10A each, 20A total input
• Fuse protected outputs rated @ 2.5A per output, non power-limited. Total output 20A max.
• Fuses are rated 3A/32V each.
• Fail-Safe and/or Fail-Secure power outputs.
• Red LEDs indicate outputs are triggered.
• Blue LED indicates FACP disconnect is triggered.

Product Specifications:

Download:

• Installation Instructions
