Altronix - ACM8CB - Access Power Controller - 8 PTC Class 2 Relay Outputs
Altronix - ACM8CB - Access Power Controller - 8 PTC Class 2 Relay Outputs
Regular price
$91.53 USD
Regular price
$109.84 USD
Sale price
$91.53 USD
Unit price
per
Couldn't load pickup availability

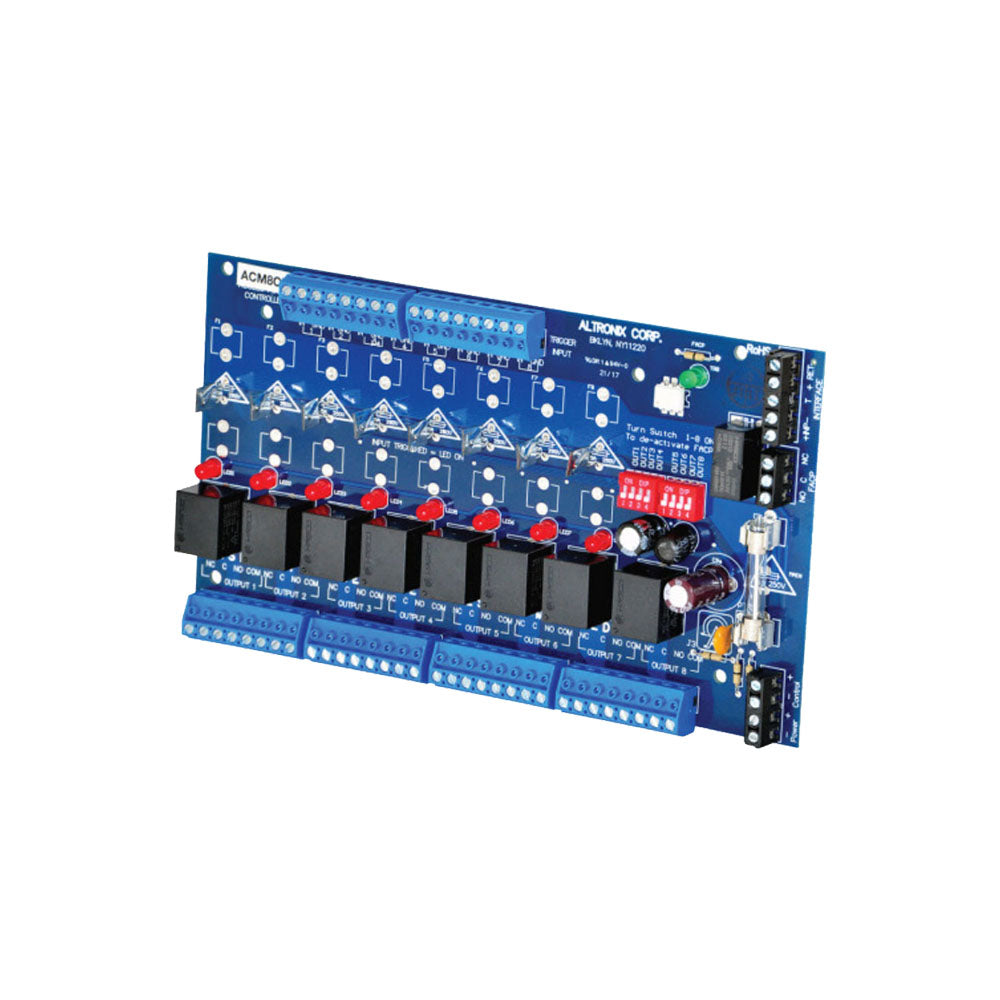

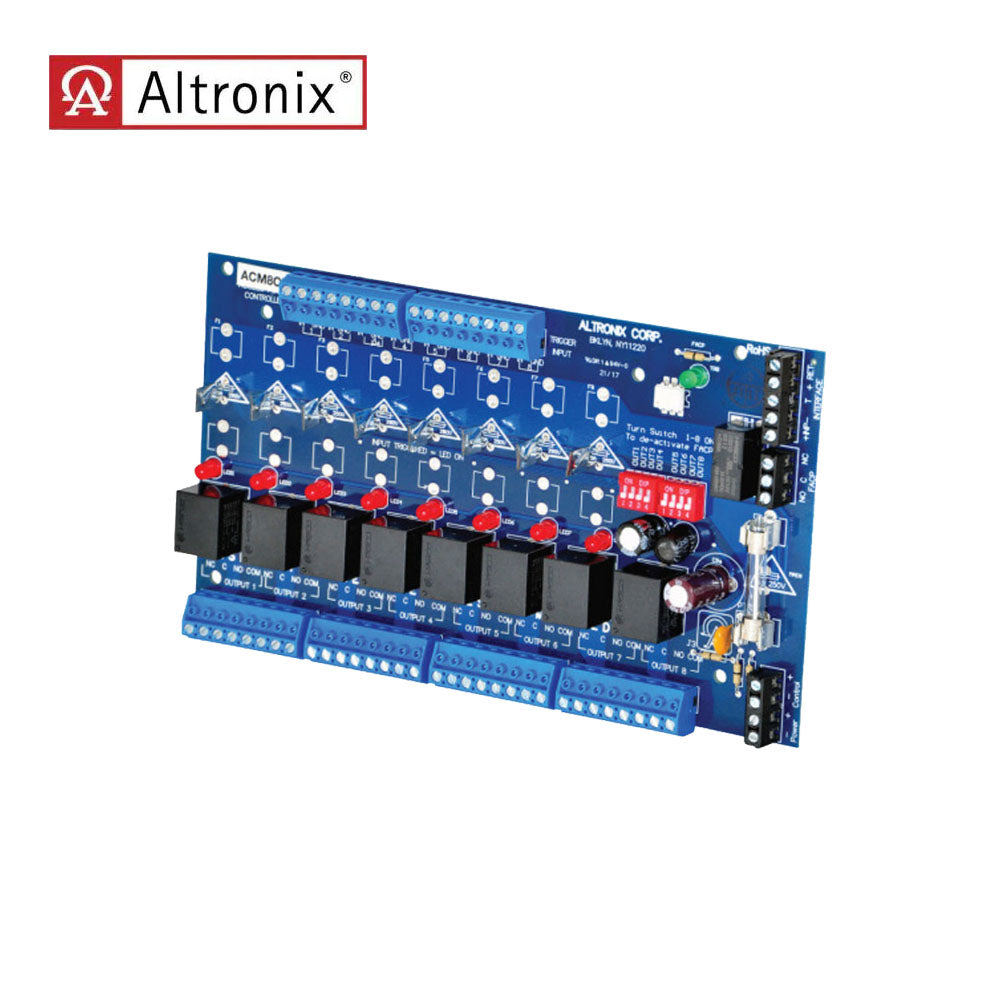

Altronix - ACM8CB - Access Power Controller - 8 PTC Class 2 Relay Outputs
Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:
- General Use
- CCTV
- Fire Alarm
- POIP
Product Specifications:
| Manufacturer | Altronix |
| SKU | ACM8CB |
| UID | ALT100ACM8CB |
| Installation | Commercial |
| Unit of Measure | Each |
| Purpose | Access Control |
| Type | Hardwired |
| Product Type | Power Supplies |
Technical Specifications:
| Input | a)12 to 24 volt AC or DC operation (setting not required), (0.6A @ 12volt, 0.3A @ 24 volt current consumption with all relays energized) b)AC applications not evaluated by UL c)Main fuse is rated at 10A/250V Power supply input options: a) One (1) common power input (board and lock power). b) Two (2) isolated power inputs (one (1) for board power and one (1) for lock/accessory power). Eight (8) Access Control System Trigger Inputs: a) Eight (8) normally open (NO) inputs b)Eight (8) open collector sink inputs c) Any combination of the above. |
| Output |
Eight (8) independently controlled 2.5A outputs: a) Eight (8) Fail-Safe and/or Fail-Secure power outputs. b) Eight (8) dry form "C" 5A rated relay outputs c) Any combination of the above Eight (8) auxiliary power outputs (unswitched) Output ratings: PTCs are rated 2.5A each Total output current is determined by the power supply, not to exceed a maximum of 10A. total |
