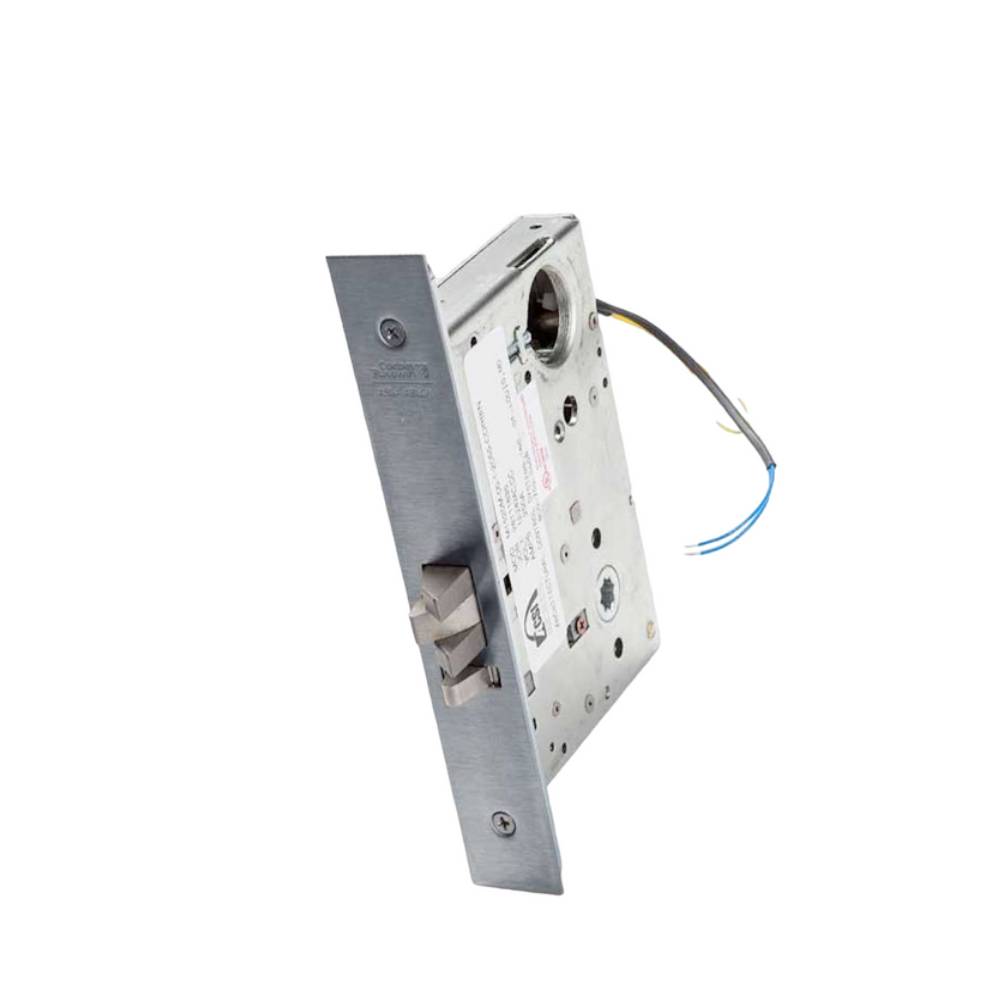

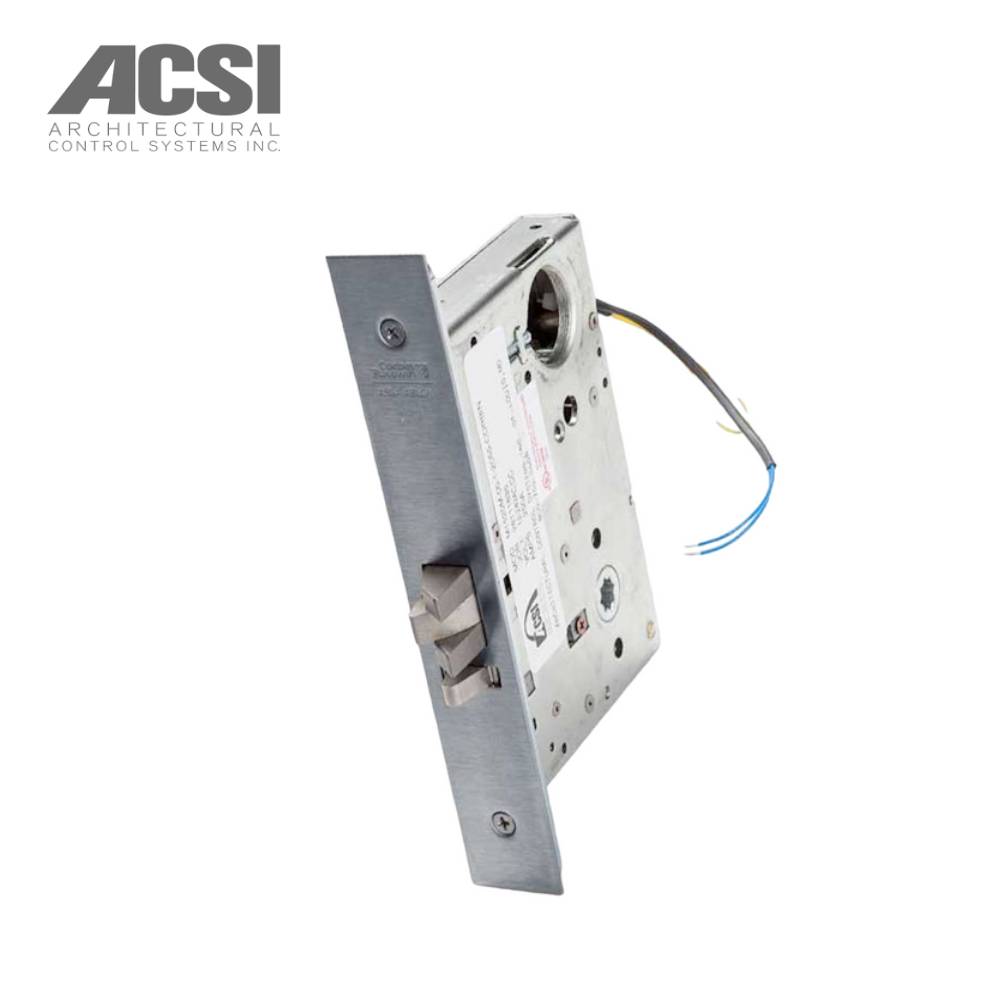

ACSI - M1520M-1-ML2055 - Entry Mortise Lever Lock - Fail Secure with Motor Controlled - Less Cylinder and Corbin Russwin 2000 Series Office - 26D (Satin Chrome)
ACSI - M1520M-1-ML2055 - Entry Mortise Lever Lock - Fail Secure with Motor Controlled - Less Cylinder and Corbin Russwin 2000 Series Office - 26D (Satin Chrome)
Couldn't load pickup availability
ACSI - M1520M-1-ML2055 - Entry Mortise Lever Lock - Fail Secure with Motor Controlled - Less Cylinder and Corbin Russwin 2000 Series Office - 26D (Satin Chrome)
M1520M-1-ML2055 Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Secure Motor Controlled Reversible. Corbin Russwin 2000 Series Classroom Mortise Lever Lock Modified with Fail Secure Operation (Power Unlock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1520M-1-ML2055 Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Secure Motor Controlled Reversible for easy installation and dependable door hardware solution.
Specifications:
| Function | 1520M-Fail Secure Control |
| Cylinder Type | Less Cylinder |
| Product Type | Electronic Mortise Locks |
| Electric Options | Latchbolt Monitor |
| Strike Type | Straight Lip |
| Strike Size | 4-7/8" x 1-1/4" |
| Hub Size | 5/16 Inch |
| Lever Size | 4-5/8 Inch |
| Hub Material | Steel |
| ADA Compliant | YES |
| Style | None Authorized Egress (AE) |
| Design | ES Lever Design, A Rose Design ES Lever Design, M Rose Design |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13 Series 1000; Operational and Security Grade 1; A117.1 Accessibility Code |
| Function Description | Outside Trim is Unlocked When Power is Applied and Locked When Power is Removed. Lockset will Lock in the Event of a Power Failure |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Application | Offices; Schools; Hospitals; Hotels |
| Handing | Reversible |
| Front Size | 8" x 1-1/4" x 3/32" |
| Strike Lip | 1-1/8 Inch |
| Voltage | 12 to 24VAC/VDC |
| Grade | ANSI/BHMA Grade 1 |
| Finish | 26D - Satin Chrome |
| Backset | 2-3/4 Inch |
| Door Thickness | 1-3/4 inch |
| Latch Throw | 3/4 Inch |
| Latchbolt Size | 5/8" x 1" |
| Latchbolt Type | 2-Piece Mechanical With Anti-Friction Insert |
| Manufacturer Parent | ACSI |
