ACSI - M1510M-1-8205-LW1 - Entry Mortise Lever Lock - Fail Safe with LW1 Escutcheon Design - Less Cylinder and Sargent 8200 Series Office - 26D (Satin Chrome)
ACSI - M1510M-1-8205-LW1 - Entry Mortise Lever Lock - Fail Safe with LW1 Escutcheon Design - Less Cylinder and Sargent 8200 Series Office - 26D (Satin Chrome)
Couldn't load pickup availability
ACSI - M1510M-1-8205-LW1 - Entry Mortise Lever Lock - Fail Safe with LW1 Escutcheon Design - Less Cylinder and Sargent 8200 Series Office - 26D (Satin Chrome)

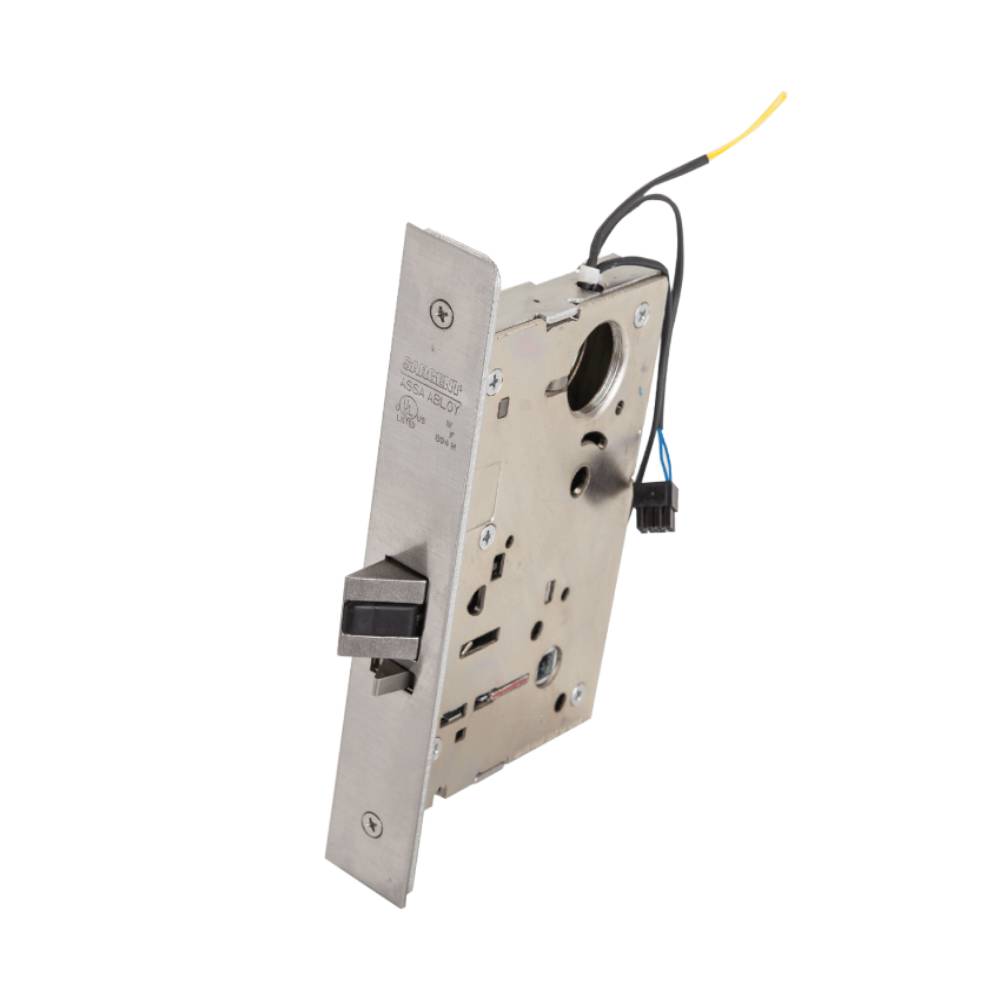

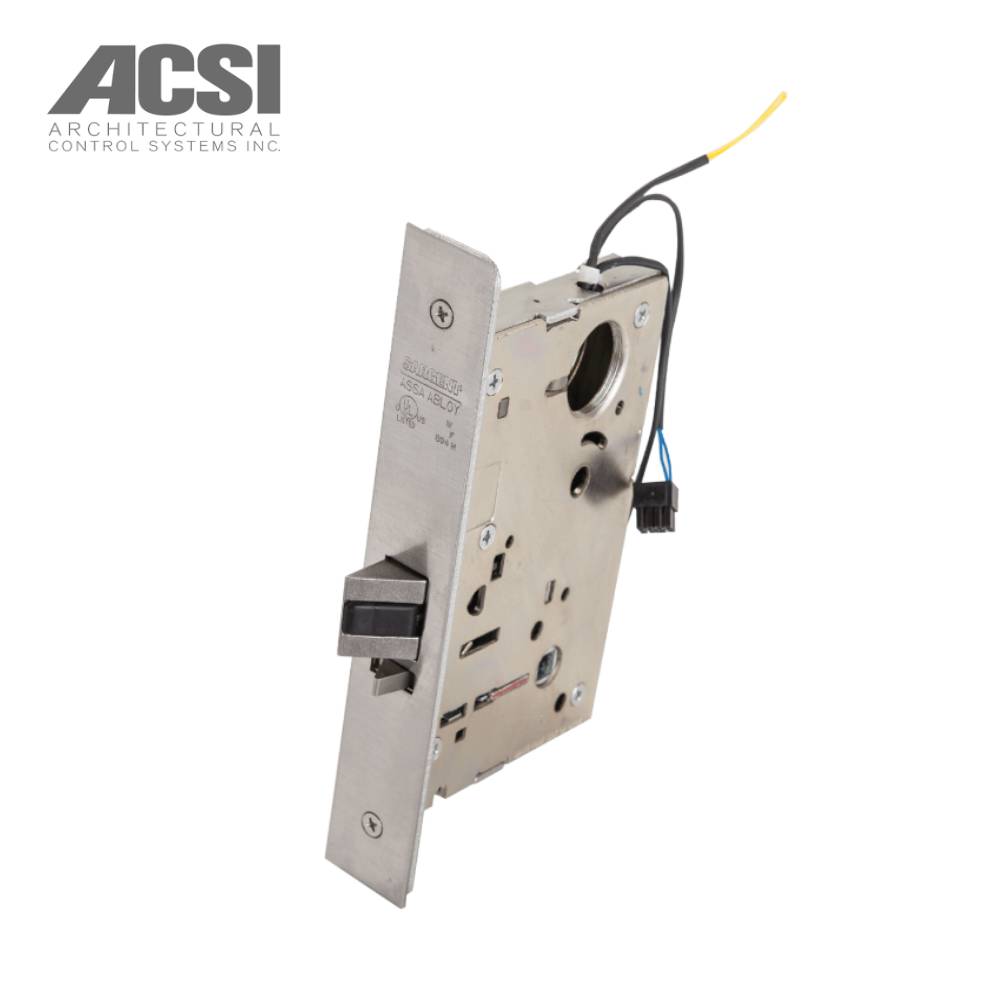

M1510M-1-8205-LW1 Sargent 8200 Series Office, Entry Mortise Lever Lock Fail Safe LW1 Escutcheon Design, Reversible. Sargent 8200 Series Office or Entry Mortise Lever Lock Modified with Fail Safe Operation (Power Lock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1510M-1-8205-LW1 Sargent 8200 Series Office, Entry Mortise Lever Lock Fail Safe LW1 Escutcheon Design, Reversible for easy installation and dependable door hardware solution.
Design:
- LW1 Escutcheon Design, B Lever Design
- LW1 Escutcheon Design, F Lever Design
- LW1 Escutcheon Design, J Lever Design
- LW1 Escutcheon Design, L Lever Design
- LW1 Escutcheon Design, P Lever Design
Specifications:
| Function | 1510M-Fail Safe Control |
| Product Type | Lock Part/Accessory |
| ADA Compliant | No |
| Finish | 26D - Satin Chrome |
| Standards | UL Listed, California State Fire Marshall Approved, ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with All Standard Trims, UL and cUL Listed, ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies |
| Function Family | Part/Component |
| Features | Motor Controlled; Low Power Consumption; Unlocks Outside Lockset in the Event of a Power Failure |
| For Use With | Sargent 8200 Series Office or Entry Mortise Lock |
| Manufacturer Parent | ACSI |
