ACSI - 5BB1 - Ball Bearing Full Mortise Hinge 4-1/2 Inch x 4-1/2 Inch with Concealed Electric Through-Wire
ACSI - 5BB1 - Ball Bearing Full Mortise Hinge 4-1/2 Inch x 4-1/2 Inch with Concealed Electric Through-Wire
Regular price
$94.22 USD
Regular price
$113.06 USD
Sale price
$94.22 USD
Unit price
per
Couldn't load pickup availability

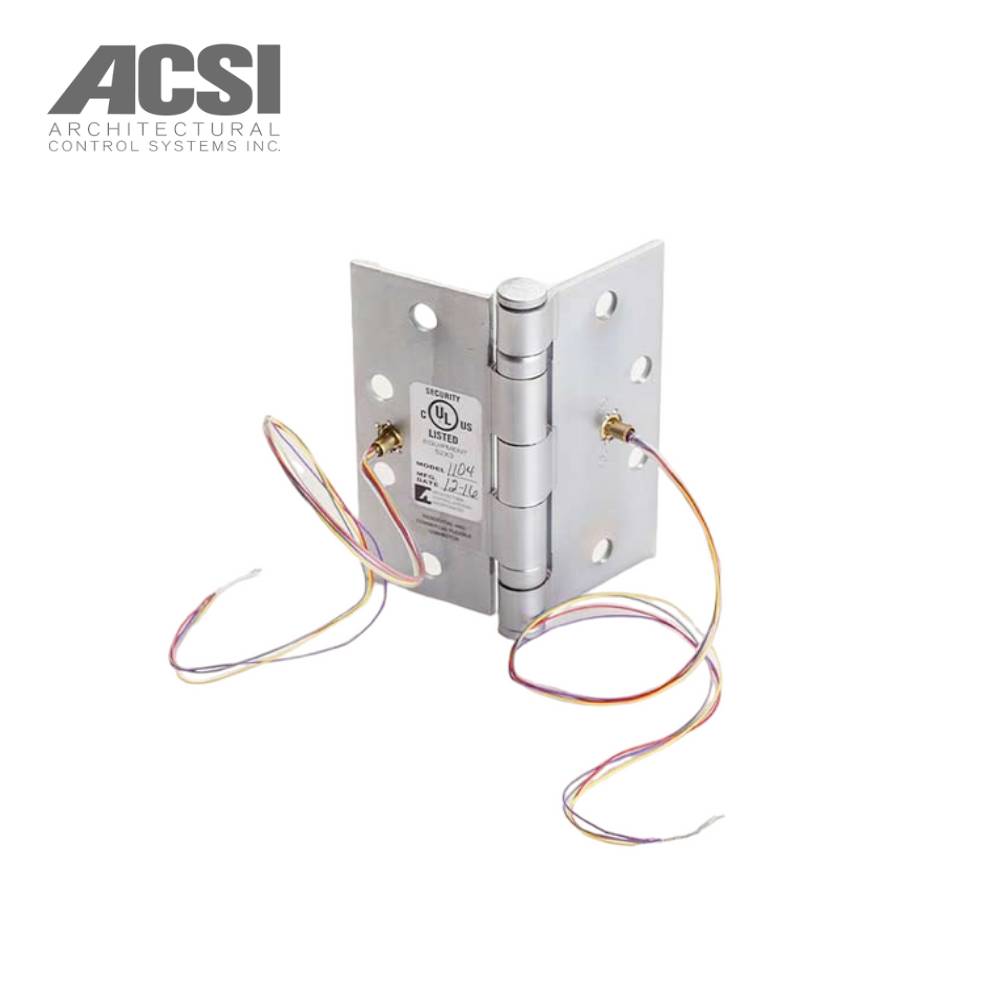

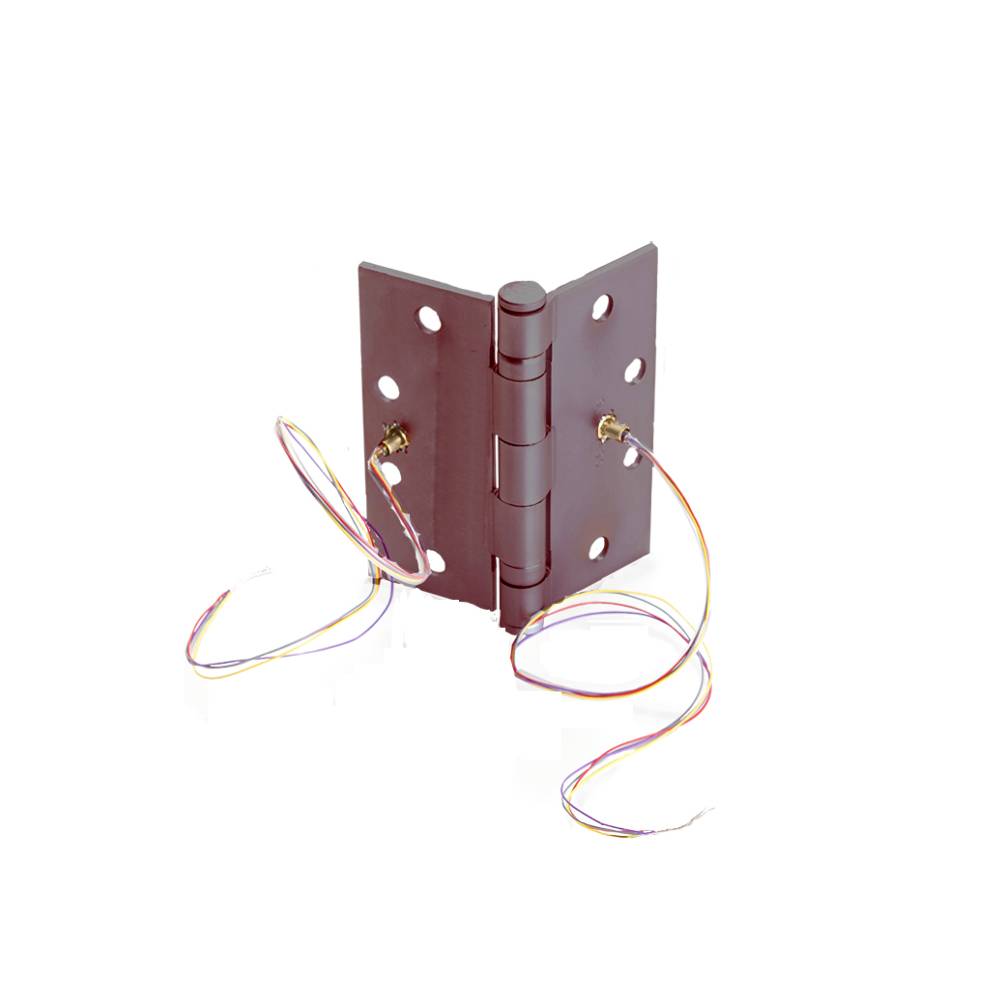

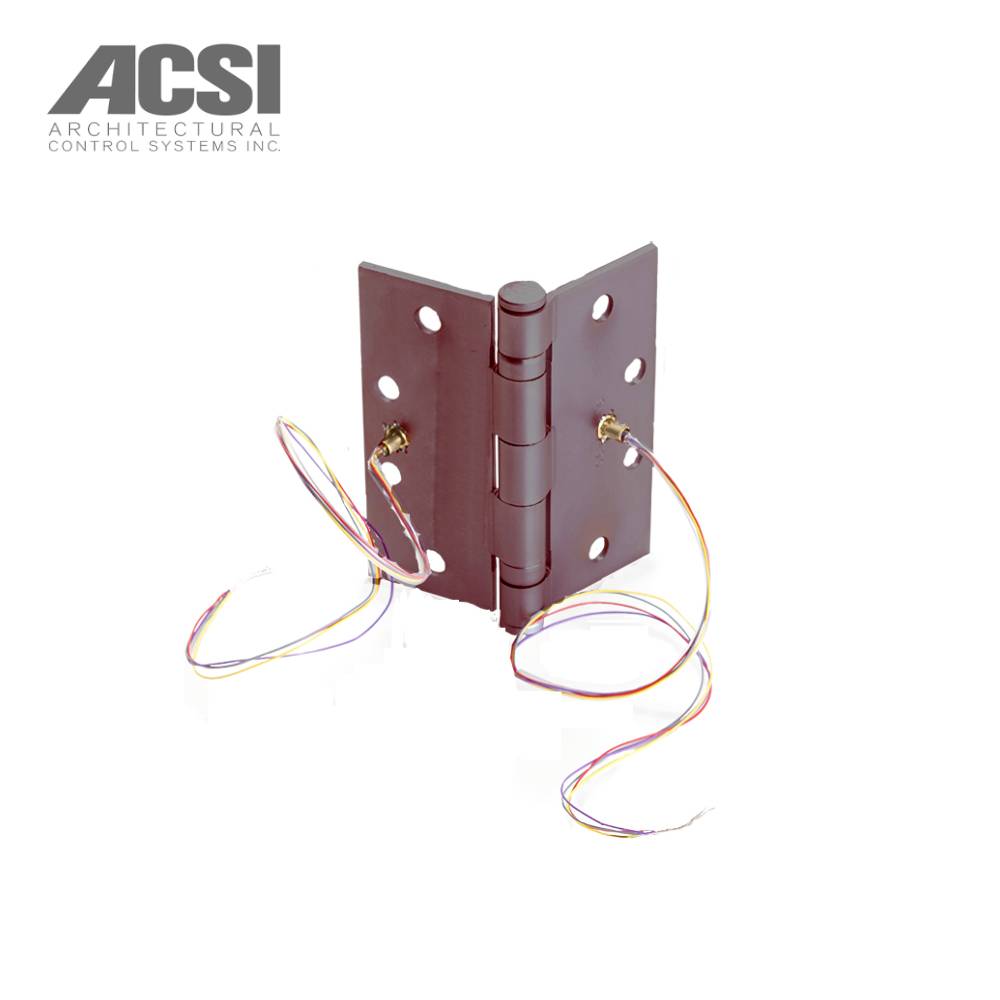

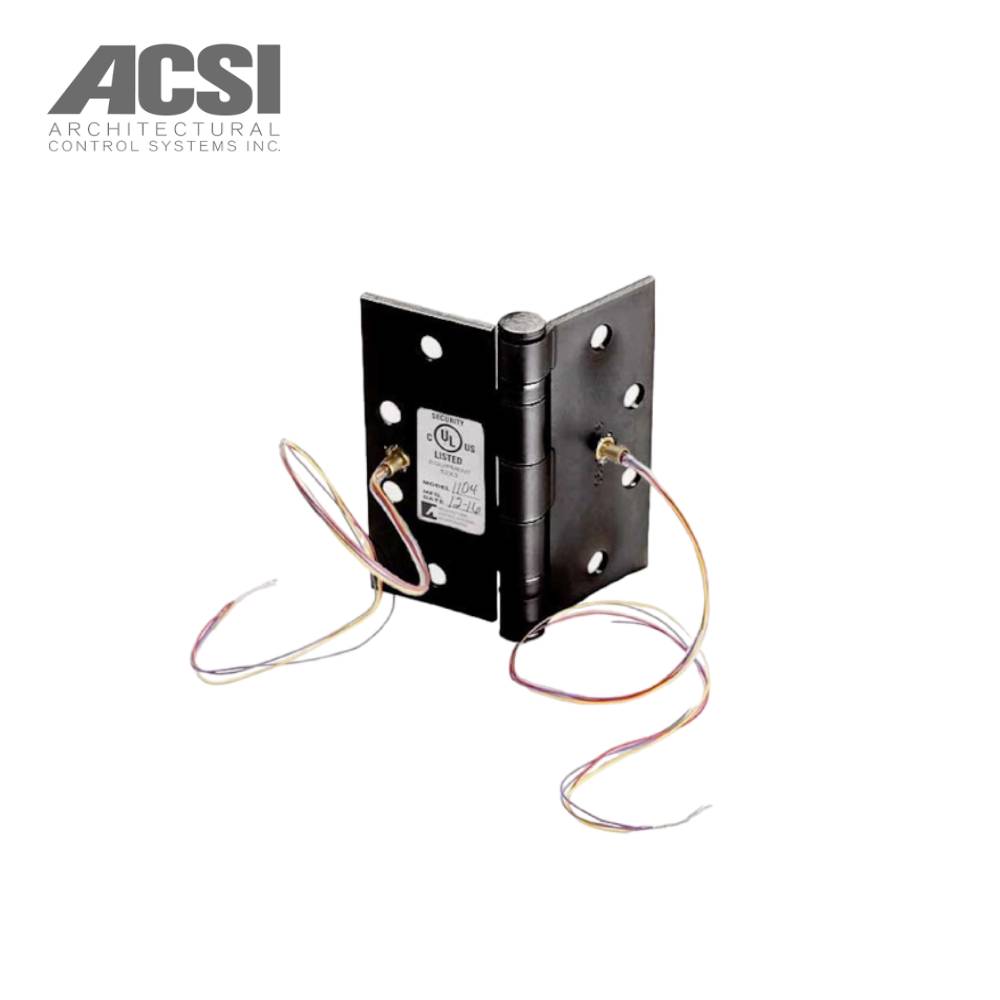

ACSI - 5BB1 - Ball Bearing Full Mortise Hinge 4-1/2" x 4-1/2" with Concealed Electric Through-Wire
5BB1 Ives 5 Knuckle Ball Bearing Full Mortise Hinge 4-1/2" x 4-1/2" with Concealed Electric Through-Wire. Ives 5 Knuckle Ball Bearing Full Mortise Hinge with Concealed Electric Through-Wire.
Buy the ACSI 5BB1 Ives 5 Knuckle Ball Bearing Full Mortise Hinge 4-1/2" x 4-1/2" with Concealed Electric Through-Wire for easy installation and dependable door hardware solution.
Feature:
- Function: Electric Hinge
- Hinge Type: BB-Ball Bearing
- ADA Compliant: No
- Included Components: Fasteners/Screws
- Product Material: Brass
- Standards: ANSI/BHMA A156.1: ANSI/BHMA 156.7: UL Listed
- Function Family: Hinge/Pivot
Specifications:
| Hinge Type | Hinge, Full Mortise |
| Mounting Style | Square |
| Knuckles | 5 |
| Bearing Type | Ball Bearing |
| Pin Type | Removable |
| Finish | 10A - Satin Bronze Blackened 613 - Oil Rubbed Bronze 26D - Satin Chrome |
| Tip Style | Standard |
| Height | 4-1/2" |
| Width | 4-1/2" |
| Number of Wires | 1104 - Concealed electric through-wire (4 wire, 26/28ga) 1108 - Concealed electric through-wire (8 wire, 26/28ga) |
| Product Type | Electronic Hinge/Pivot |
